Aerocool DUO12PRO Kit 3xFan 12cm ARGB LED Dual Ring Antivibration 6 Pins Black
- Access 16.8 million colors using compatible Addressable RGB motherboards

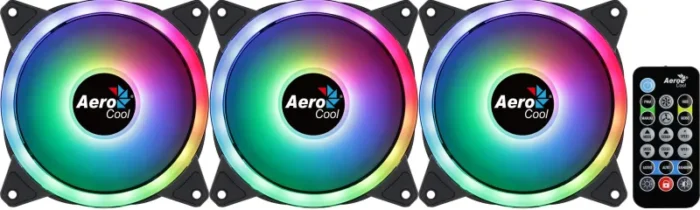

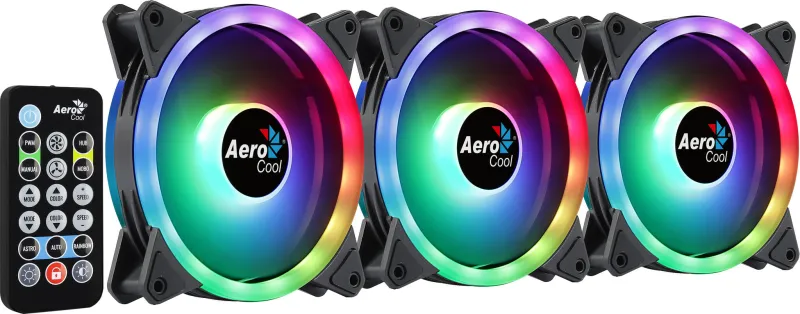

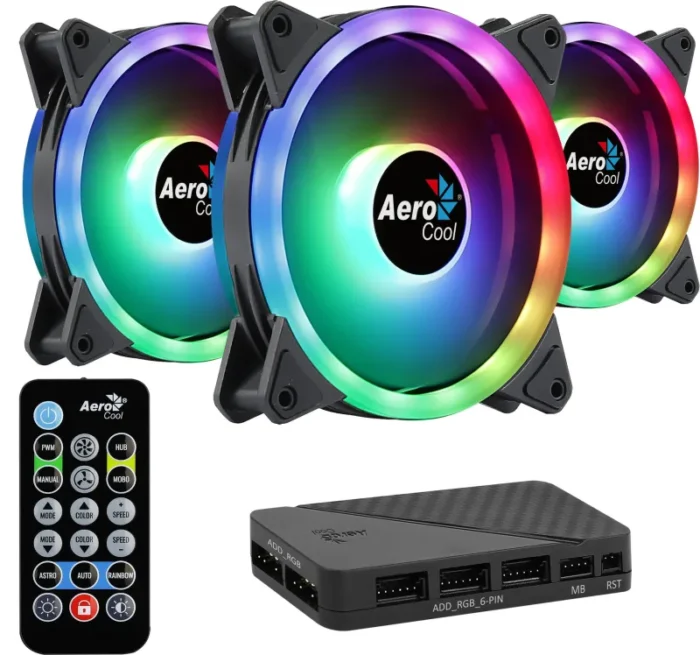

- Comes with 3 x Duo 12 fans, 1 x H66F RGB Control Hub, and 1 x Remote Control
- H66F hub allows you to connect up to six 6-Pin ARGB fans and up to two ARGB accessories with 5V ARGB connector
- Double Ring RGB LED Lighting design adds extra flair to your rig
- 28 LEDs ensure complete evenness and uniformity in color and brightness
120mm fan with 6-Pin connector featuring a stylish Double RGB LED Ring Lighting design. Access 16.8 million colors using compatible Addressable RGB motherboards including ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion. Comes equipped with three Duo 12 Addressable RGB fans, one H66F RGB Control Hub, and a remote control.
ADDRESSABLE RGB COMPATIBLE
Take full control of your Duo 12 Addressable RGB fans using any one of three ways:
– ADDRESSABLE RGB MOTHERBOARD
– LED CONTROL BUTTON
– RGB REMOTE CONTROL
H66F RGB CONTROL HUB
Features a 6-port hub with PWM control functions that allows you to connect up to six 6-Pin Addressable RGB fans and up to two Addressable RGB accessories with 5V ARGB connector.
Motherboard connector supports Addressable RGB motherboards (Asus Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion).
PWM CONTROL FUNCTIONS
H66F hub comes with PWM control functions for optimized fan speed to maximize cooling efficiency and minimize noise.
Please check if the 4-Pin fan header on your motherboard is PWM compatible.
– PWM based – PWM compatible
– Voltage based – not PWM compatible
ADDRESSABLE RGB RECEPTOR CABLE INCLUDED
Comes with a receptor cable to connect your hub with compatible Addressable RGB motherboards.
– ARGB MB Connector (For all other ARGB MBs such as ASUS, MSI, etc.)
– ARGB MB Connector (Gigabyte RGB Fusion)
– 4-Pin Hub Connector
– PWM 4-Pin Connector
POWER CABLE INCLUDED
Comes with a cable to power the hub.
– SATA Power Connector
– 4-Pin Hub Power Connector
DOUBLE RING RGB LED LIGHTING
Double RGB LED rings around the fan and circling the center of the fan to deliver a stylish and vibrant lighting experience while offering a truly unique way to keep your system cool, in more ways than one.
CURVED FAN BLADES
Curved fan blades effectively direct airflow to increase air pressure and reduce air resistance for maximum cooling performance.
ANTI-VIBRATION PADS
Anti-vibration pads absorb and dampen vibrations caused by fan rotation.
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 60000 h |
| Quantity per pack | 3 pc(s) |
| Bearing type | Hydraulic |
| Pulse-width modulation (PWM) support | No |
| Maximum air pressure | 1.29 mmH2O |
| Maximum airflow | 33.4 cfm |
| Noise level (high speed) | 19.7 dB |
| Rotational speed (max) | 1000 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 6-pin |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 3 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Rated current | 0.15 A |
| Starting voltage | 6 V |
| Rated voltage | 12 V |
| Power consumption (typical) | 1.8 W |
| Weight & dimensions | |
|---|---|
| Height | 25 mm |
| Depth | 120 mm |
| Width | 120 mm |
| Packaging content | |
|---|---|
| Number of screws | 12 |
| Screws included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
