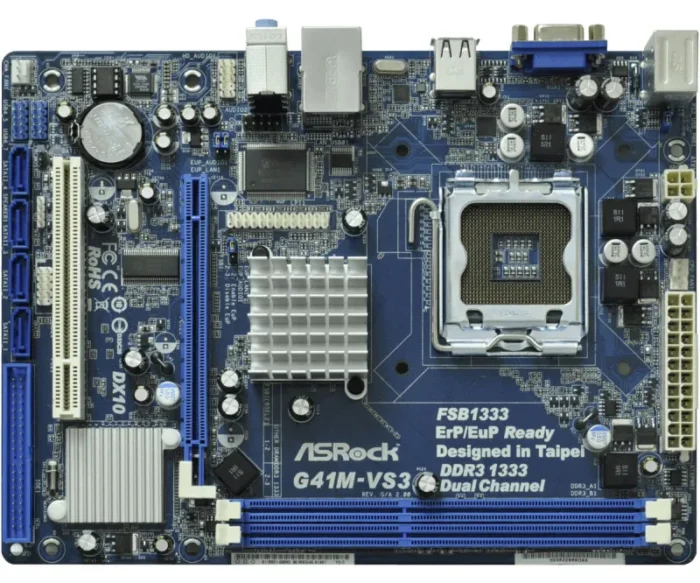

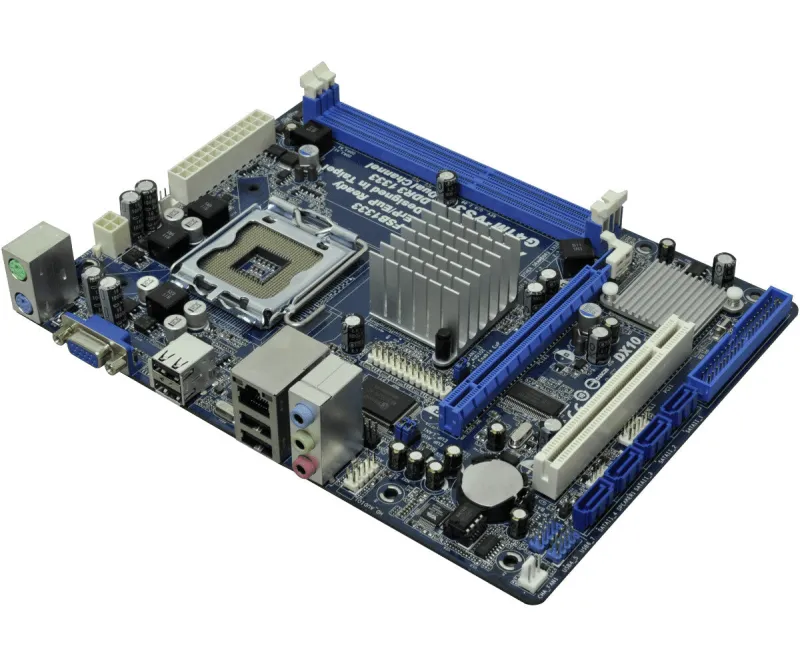

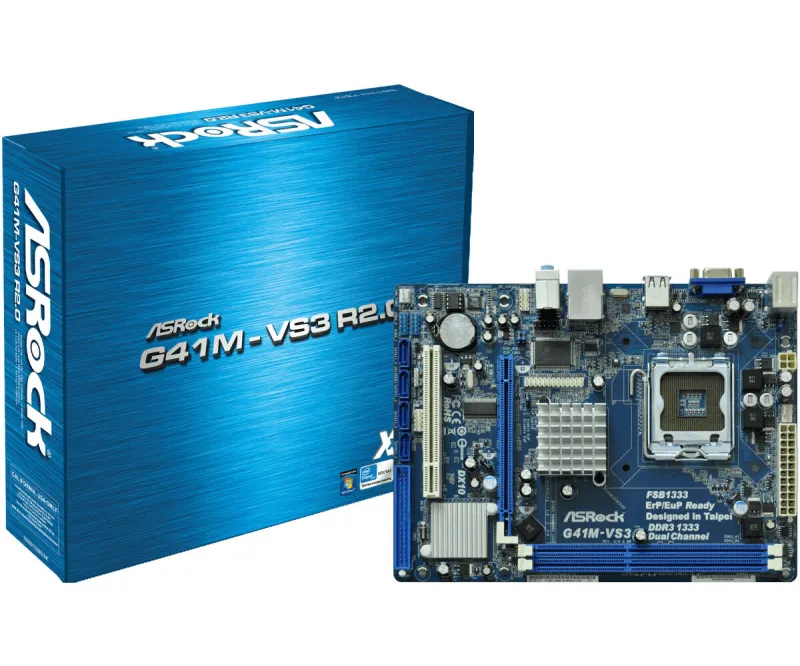

Asrock G41M-VS3 R2.0 Intel® G41 LGA 775 (Socket T) micro ATX
- Supports FSB1333/1066/800/533 MHz CPUs
- Supports Dual Channel DDR3 1333(OC)
- Intel® Graphics Media Accelerator X4500, Pixel Shader 4.0, DirectX 10, Max. shared memory 1759MB
- Supports ASRock XFast RAM, XFast LAN, XFast USB Technologies
- Supports Instant Boot, Instant Flash, OC DNA, OC Tuner, IES, APP Charger
- Free Bundle : CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar
What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
ASRock App Charger
Fast Charge & Charge Anytime
Simply installing the App Charger driver, it makes your iPhone charge up to 40% faster than before. ASRock App Charger supports continuous charging when your PC enters Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5). The App Charger technology has been fully applied on ASRock Full series motherboards.
Instant Boot
ASRock has overcome the technical obstacles and exclusively invented a new technology that allows you to turn on your PC and boot up to Windows® in 4 seconds! ASRock Instant Boot not only excels in the Boot Up speed (3~4 sec.), it also provides clean OS, and saves the most power energy.
Instant Flash
ASRock Instant Flash is an exclusive and the most user-friendly BIOS flash utility developed by ASRock. It is embedded in Flash ROM which is used to update the system BIOS without having to enter operating systems like MS-DOS or Windows.
Free Bundle – Cyberlink MediaEspresso 6.5 Trial
CyberLink MediaEspresso 6.5 trial now supports hardware transcoding and is optimized to accelerate conversion of all your favorite media files for your favorite portable players. Now you can easily display your favorite movies, songs and photos on iPhone, iPad, PSP, Xbox, Youtube, Facebook etc. Compile, convert and enjoy images and songs as much as you want and enhance your videos to new levels with TrueTheater Technology. Try it today!
Limitations:
30-day trial limitation
Convert videos to the H.264 format 50 times
Google Chrome Browser & Toolbar
Chrome is a fast, simple, and secure web browser, built for the modern web. Google Toolbar is designed to help you find what you’re looking for quickly and discover new things along the way. Now ASRock has both Chrome and Google Toolbar bundled with our motherboards so users may enjoy better internet surfing experiences.
Processor | |
---|---|
Processor system buses supported | 533,800,1066,1333 MHz |
Compatible processor series | Intel® Celeron®, Intel® Pentium® Dual-Core |
Processor socket | LGA 775 (Socket T) |
Processor manufacturer | Intel |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 8 GB |
Supported memory clock speeds | 800,1333,1600 MHz |
ECC сompatibility | Non-ECC |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 2 |
Supported memory types | DDR3-SDRAM |
Storage controllers | |
---|---|
Supported storage drive interfaces | SATA II |
Graphics | |
---|---|
DirectX version | 10.0 |
Maximum resolution | 2048 x 1536 pixels |
Graphics card | GMA X4500 |
On-board graphics card | Yes |
Maximum graphics card memory | 1759 MB |
Internal I/O | |
---|---|
Number of COM connectors | 1 |
Peripheral (Molex) power connectors (4-pin) | 1 |
Number of chassis fan connectors | 1 |
CPU fan connector | Yes |
Power fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel audio connector | Yes |
Number of SATA II connectors | 4 |
USB 2.0 connectors | 2 |
Rear panel I/O ports | |
---|---|
Microphone in | Yes |
Headphone outputs | 1 |
VGA (D-Sub) ports quantity | 1 |
PS/2 ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
USB 2.0 ports quantity | 4 |
Network | |
---|---|
Bluetooth | No |
Wi-Fi | No |
Wake-on-LAN ready | Yes |
LAN controller | Atheros AR8152 |
Ethernet LAN | Yes |
Features | |
---|---|
Certification | FCC, CE, WHQL, ErP/EuP |
Windows operating systems supported | Yes |
Power source type | ATX |
Audio output channels | 5.1 channels |
Audio chip | Realtek ALC662 |
Motherboard southbridge | Intel ICH7 |
Motherboard chipset | Intel® G41 |
Motherboard chipset family | Intel |
Motherboard form factor | micro ATX |
Component for | PC |
Expansion slots | |
---|---|
PCI slots | 1 |
PCI Express x16 slots | 1 |
BIOS | |
---|---|
ACPI version | 1.1 |
BIOS memory size | 64 Mbit |
BIOS type | AMI |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Weight & dimensions | |
---|---|
Depth | 170 mm |
Width | 226 mm |
Packaging content | |
---|---|
Drivers included | Yes |
Cables included | SATA |
Other features | |
---|---|
Quick installation guide | Yes |
