ASUS ExpertCenter PN42-BBN100MV Mini PC Black N100
- Mini PC Black
- Built-in processor Intel N100
- HDD & SSD 2.5,M.2
- On-board graphics card Intel® UHD Graphics
- Ethernet LAN Wi-Fi
Ultra-compact fanless mini PC with Intel® processor N100 & N200 and Intel® UHD Graphics, supports triple displays or dual 4K displays, 1x PCIe® Gen3 x4 M.2 NVMe® SSD, dual 2.5 Gb LAN, WiFi 6E

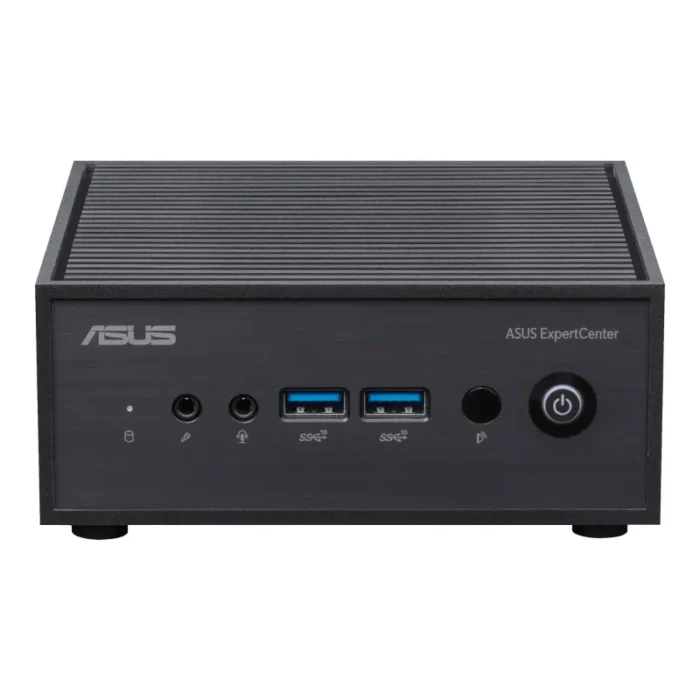

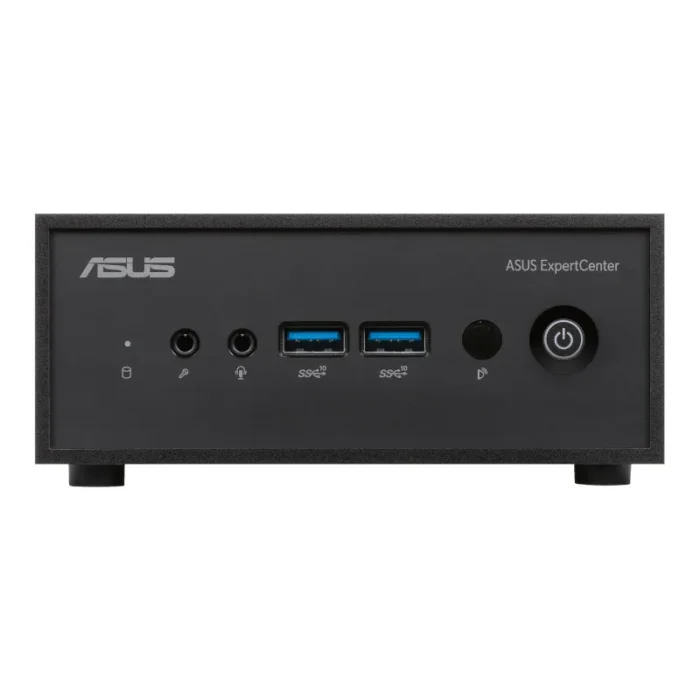

ASUS ExpertCenter PN42 Mini PC
Compact and Quiet for Business Everywhere
The ultracompact ASUS ExpertCenter PN42 mini PC is powered by an Intel® processor N100 & N200 with Intel UHD Graphics and is designed to easily handle a wide variety of home and business applications. ExpertCenter PN42 can support up to three displays, or two 4K displays, simultaneously for efficient multitasking. Plus, it can be specified with up to two 2.5 Gb Ethernet ports, and offers wide- ranging connectivity with up to seven USB ports plus an additional configurable port for either DisplayPortTM 1.4, VGA, COM, HDMI®, or USB-C® DisplayPort (DP Alt Mode) options. The diminutive size of ExpertCenter PN42 makes it well-suited for spaces where traditional PCs won’t fit – from digital signage to small home-office setups.
Compact Size and Aesthetic
ASUS ExpertCenter PN42 is smaller than traditional desktop, and the size of it is similar to phone.
The compact size of PN42 save your workspace which can be particularly useful in smaller workspaces or areas where space is limited. The compact size of a Mini PC also makes it easier to transport. This can be useful if you need to move it between different workspaces.

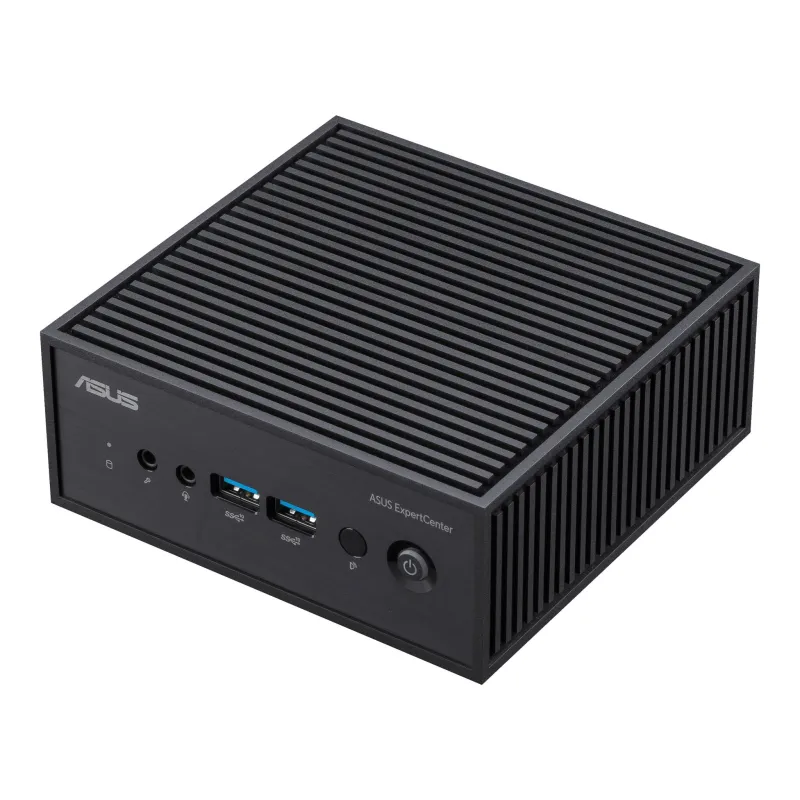

Fanless Chassis
The fanless design of ExpertCenter PN42 runs almost silently and helps reduce dust ingress into the heatsink, making it perfect for industrial use. The elegant ribbed, vented design of the chassis enhances cooling, and a dedicated heatsink helps cool the SSD and WiFi module. The robust build quality of PN42 ensures durability and reliability, making it an excellent computing platform even in the most demanding of environments.
Ultrafast WiFi 6 / WiFi 6E
The WiFi 6 module in ExpertCenter PN42 facilitates seamless streaming of high-res videos, fewer connection drops, and multiple connections without impeding network speeds. WiFi 6E is an extended version of WiFi 6 that supports the 6 GHz band to allow more devices to connect simultaneously, without congestion or interference. WiFi 6E also offers improved security to guard against unauthorized access and malware attacks.
Crystal-Clear Communication
The AI noise-cancelation feature leverages artificial intelligence to eliminate background noise for both input and output audio to ensure crystal-clear communication, even in noisy environments. ExpertCenter PN42 supports popular communication platforms including Microsoft Teams, Skype, Slack, and Zoom.
RGB Power Button
The RGB power button acts as a visual indicator for system status and flashes when boot-up issues are encountered.
Comprehensive Connectivity
PN42 has seven USB Type-A to connect lots of device and supports dual 2.5G LAN to distinguish between two internal networks. To mention configurable port, it comes with DP, HDMI, Type-C with DP, COM, or VGA*, for monitor or legacy devices, like barcode scanners and receipt printers. PN42 Series can fit a wide-range of usages, including Signage, Point-Of-Sale system, KIOSK and intelligent vending machine.
Remote Control
HDMI-CEC (HDMI Consumer Electronics Control) is a common HDMI feature found in many TVs and media devices. Its primary purpose is to enable a single remote control or device to control multiple devices in a multimedia setup.
ASUS Control Center
ASUS Control Center is a centralized IT-management suite that enhances enterprise productivity with comprehensive control through a very friendly user interface. ASUS Control Center provides high visibility and the best IT-management experiences across ASUS enterprise and commercial products.
– Hardware & SoftwareMonitoring
Monitor system temperature, fan, voltage and hardware status
– RemoteManagement
Remote desktop, power control, BIOS settings and updates
– Asset Management
Software dispatch and device-metadata management
– Mobile Control
Stay in command via a smart device
– Security
Enable/disable USB storage
ASUS Corporate Stable Model
The ASUS Corporate Stable Model (CSM) program is designed to support your organization with Mini PCs with the latest technologies, services and management software. Since its introduction over two decades ago, thousands of customers and providers have joined the ASUS CSM partner network to make it one of the most established Commercial programs in the world. Add to that premium after-sales service and support, we’re more than ready to help your business plan ahead for product transitions.
24/7 Reliability
With thorough 24/7 testing and stable supply, Mini PC is designed for modern office and business use, reducing maintenance cost and improve cost effectiveness.
Barebone Option
There is a barebones option for PN42, which is easy to upgrade. This version does not include memory, storage, or a Wi-Fi card. The chassis can be easily separated without any cables connecting the bottom cover and top chassis. Additionally, we provide a manual that outlines the steps to upgrade it yourself.
MyASUS
MyASUS is the portal of ASUS PC software service, which provides you easy access to all the ASUS software functions, for example, to maintain or update your system, optimize your PC’s performance, and quickly contact ASUS aftersales customer service.
| Processor | |
|---|---|
| Processor cache | 6 MB |
| Processor boost frequency | 3.4 GHz |
| Processor cores | 4 |
| Processor model | N100 |
| Processor family | Intel® N |
| Processor manufacturer | Intel |
| Built-in processor | Yes |
| Storage | |
|---|---|
| NVMe | Yes |
| SSD form factor | M.2 |
| Storage drive sizes supported | 2.5,M.2 |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| On-board graphics card model | Intel® UHD Graphics |
| Graphics card family | Intel |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Network | |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| LAN controller | Realtek RTL8125B-CG |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Consumer infrared headers | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI version | 2.0b |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 3 |
| Design | |
|---|---|
| Product type | Mini PC |
| On/off switch | Yes |
| Product colour | Black |
| Chassis type | Mini PC |
| General | |
|---|---|
| Product family | ExpertCenter |
| Power | |
|---|---|
| AC adapter output current | 3.42 A |
| Power supply | 65 W |
| Power supply type | External AC adapter |
| Weight & dimensions | |
|---|---|
| Package weight | 1.62 kg |
| Package height | 68 mm |
| Package depth | 175 mm |
| Package width | 286 mm |
| Weight | 840 g |
| Height | 57.6 mm |
| Depth | 132 mm |
| Width | 127.5 mm |
