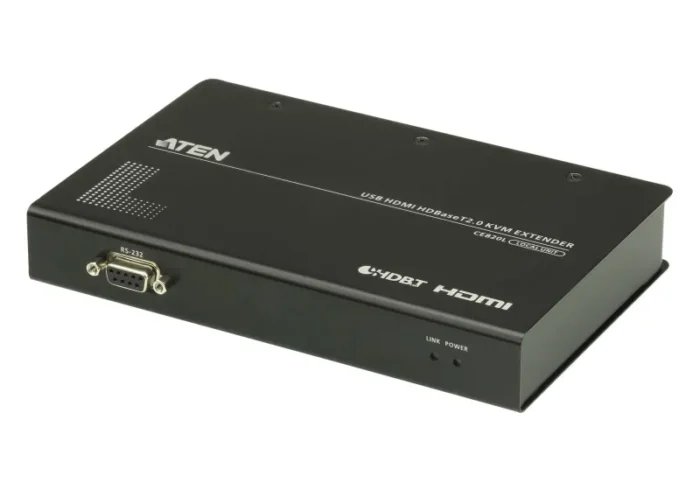

ATEN CE820L-ATA-G KVM extender
- Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6 / 6a cable / 2L-2910 Cat 6 cable
- HDMI (3D, Deep Color, 1080P, 4K); HDCP 2.2 Compatible
- Long distance with superior video quality : (Standard mode up to 4K @ 100 m (Cat 6 / 6a) ; Long-Reach mode up to 1080P @ 150 m)
- Supports individual 2-channel stereo audio and USB 2.0 full speed ports
The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
| Features |
| LED indicators |
Yes |
| Plug and Play |
Yes |
| Material |
Metal |
| Product colour |
Black |
| Supported resolutions |
4096 x 21603840 x 2160 |
| Maximum refresh rate |
30 Hz |
| Maximum digital resolution |
4096 x 2160 pixels |
| Maximum transfer distance |
100 m |
| Connectivity technology |
Wired |
| Ports & interfaces |
| PC Audio out |
Yes |
| PC Audio in |
Yes |
| RS-232 ports |
1 |
| USB port type |
USB Type-B |
| Power |
| AC adapter output voltage |
5 V |
| Weight & dimensions |
| Receiver weight |
630 g |
| Receiver height |
2.87 cm |
| Receiver depth |
18.2 cm |
| Receiver width |
12.2 cm |
| Packaging content |
| Manual |
Yes |
| AC adapter included |
Yes |
| Operational conditions |
| Storage relative humidity (H-H) |
0 – 80% |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Technical details |
| Dimensions (WxDxH) |
121.9 x 182 x 28.7 mm |
| Maximum resolution |
4096 x 2160 pixels |
| Weight |
630 g |
