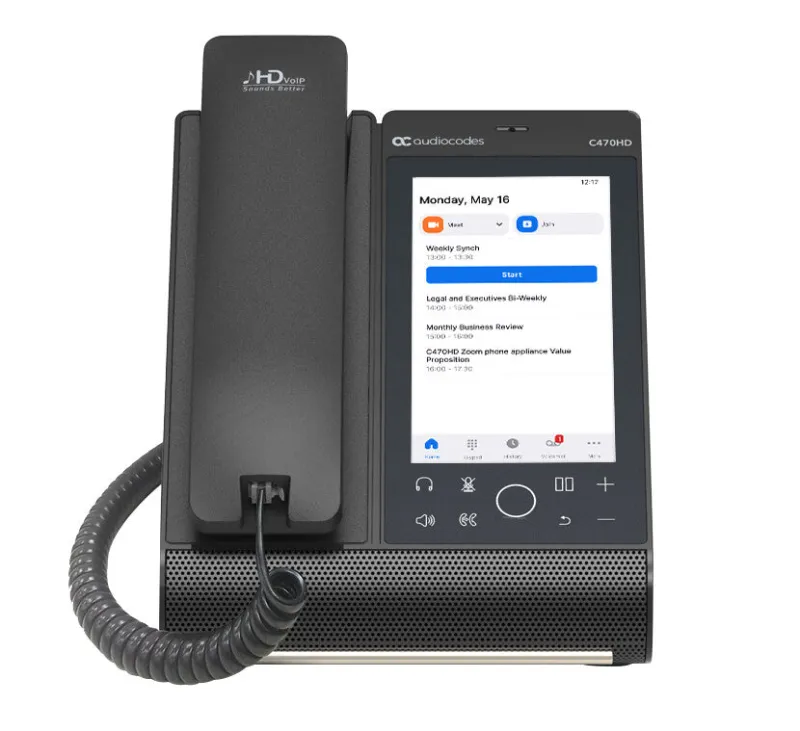

AudioCodes RXVCAM10-B17 IP phone Black TFT
- Includes a C70HD phone so additional speakers are not needed for individual workspaces
- Plug and play connectivity with the camera and bluetooth or USB connectivity for the C470HD speakerphone
- Perfect for use in huddle rooms or individual workspace
- RXVCam10 Works in all lighting conditions, from direct sunlight to low light
- Supports 1080p Full HD video at 30fps
- C470HS is available for Microsoft Teams or Zoom Phone platform

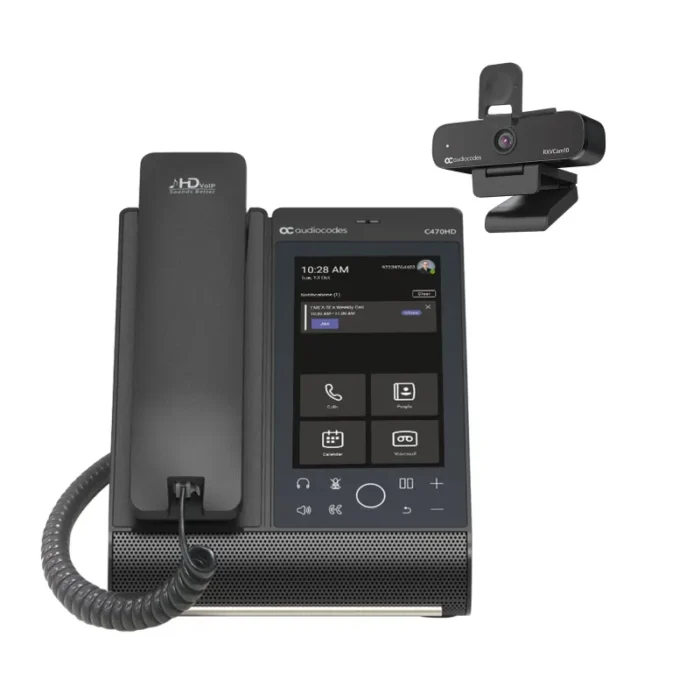

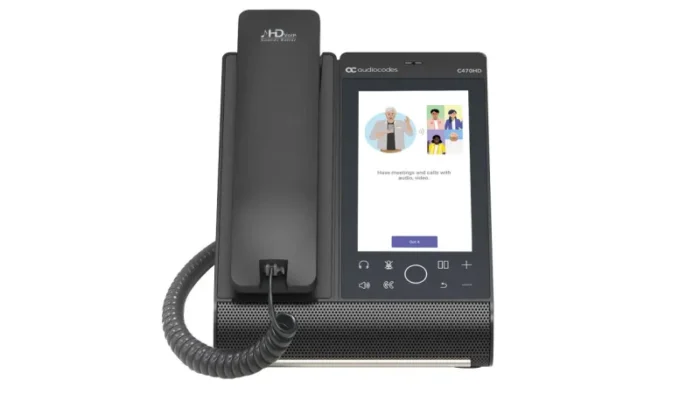

The RXVCam10-B17 is the ideal bundle for the remote worker,personal office worker, or huddle room setup. The bundle includes the RXVCam10 HD Camera with the C470HD touchscreen phone.The RXVCam10 is certified for use with Microsoft Teams, and is compatible with all unified communication platforms including Zoom. The RXVCam10 mounts easily on a laptop or monitor and has USB plug and play functionality. The C470HD phone can be used on Teams or Zoom phone platforms and allows you to use it for meetings as well as traditional phone functions. It can be connected easily via Wifi and offers speakerphone functionality for hands free work and can connect to headphones via USB or Bluetooth.
| Design | |
|---|---|
| Wall mountable | No |
| Mounting | Desk |
| Product colour | Black |
| Handset type | Wired handset |
| Product type | IP Phone |
| Performance | |
|---|---|
| Operating system version | 9.0 |
| Operating system installed | Android |
| Phone features | |
|---|---|
| Full duplex | Yes |
| Management features | |
|---|---|
| Firmware upgradeable | Yes |
| Display | |
|---|---|
| Touchscreen | Yes |
| Display resolution | 720 x 1280 pixels |
| Display diagonal | 14 cm (5.5″) |
| Display | TFT |
| Camera | |
|---|---|
| Camera privacy shutter | Yes |
| Vertical field of view | 52° |
| Horizontal field of view | 85° |
| Front camera resolution (numeric) | 2 MP |
| Front camera | Yes |
| Audio | |
|---|---|
| Voice activity detection | Yes |
| Adaptive jitter buffers | Yes |
| Comfort noise generation (CNG) | Yes |
| Echo cancellation | Yes |
| Packet loss concealment (PLC) | Yes |
| Voice codecs | G.711, G.722, G.729, Silk |
| Speakerphone | Yes |
| Network | |
|---|---|
| Networking standards | IEEE 802.3af |
| Security algorithms | 802.1x RADIUS, HTTPS, TLS |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| WAN connection type | RJ-45 |
| Cable lock slot | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-9 ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Certificates | |
|---|---|
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Power | |
|---|---|
| AC adapter output current | 2 A |
| AC adapter output voltage | 12 V |
| AC adapter input voltage | 100 – 240 V |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 70 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 1.74 kg |
| Package height | 174 mm |
| Package depth | 275 mm |
| Package width | 238 mm |
| Weight | 1.2 kg |
| Height | 230 mm |
| Depth | 165 mm |
| Width | 180 mm |
| Packaging content | |
|---|---|
| Number of handles included | 1 pc(s) |
| Handset | Yes |
| Cables included | LAN (RJ-45) |
| Base station | Yes |
| Logistics data | |
|---|---|
| Master (outer) case length | 540 mm |
| Master (outer) case width | 490 mm |
| Master (outer) case height | 308 mm |
| Master (outer) case net weight | 12.3 kg |
