Home Network Video Recorders (NVR) Axis S3016 1U Black
Sharp R372SLM 25L Microwave - Silver £105.99 Original price was: £105.99.£35.00Current price is: £35.00.
Back to products
Thetford Bathroom Cleaner £12.99 Original price was: £12.99.£4.19Current price is: £4.19.

Axis S3016 1U Black

£251.99 Original price was: £251.99.£83.99Current price is: £83.99.

Compare
Add to wishlist
SKU: US-15330053128574 Category: Network Video Recorders (NVR)
Share:
  • Description
  • Shipping & Delivery
Description

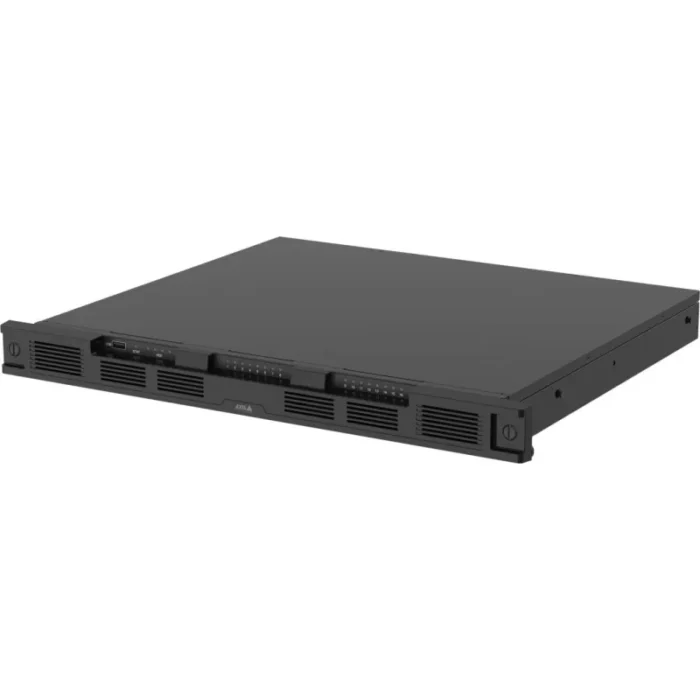

Axis S3016 1U Black

  • 1U rack recorder with 16-port PoE switch
  • Up to PoE class 4 per port
  • Easy to install and operate
  • Flexible storage options including RAID

Reliable with RAID and secure with TPM

AXIS S3016 provides reliable recording thanks to the four surveillance-grade hard drives and different RAID levels. This high-performance recorder offers a gigabit switch for connecting network devices and a 2.5 gigabit uplink for video recordings in ultra-high definition. Thanks to the Trusted Platform Module 2.0, the recordings are encrypted, and you can be sure your data is protected. You can access your footage from anywhere using Axis Secure Remote Access, to fulfil high cybersecurity requirements.

Unbeatable Axis quality for the wide Axis portfolio

AXIS S3016 is extensively tested with our wide range of quality products to provide you with an affordable, end-to-end solution with unbeatable reliability. For instance, it’s possible to utilize network speakers to communicate with staff and deter intruders or network video door stations for audiovisual identification and remote entry control. All hardware components, including the PoE switch and surveillance-grade hard drives, are validated to meet the demands for reliable ultra-high definition surveillance. This easy-to-install solution provides you with everything you need to help ensure every installation is trouble-free.

Easy to use surveillance solution with AXIS Companion

AXIS S3016 together with AXIS Companion VMS connects and power up to sixteen devices and can be up and running with just a few clicks. AXIS Companion is an easy to use video management software. It offers video management and integrates with Axis cameras, intercoms and audio products. The solution can easily be scaled up from providing surveillance for a single site, to provide surveillance for multiple sites and whole national chains.

Easy to expand or scale your AXIS Camera Station system

A solution with AXIS S3016 is easily adapted to your business, and seamlessly expands as your needs grow. You can add additional recorders and other Axis devices to your existing AXIS Camera Station installation in a cost-efficient way. AXIS S3016 adds network ports, PoE and storage to your system without increasing load or maintenance on the server, while preserving the desired retention time. It can also scale multi-site AXIS Camera Station systems in a distributed storage setup without affecting other equipment and keeping the central management point for easy maintenance and

Performance
Video formats supported AVC, H.264, H.265, HEVC, MPEG4
Audio formats supported AAC
Video input channels 16 channels
Hard drive
RAID levels 0, 1, 5, 6, 10
RAID support Yes
Maximum storage capacity 16 TB
Total installed storage capacity 16 TB
Number of HDDs supported 4
HDD capacity 4 TB
Number of HDDs installed 4
Ports & interfaces
Supported network protocols IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , SFTP, SMTP, mDNS (Bonjour), UPnP , DNS/DNSv6, NTP, NTS, RTSP, TCP, UDP, IGMPv1/v2/v3, ICMP, DHCPv4/v6, ARP, SSH, LLDP, IEEE 802.1X (EAP-TLS), IEEE 802.1AR
Networking standards IEEE 802.3at
Fiber ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
USB 2.0 ports quantity 1
Power over Ethernet (PoE) ports quantity 16
Power over Ethernet (PoE) Yes
Ethernet LAN (RJ-45) ports 18
Features
Certification UL/cUL, CE, VCCI, NOM, RCM, TAA, 55035, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, RCM AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, FCC Part 15 Subpart B Class A, CNS 15936, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1 ed. 3, RCM AS/NZS 62368.1:2018, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP20, NIST SP500-267
LED indicators Yes
Product colour Black
Brand compatibility Axis
Rack capacity 1U
Rack mounting Yes
Processor
Built-in processor Yes
Power
Total Power over Ethernet (PoE) budget 305 W
AC input frequency 50/60 Hz
AC input voltage 100-240 V
Power consumption (typical) 34 W
Power consumption (max) 41 W
Operational conditions
Storage relative humidity (H-H) 5 – 90%
Storage temperature (T-T) -20 – 65 °C
Operating relative humidity (H-H) 10 – 85%
Operating temperature (T-T) 0 – 45 °C
Technical details
Compliance certificates REACH, RoHS
Doesn’t contain PVC
Weight & dimensions
Weight 10.1 kg
Height 44.1 mm
Depth 402 mm
Width 484 mm
Packaging content
Cables included AC
Quick installation guide Yes
  • manual pdf
  • leaflet
