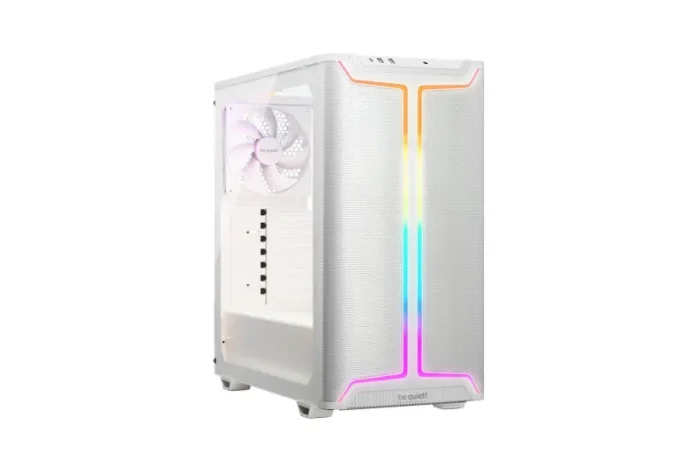

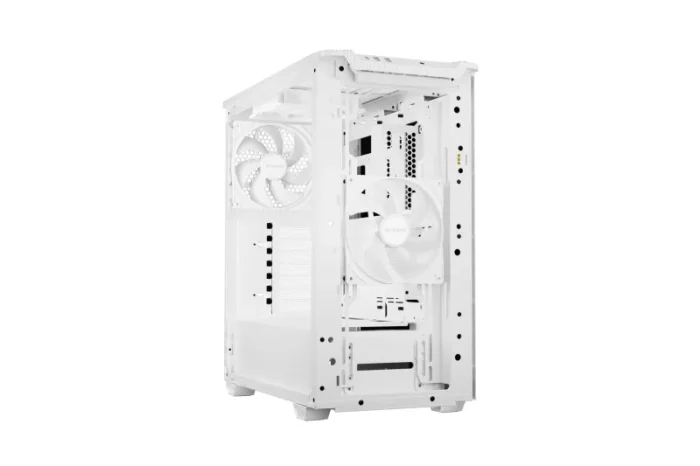

be quiet! Pure Base 501 DX White Midi Tower
- High airflow intake front panel and top cover for maximum performance
- 3 preinstalled Pure Wings 3 140mm PWM White fans for extraordinary air pressure
- Dynamic case front design with elegant ARGB lighting inside and outside of the case
- ARGB controller with motherboard sync option
- Generous space for high-end graphics cards and large coolers, despite compact footprint
- Optional vertical graphics card installation
- Water cooling ready for radiators up to 360mm
- USB 3.2 Gen. 2 Type C for best connectivity
- Comfortable cable management thanks to a clever and space-optimized cable routing design
- Side panel made of tempered glass
- Support for two 3.5″ or five 2.5″ drives
- Product conception, design and quality control in Germany
Impressive lighting and airflow
Pure Base 501 DX White is an impressively illuminated be quiet! ATX case with compact dimensions and high airflow for any application. Elevate your system with the elegant ARGB lighting and relish the show.
| Design |
| Maximum PSU length |
20 cm |
| Maximum graphics card length |
36.8 cm |
| Anti-dust filter |
Yes |
| Illumination location |
Front |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Side window |
Yes |
| Number of expansion slots |
7 |
| Number of 2.5″ bays |
5 |
| Number of 3.5″ bays |
2 |
| Supported motherboard form factors |
ATX, micro ATX, Mini-ATX |
| Product colour |
White |
| Material |
Acrylonitrile butadiene styrene (ABS), Glass, Steel |
| Type |
PC |
| Form factor |
Midi Tower |
| Power supply |
| Supported power supply form factors |
ATX, PS2 |
| Power supply included |
No |
| Ports & interfaces |
| Audio output |
Yes |
| Audio input |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| Cooling |
| Pulse-width modulation (PWM) support |
Yes |
| Top radiator sizes supported |
120,240 mm |
| Rear radiator sizes supported |
120,140 mm |
| Front radiator sizes supported |
120,140,240,280,360 mm |
| Liquid cooling capability |
Yes |
| Maximum airflow |
57.4 cfm |
| Noise level (high speed) |
21.9 dB |
| Fan rated current |
0.06 A |
| Fan power consumption |
3.6 W |
| Maximum air pressure |
0.96 mmH2O |
| Fan rated voltage |
5 – 13.2 V |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
2 |
| Top fans installed |
1x 140 mm |
| Rear fans diameters supported |
120,140 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans installed |
1x 140 mm |
| Front fans diameters supported |
120,140 mm |
| Number of front fans supported (max) |
3 |
| Front fans installed |
1x 140 mm |
| Storage |
| Supported HDD sizes |
2.5,3.5″ |
| Technical details |
| Sustainability certificates |
Triman |
| Warranty period |
3 year(s) |
| Compliance certificates |
CE, RoHS, UKCA, WEEE |
| Weight & dimensions |
| Weight |
7.9 kg |
| Height |
463 mm |
| Depth |
450 mm |
| Width |
231 mm |
| Packaging data |
| Package weight |
9.2 kg |
| Package height |
503 mm |
| Package depth |
518 mm |
| Package width |
292 mm |
| Other features |
| Fan connector |
4-pin |
| Volume |
24.4 L |
