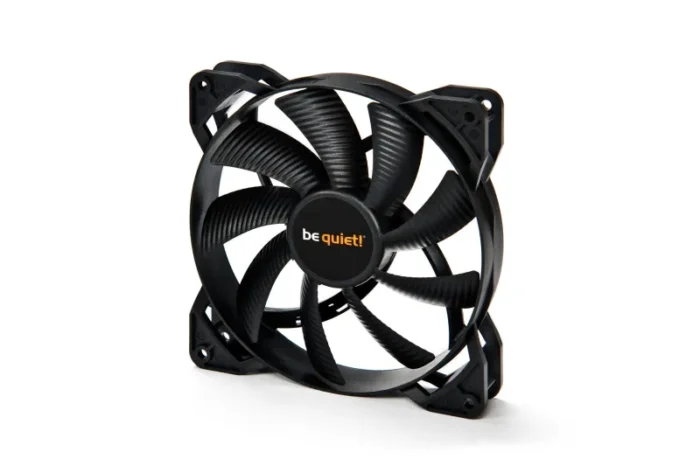

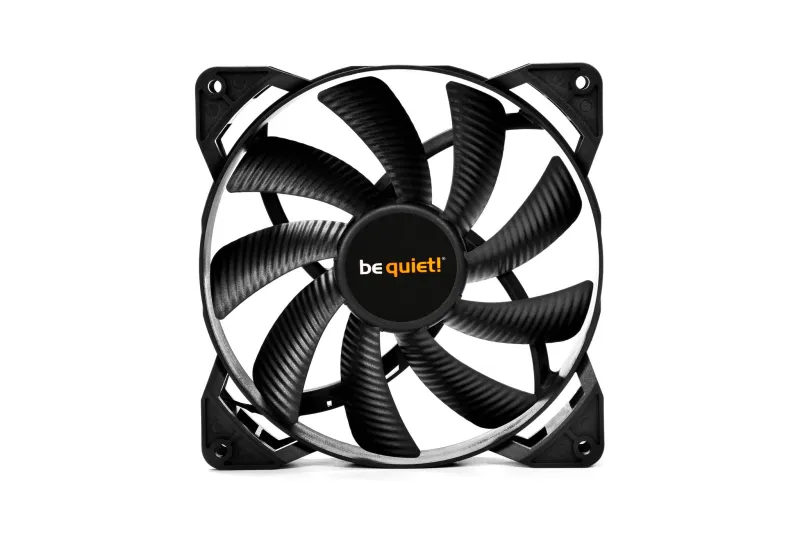

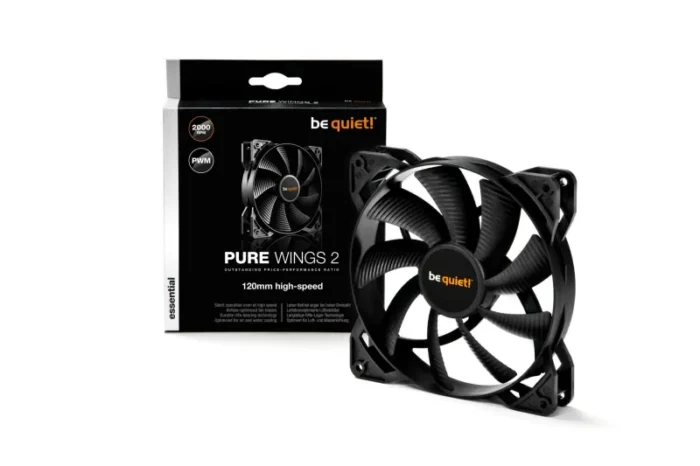

be quiet! Pure Wings 2 120mm PWM high-speed Computer case Fan 12 cm Black
- Nine airflow-optimized fan blades that reduce noise-generating turbulence while increasing airflow
- A long-life rifle bearing that contributes to an operating lifetime of 80,000 hours
- Even at maximum speed, operates at only 36.9 dB(A)
- A fan speed of 2,000 rpm for extremely high air pressure
- Especially recommended for use in water cooling and CPU cooling builds
- PWM controlled fan speed through the motherboard
- Product conception, design and quality control in Germany
Outstanding price-performance ratio
The Pure Wings 2 120mm PWM high-speed fan brings exceptional be quiet! cooling to entry level computing. The extremely high air pressure makes it a perfect choice for powerful water- and air-cooled systems.
Pure Wings 2 high-speed fans offer outstanding reliability and solid cooling for a great price-performance ratio.
| Performance |
| Bearing type |
Rifle bearing |
| Pulse-width modulation (PWM) support |
Yes |
| Maximum air pressure |
2.23 mmH2O |
| Airflow |
111.3 m³/h |
| Maximum airflow |
65.51 cfm |
| Noise level (high speed) |
36.9 dB |
| Rotational speed (max) |
2000 RPM |
| Compatible processor series |
Not supported |
| Supported processor sockets |
Not supported |
| Fan diameter |
12 cm |
| Type |
Fan |
| Suitable location |
Computer case |
| Design |
| Certification |
CE, TÜV, UL |
| Fan connector |
4-pin |
| Number of fan blades |
9 |
| Number of fans |
1 fan(s) |
| Product colour |
Black |
| Power |
| Safety current |
0.3 Ah |
| Rated current |
0.18 A |
| Rated voltage |
12 V |
| Voltage |
5 – 12 V |
| Power supply |
3.6 W |
| Weight & dimensions |
| Package weight |
158 g |
| Package height |
28 mm |
| Package depth |
155 mm |
| Package width |
120 mm |
| Cable length |
0.46 m |
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Weight |
130 g |
| Packaging content |
| Number of screws |
4 |
| Screws included |
Yes |
| Other features |
| Country of origin |
China |
| Logistics data |
| Products per master (outer) case |
60 pc(s) |
| Master (outer) case gross weight |
10.2 kg |
| Master (outer) case height |
290 mm |
| Master (outer) case length |
410 mm |
| Master (outer) case width |
320 mm |
| Harmonized System (HS) code |
84733080 |
