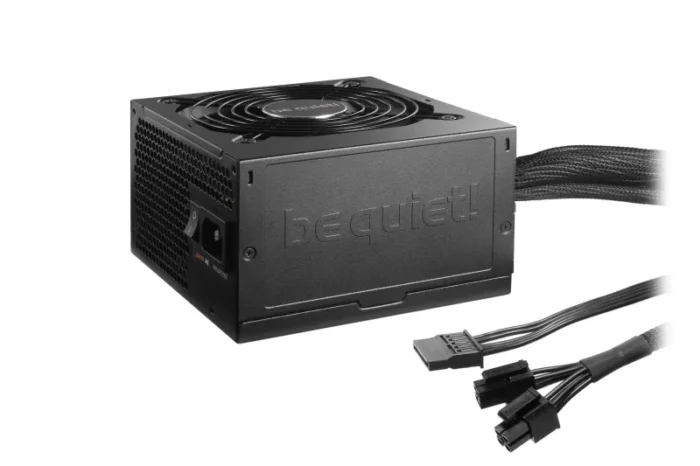

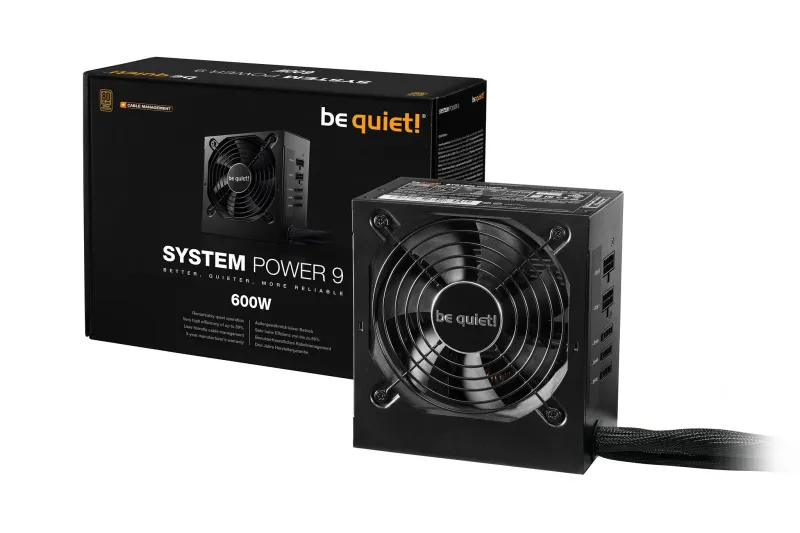

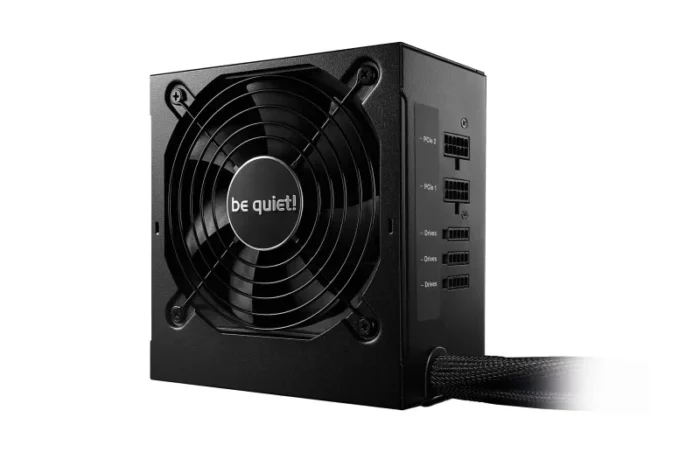

be quiet! System Power 9 | 600W CM
- Rock-solid stability with two strong 12V-rails
- Equipped with DC-to-DC technology for tight voltage regulation
- Four PCIe connectors for multi-GPU system configurations
- Temperature-controlled 120mm fan reduces system noise
- Low stand-by drain of less than 0.15 watts
- 80 PLUS® Bronze efficiency of up to 89%
- Semi-modular, high-quality sleeved and flat cables
- All-in-one cable with S-ATA, HDD and FDD connectors
- Complete suite of top safety features
- Meets latest Intel® C6/C7, ErP and Energy Star 6.1 guidelines
- Supports latest Intel® and AMD™ processors
- Product conception, design and quality control in Germany
Proven Reliability and Good Efficiency
Specially designed by be quiet! with the price-conscious PC builder in mind: System Power 9 600W CM offers renowned be quiet! performance and quietness and makes it possible to build cost-effective and reliable systems.
| Power |
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time |
17 ms |
| Efficiency |
89% |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
15 A |
| Max output current (+12V2) |
22 A |
| Max output current (+12V1) |
28 A |
| Max output current (+3.3V) |
24 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
120 W |
| Combined power (+12V) |
576 W |
| Combined power (+3.3V) |
120 W |
| Power Factor Correction (PFC) type |
Active |
| Power factor |
0.95 |
| Input current |
6 A |
| AC input frequency |
50 Hz |
| AC input voltage |
200 – 240 V |
| Total power |
600 W |
| Ports & interfaces |
| Cabling type |
Semi-Modular |
| Floppy drive power connector |
1 |
| CPU power cable length |
60 cm |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power cable length |
50 cm |
| PCI Express power connectors (6+2 pin) |
4 |
| SATA power cable length |
550,670 mm |
| Number of PATA power connectors |
2 |
| Number of SATA power connectors |
10 |
| Motherboard power cable length |
55 cm |
| Motherboard power connector |
20+4 pin ATX |
| Performance |
| Compatible products |
Intel C6/C7 |
| Bearing technology |
Sleeve |
| EPS version |
2.92 |
| ATX version |
2.51 |
| 80 PLUS certification |
80 PLUS Bronze |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
| Number of fans |
1 fan(s) |
| Fan diameter |
12 cm |
| Cooling type |
Active |
| Product colour |
Black |
| Certificates |
| Certification |
CE, CB, TÜV, RCM, CU |
| Compliance certificates |
RoHS |
| Packaging content |
| Cables included |
PCIe, SATA |
| Weight & dimensions |
| Weight |
1.66 kg |
| Height |
86 mm |
| Depth |
140 mm |
| Width |
150 mm |
| Packaging data |
| Package type |
Box |
| Package weight |
2.42 kg |
| Package height |
195 mm |
| Package depth |
268 mm |
| Package width |
97 mm |
| Manual |
Yes |
| Technical details |
| Sustainability certificates |
ENERGY STAR |
| Logistics data |
| Products per master (outer) case |
6 pc(s) |
| Master (outer) case gross weight |
15.2 kg |
| Harmonized System (HS) code |
84733020 |
| Master (outer) case height |
556 mm |
| Master (outer) case length |
215 mm |
| Master (outer) case width |
311 mm |
| Other features |
| Noise level (full-load mode, 100%) |
28.1 dB |
| Noise level (quiet mode, 50%) |
11.5 dB |
| Noise level (silent mode, |
9.7 dB |
| Screws included |
Yes |
