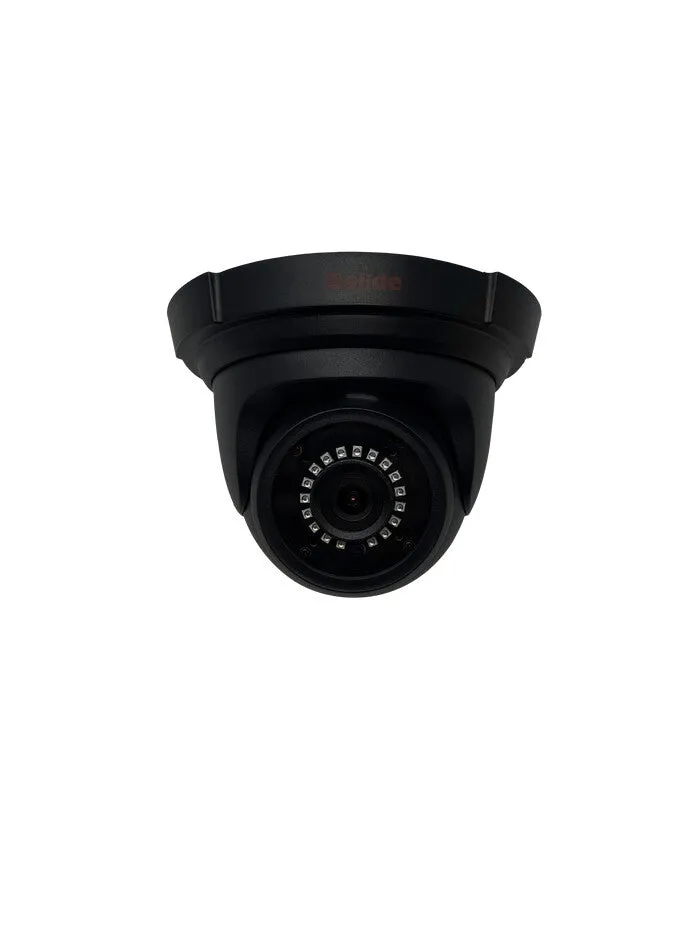

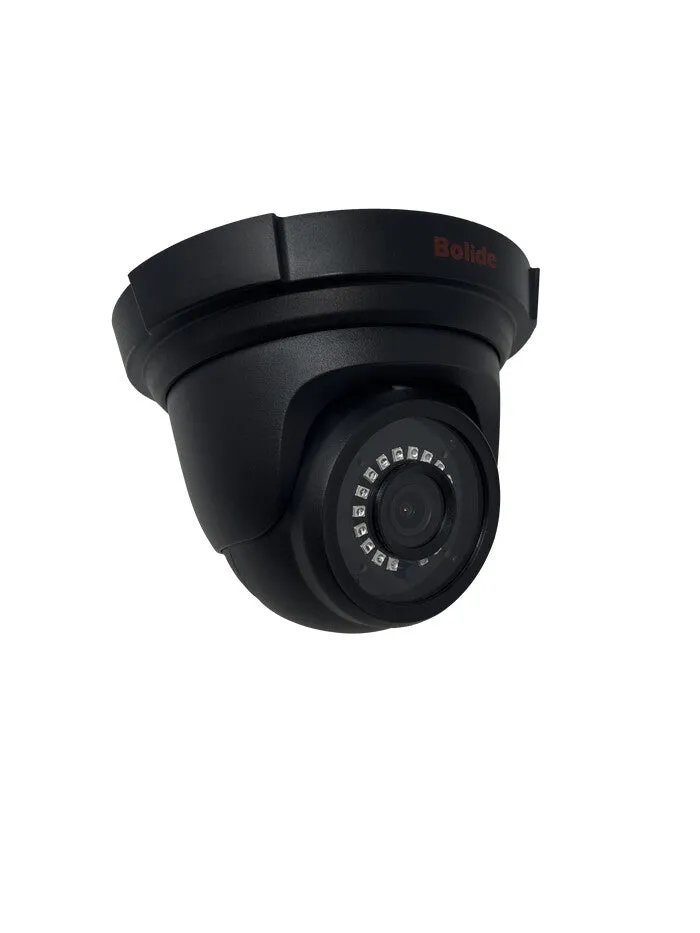

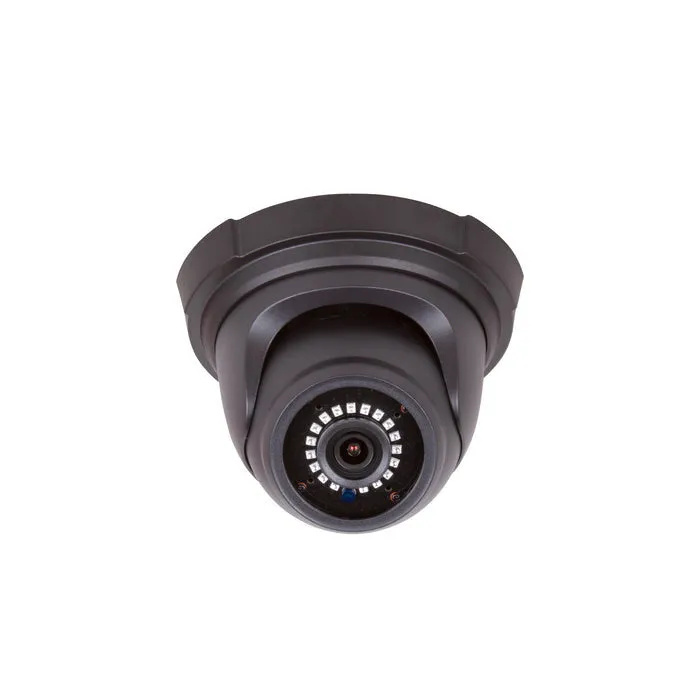

Bolide BN8019B/NDAA security camera Turret IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling
- Indoor & outdoor IP security camera
- CMOS 25.4 / 2.7 mm (1 / 2.7″) 5 MP 2592 x 1944 pixels
- Wired Ethernet LAN
- Night vision 27 m IR
- Turret Ceiling Waterproof
- IP66 Weatherproof
- Black
- 327 g
| Performance |
| Infrared (IR) cut-off filter |
Yes |
| Day/night mode |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
| Design |
| Weatherproof |
Yes |
| International Protection (IP) code |
IP66 |
| Protection features |
Waterproof |
| Product colour |
Black |
| Mounting type |
Ceiling |
| Form factor |
Turret |
| Camera |
| Camera shutter speed |
1/5 – 1/20000 s |
| White balance |
Auto, Manual |
| Lens viewing angle, diagonal |
128° |
| Lens viewing angle, vertical |
70° |
| Lens viewing angle, horizontal |
97° |
| Minimum illumination |
0 lx |
| Image sensor |
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 2.7 mm (1 / 2.7″) |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
| Fixed focal length |
2.8 mm |
| Maximum aperture number |
1.6 |
| Number of lenses |
1 |
| Night vision |
| LED type |
IR |
| Night vision distance |
27 m |
| Night vision |
Yes |
| Video |
| Bit rate |
8Kbps ~ 8Mbps |
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Gain control type |
Auto |
| Noise reduction |
Yes |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Supported graphics resolutions |
320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2592 x 1520, 2592 x 1944 |
| Video compression formats |
H.264, H.265 |
| Video formats supported |
H.264, H.265 |
| Total megapixels |
5 MP |
| Maximum resolution |
2592 x 1944 pixels |
| Network |
| Supported network protocols |
TCP/IP,HTTP,DHCP,DNS,DDNS, RTP/RTSP,SMTP,NTP,UPnP,SNMP, HTTPS, FTP |
| Ethernet interface type |
Fast Ethernet |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| Video motion detection |
Yes |
| Privacy protection |
Yes |
| Management features |
| Reset button |
Yes |
| Power |
| DC output voltage |
12 |
| Power source type |
DC, PoE |
| Operational conditions |
| Operating relative humidity (H-H) |
0 – 95% |
| Weight & dimensions |
| Weight |
327 g |
| Sustainability |
| Compliance certificates |
National Defense Authorization Act (NDAA) |
| Packaging data |
| Package type |
Box |
| Packaging content |
| Mounting kit |
Yes |
| Number of cameras |
1 |
