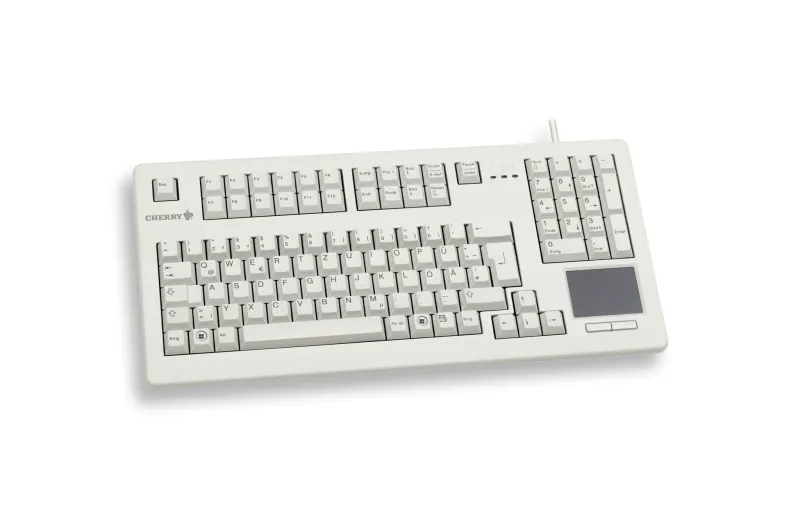

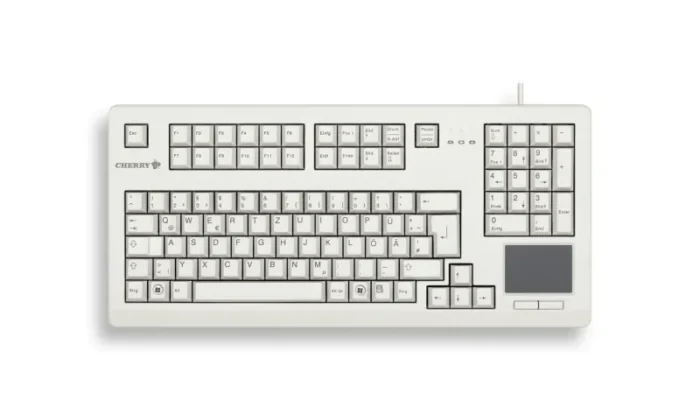

CHERRY TOUCHPAD 104 KEYS 16IN LIGHT
- Individual keys with Gold Crosspoint contacts (MX technology)
- Designed for continuous usage – over 50 mill. confirmations per key
- Robust and reliable
- Space-saving and ergonomic
- Ideal for limited space and 19′ applications
- Can be used with the standard drivers of the operating system
- USB keyboard: the following keys can be programmed freely using KeyM@n software (software macros) in 3 levels (single confirmation in combination with ‘CTRL’, in combination with ‘SHIFT’): function keys ‘F1’-‘F12’, ‘INSERT’, ‘DELETE’, ‘POSITION1’, ‘END’, ‘PAGE-UP’, ‘PAGE-DOWN’, ‘PRINT’, ‘PAUSE’, comma and zero in the numeric field
The multifunctional TouchBoard is the perfect solution for limited spaces in situations requiring the functions of a mouse. Particularly in hard industrial applications, the Cherry keyboard shows what she is made of. The model combines outstanding quality with long service life and precise, easy-to-operate touchpad.
| Keyboard |
| Certification |
cURus, c-tick, VCCI, CE, FCC, ÜG-VDE |
| Fingerprint reader |
No |
| Purpose |
PC/Server |
| USB hub |
No |
| Windows keys |
Yes |
| Keyboard keys operating life |
50 million characters |
| Keyboard number of keys |
104 |
| Numeric keypad |
Yes |
| Keyboard form factor |
Full-size (100%) |
| Pointing device |
Touchpad + mouse buttons |
| Keyboard language |
English |
| Keyboard layout |
QWERTY |
| Keyboard key switch technology |
Cherry MX Black |
| Keyboard key switch |
Mechanical |
| Device interface |
USB |
| Connectivity technology |
Wired |
| Recommended usage |
Industrial |
| Design |
| LED indicators |
Yes |
| Connector contacts plating |
Gold |
| Game edition |
No |
| Surface coloration |
Monochromatic |
| Product colour |
Grey |
| Wrist rest |
No |
| Ergonomic design |
Yes |
| Full-size keyboard |
Yes |
| Keyboard style |
Straight |
| Backlight |
No |
| Features |
| Cable length |
1.75 m |
| Power |
| Power consumption |
100 mA |
| Power source type |
USB |
| Operational conditions |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 50 °C |
| General |
| Product family |
TouchBoard |
| Weight & dimensions |
| Keyboard weight |
1 kg |
| Keyboard dimensions (WxDxH) |
415 x 37 x 193 mm |
| Packaging data |
| Package weight |
1.2 kg |
| Package height |
250 mm |
| Package depth |
45 mm |
| Package width |
447 mm |
| Other features |
| Internal |
No |
| Logistics data |
| Products per master (outer) case |
66 pc(s) |
| Harmonized System (HS) code |
84716060 |
