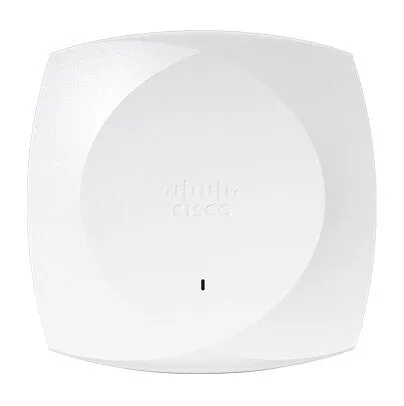

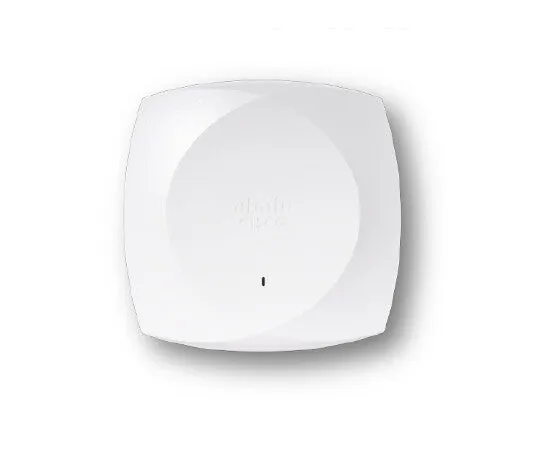

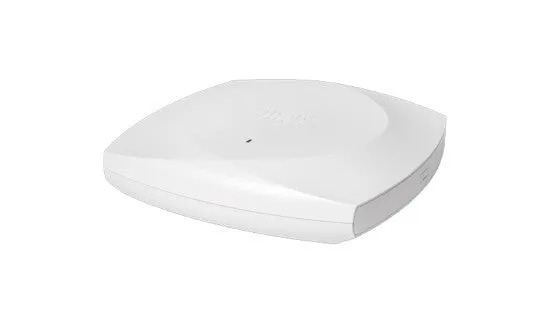

Cisco 9178 Series CW9178I-CFG++ wireless access point 24000 Mbit/s White Power over Ethernet (PoE)
- 2.4 GHz
- 5 GHz
- 6 GHz
- Maximum data transfer rate: 24000 Mbit/s
- IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11n
- EAP, WPA2, WPA3
- Power over Ethernet (PoE)
- Antennas quantity: 6 Internal
Product overview
Cisco’s Wi-Fi 7 access points power the next generation of wireless experiences, designed to revolutionize connectivity and digital experiences. Offering unprecedented speeds, enhanced security, and resilient connectivity, these products are ideal for high-density environments and critical applications. They seamlessly integrate into your existing network, whether on-premises, cloud-based, or hybrid, providing flexible deployment options to suit various organizational needs.
The Cisco® Wireless Wi-Fi 7 access points enable transformative user experiences. Enterprises can leverage the predictability and low latency of Wi-Fi 7 to support better video streaming, augmented reality (AR), and virtual reality (VR) applications. By connecting people and things within physical spaces, Cisco’s wireless solutions with Wi-Fi 7 offer real-time insights and actions such as indoor navigation and personalized user experiences.
Create differentiated customer experiences, accelerate digital business transformation, and prepare networks for the future with Cisco’s Wi-Fi 7 solutions. With faster data transfer rates, reduced network congestion, and simplified network management with AI-driven insights and automation, the Cisco Wireless 9178 Series Access Points provide the foundation for the future of wireless.
| Features | |
|---|---|
| Receiver sensitivity | 2.4 GHz: 23 dBm (200 mW), -4 dBm (0.39 mW);5 GHz: 23 dBm (200 mW), -4 dBm (0.39 mW);6 GHz: 23 dBm (200 mW), -4 dBm (0.39 mW); |
| BeamForming | Yes |
| Band steering | Yes |
| Spread spectrum method | OFDMA |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Bluetooth version | 5.3 |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11n |
| Ethernet LAN data rates | 100,1000,2500,5000,10000 Mbit/s |
| Maximum data transfer rate | 24000 Mbit/s |
| 5 GHz | Yes |
| 6 GHz | Yes |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Security algorithms | EAP, WPA2, WPA3 |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| Power consumption (typical) | 9 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| Product colour | White |
| Placement | Ceiling, Wall |
| Antenna | |
|---|---|
| Antenna gain level (max) | 7 dBi |
| Antennas quantity | 6 |
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
| Performance | |
|---|---|
| Flash memory | 16000 MB |
| Internal memory | 4096 MB |
| General | |
|---|---|
| Product family | 9178 Series |
| Weight & dimensions | |
|---|---|
| Weight | 1.87 kg |
| Height | 50.8 mm |
| Depth | 251.5 mm |
| Width | 251.5 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -30 – 70 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Operating relative humidity (H-H) | 10 – 90% |
