Cooler Master MasterBox Q500L Midi Tower Black
- Highly Compact Standard ATX
- Orientation & A Movable I/O Panel
- Versatile PSU Bracket
- Fully Perforated Chassis
- Magnetic Dust Filters
- Edge-to-Edge Transparent Side Panel
- Clean Routing Space
MASTERBOX Q500L
CHOOSE YOUR STYLE

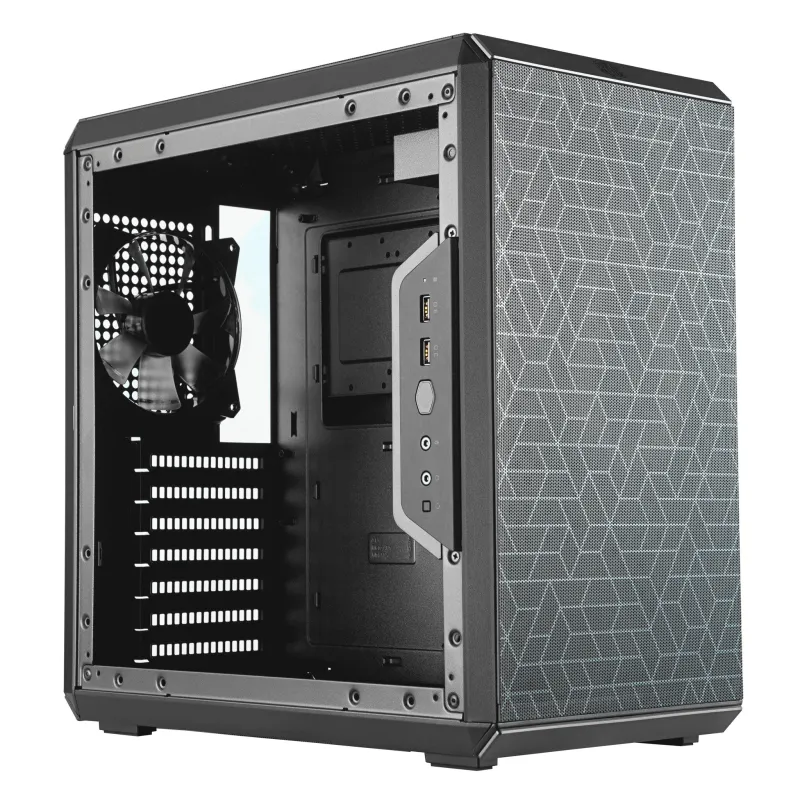

ORIENTATION & A MOVABLE I/O PANEL
The modular MasterBox Q500L can orient vertically and horizontally with rubberized thumbscrews that also act as feet. Depending on hardware configuration, the movable I/O panel can be relocated to multiple positions to retain its accessibility.
VERSATILE PSU BRACKET
The PSU bracket enables the PSU to adapt to different clearance requirements and motherboard form factors. The PSU bracket can shift up or down for top radiator/graphics card clearance and can also be relocated for ITX systems.

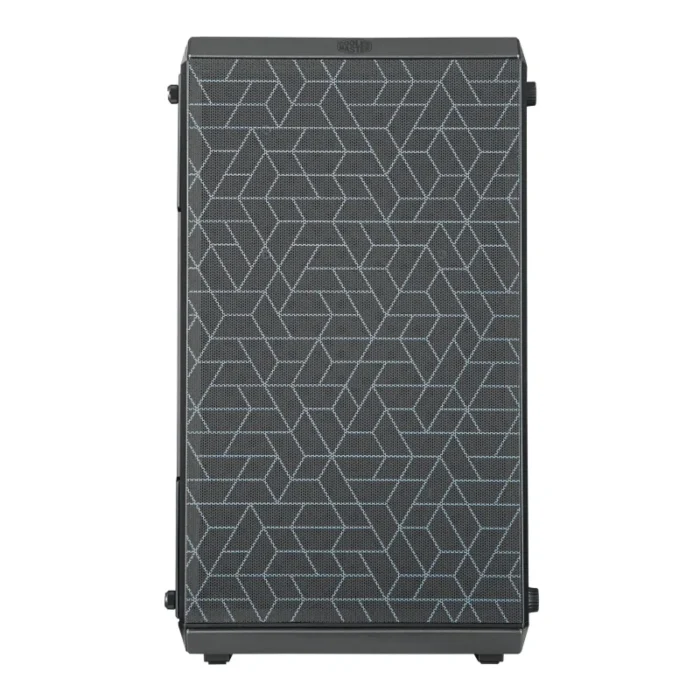

FULLY PERFORATED CHASSIS
The top, front, rear, and bottom panels are fully perforated to support various fan configurations.
MAGNETIC DUST FILTERS
The magnetic dust filters feature a unique design. Magnets allow for quick removal and installation for easy cleaning of the dust filters with rubber stompers to keep the filters from sliding.

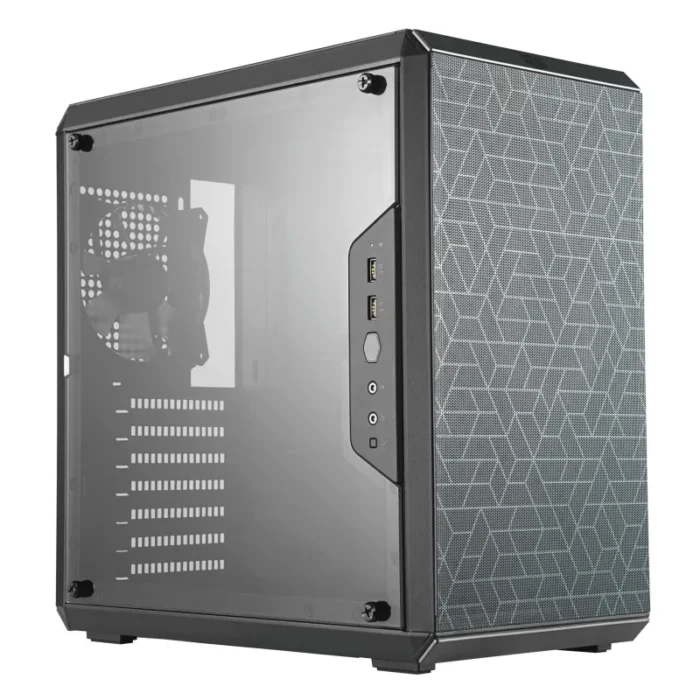

EDGE-TO-EDGE TRANSPARENT SIDE PANEL
The side panel displays system builds in full view.
COOLING SUPPORT
The bottom supports up to two 120mm fans.
The rear supports a 120mm fan or 120mm radiator.
The top supports up to two 120mm/140mm fans or a 120/240mm radiator.
STORAGE SUPPORT
Each storage caddy can mount either 2x 2.5″ drives or 1x 3.5″ drive, two caddies included.
Possible Configurations:
4x 2.5″ drives | 2x 3.5″ drives | 2x 2.5″ drives + 1x 3.5″ drive
MOTHERBOARD SUPPORT
The internal layout and PSU location adapts to the motherboard. If a standard ATX motherboard is used, the PSU mounts to the top-front of the chassis with the ability to shift upward or downward. For mini-ITX builds, the PSU can be located in the conventional bottom-rear position for increased front panel ventilation.
CLEAN ROUTING SPACE
Behind the motherboard tray, 27~30mm width of space is offered for cable management with the entire perimeter dedicated as a channel for cables.
| Design | |
|---|---|
| Maximum PSU length | 18 cm |
| Maximum graphics card length | 36 cm |
| Maximum CPU cooler height | 16 cm |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5″ bays | 2 |
| Number of 3.5″ bays | 1 |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Product colour | Black |
| Material | Acrylic, Plastic, Steel |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX, PS2 |
| Power supply location | Top |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 120,240 mm |
| Liquid cooling capability | Yes |
| Bottom fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Storage | |
|---|---|
| HDD/SSD combo cage | Yes |
| Supported HDD sizes | 2.5,3.5″ |
| General | |
|---|---|
| Product family | MasterBox |
| Weight & dimensions | |
|---|---|
| Weight | 3.83 kg |
| Height | 381 mm |
| Depth | 386 mm |
| Width | 230 mm |
| Packaging data | |
|---|---|
| Package weight | 4.83 kg |
| Package height | 461 mm |
| Package depth | 435 mm |
| Package width | 276 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
