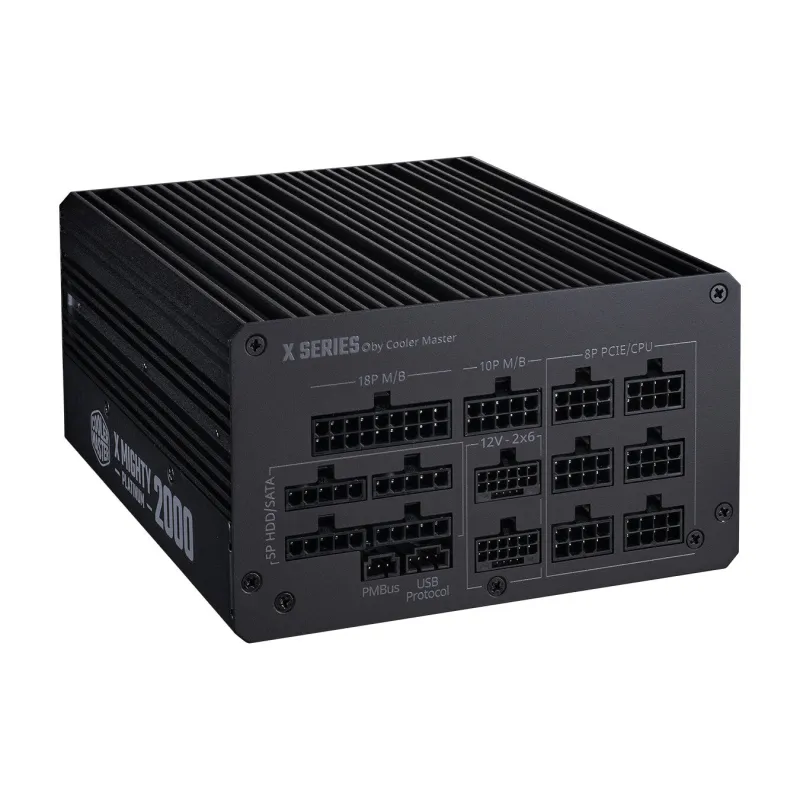

Cooler Master X Mighty Platinum 2000W 230V power supply unit 24-pin ATX ATX Black
- 2000 W 200 – 240 V 50/60 Hz
- Motherboard power connector: 24-pin ATX
- PC ATX 80 PLUS Platinum
- Active 12 cm 0 – 2500 RPM
- Black
Unleash Next-Gen Might
The X Mighty Platinum is a powerhouse blending high-capacity performance, top-tier industrial-grade IC components, and sophisticated interleaved PFC topology. This PSU is engineered to meet the demanding needs of server and artificial intelligence industries, featuring dual 12V-2×6 connectors designed for rigorous, high-performance applications.
Active Bridge Rectifier Boosts Efficiency
The Active Bridge Rectifier, equipped with the Infineon CoolMOS, marks a significant advancement in power efficiency. This innovative combination not only conserves electricity, but also significantly reduces power loss, outperforming traditional bridge diodes. It’s an ideal solution for users seeking eco-friendly, high-efficiency power supply units.
Fully Modular Cabling
Modular cabling minimizes clutter, while the additional ports provide extra functionality.
Superior Cooling Performance
Cooler Master’s exclusive aluminum Thermal Mold in the X Mighty Platinum PSU masterfully disperses heat, complemented by a silent fan with a zero-RPM mode for superior cooling. This dual strategy ensures effective thermal management, maintaining peak performance while prolonging the PSU’s lifespan.
Digital Power Management System & MasterCTRL
Equipped with MCUs and Integrated with MasterCTRL software, our reliable PSU meticulously monitors temperature, current load and efficiency in real-time, offering precise and direct oversight.
PSU Calculator
Need help choosing the right power supply for your system?Try out our comprehensive and easy-to-use PSU calculator.
ATX 3.1 Support & Two Durable 12V-2×6 Cables
Includes ATX 3.1 support and two 90-degree 12+4pin (12V-2×6) PCIe 5.1 cables featuring lower temperatures, enhanced durability, and improved safety.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Surge and inrush, Under voltage |
| Hold time | 16 ms |
| Efficiency | 94% |
| Power Good signal delay range | 100 – 150 ms |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 166.6 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 120 W |
| Combined power (+12V) | 1999.2 W |
| Combined power (+3.3V) | 120 W |
| Power Factor Correction (PFC) type | Active |
| Input current | 12 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 200 – 240 V |
| Total power | 2000 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of EPS connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| PCI Express power connectors (12-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 4 |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power cable length | 500,620,740,860 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| SATA power cable length | 500,650,800,950 mm |
| Number of SATA power connectors | 12 |
| Motherboard power cable length | 65 cm |
| Motherboard power connector | 24-pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | FDB |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Fan location | Top |
| Fan speed | 0 – 2500 RPM |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 50 °C |
| Certificates | |
|---|---|
| Certification | TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS,UKCA |
| Weight & dimensions | |
|---|---|
| Weight | 4.1 kg |
| Height | 86 mm |
| Depth | 180 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 4.8 kg |
| Package height | 126 mm |
| Package depth | 224 mm |
| Package width | 382 mm |
| Technical details | |
|---|---|
| Sustainability certificates | ErP |
