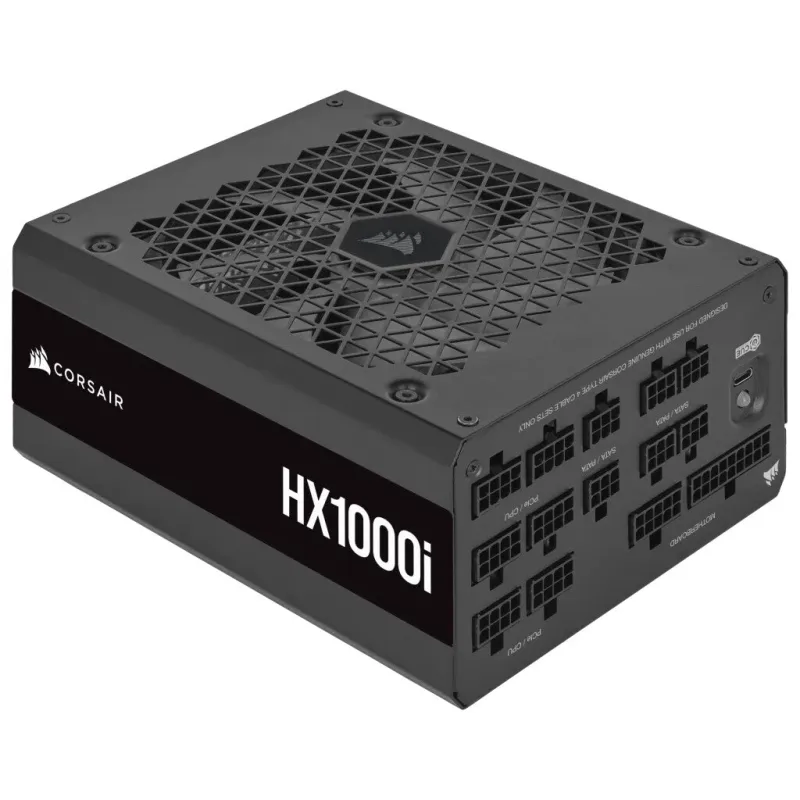

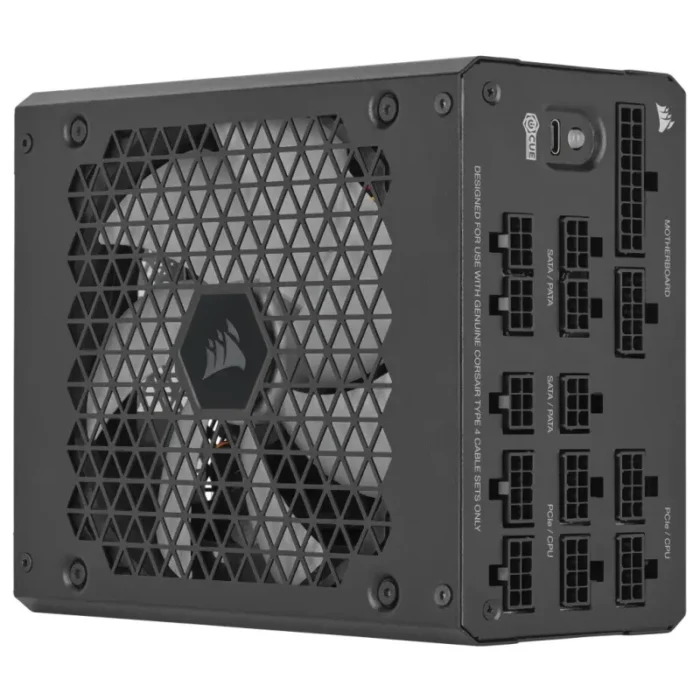

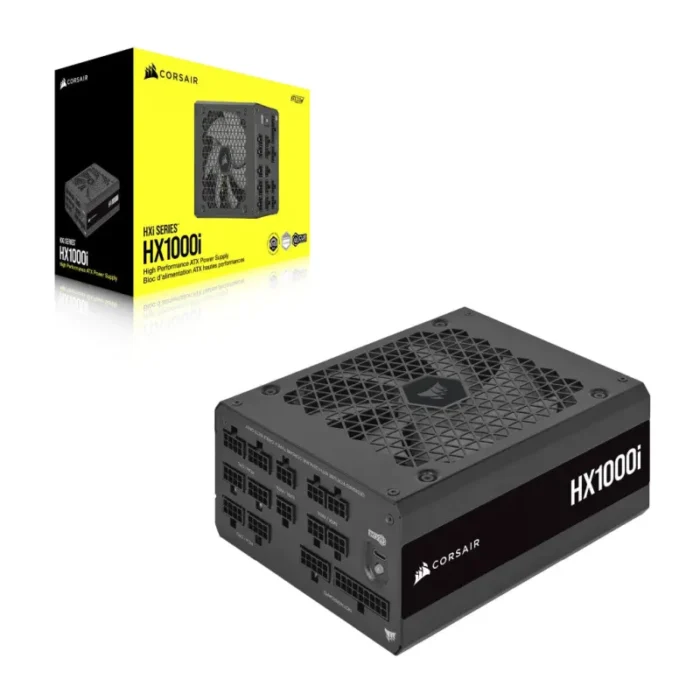

Corsair HX1000i power supply unit 1000 W 24-pin ATX ATX Black
- Compatible with NVIDIA 4000 series and AMD® Ryzen 7000 series GPUs
- Magnetic Levitation fan with Zero RPM mode
- 105°C rated 100% Japanese electrolytic capacitors
- ATX 3.0 & PCIe 5.0 certified
POWERFUL CONNECTIONS
With three EPS12V connectors and fully modular cabling, HXi Series platinum power supplies have every connection needed to power today’s most demanding PC upgrades now and into the future, including the latest generation of power-hungry graphics cards and processors.
ON THE CUTTING-EDGE. ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, HXi Series PSUs are formally certified for ATX 3.0 compliance.
PCIe 5.0 12VHPWR GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
QUIET OPERATION
HXi Series PSUs combine a 140mm fluid dynamic bearing fan with Zero RPM mode support for long-lasting fan performance and near-silent operation when the fan switches off at low and medium loads – only spinning as fast as it needs to.
UNWAVERING POWER AND QUALITY
80 PLUS Platinum certified with premium 100% Japanese 105°C electrolytic capacitors, HXi PSUs ensure up to 92% efficiency for exceptional power delivery and long-term reliability with low power consumption, less noise, and cooler temperatures.
POWER AT THE READY
As a fully digital power supply, each HXi Series PSU provides clean, consistent power while minimizing coil whine and noise for stable and quiet operation.
Supporting Modern Standby sleep mode, the HXi Series takes low-load efficiency to the next level with quiet operation and extremely fast wake-from-sleep times.
80 PLUS PLATINUM CERTIFIED
Steady power output at up to 92% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.
105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese primary electrolytic capacitors for unwavering power and reliability.
YOUR SETUP AT YOUR COMMAND
With CORSAIR iCUE Software, you can monitor your power supply performance, toggle single rail or multi rail mode, and control fan speed directly from your desktop.
| Power | |
|---|---|
| Efficiency | 92% |
| Max output current (+5Vsb) | 3 A |
| Max output current (+5V) | 25 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+3.3V) | 25 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (+5V) | 150 W |
| Combined power (+12V) | 999.6 W |
| Combined power (+3.3V) | 150 W |
| Input current | 13 – 6.5 A |
| AC input frequency | 47 – 63 Hz |
| AC input voltage | 100 – 240 V |
| Total power | 1000 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| PCI Express power cable length | 77.5 cm |
| PCI Express power connectors (6+2 pin) | 4 |
| EPS power connector (4+4 pin) | Yes |
| Peripheral (Molex) power cable length | 750 mm |
| SATA power cable length | 800 mm |
| Number of PATA power connectors | 8 |
| Number of SATA power connectors | 8 |
| Motherboard power cable length | 61 cm |
| Motherboard power connector | 24-pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | FDB |
| Silent mode | Yes |
| ATX version | 3.0 |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Built-in display | No |
| Number of fans | 1 fan(s) |
| Fan diameter | 14 cm |
| Cooling type | Active |
| Product colour | Black |
| Packaging content | |
|---|---|
| USB cable length | 0.525 m |
| Cable tie(s) included | Yes |
| Cables included | AC |
| Weight & dimensions | |
|---|---|
| Weight | 3.71 kg |
| Logistics data | |
|---|---|
| Warranty period | 10 year(s) |
| Other features | |
|---|---|
| Screws included | Yes |
