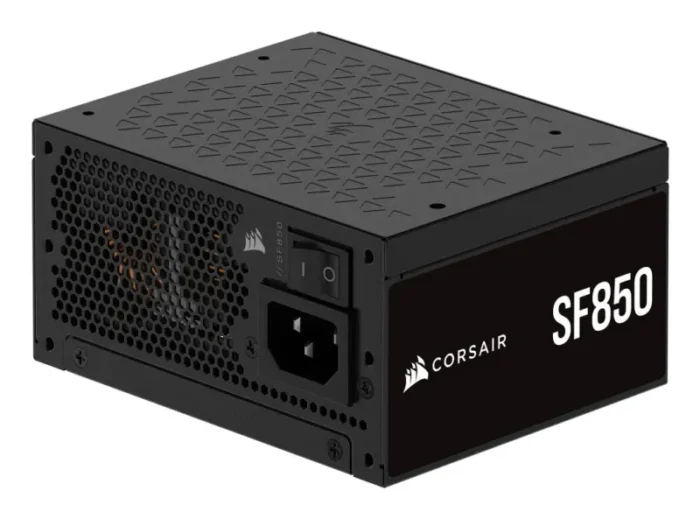

Corsair SF850 power supply unit 850 W 24-pin ATX ATX Black
- 850 W 100 – 240 V 47 – 63 Hz
- Motherboard power connector: 24-pin ATX
- PC ATX 80 PLUS Platinum
- Active 9.2 cm
- Black
Outfit your next SFF PC with a CORSAIR SF Series 80 PLUS Platinum SFX Power Supply for compact, ATX 3.1 compliant, fully modular Platinum power.
Power |
Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit |
Max output current (+5Vsb) |
3 A |
Max output current (+5V) |
20 A |
Max output current (+12V) |
70.8 A |
Max output current (+3.3V) |
20 A |
Combined power (+5Vsb) |
15 W |
Combined power (+5V) |
130 W |
Combined power (+12V) |
850 W |
Combined power (+3.3V) |
130 W |
Input current |
5 – 10 A |
AC input frequency |
47 – 63 Hz |
AC input voltage |
100 – 240 V |
Total power |
850 W |
Ports & interfaces |
Cabling type |
Fully-Modular |
ATX power connector (12+4 pin) |
Yes |
PCI Express power cable length |
75 cm |
PCI Express power connectors (6+2 pin) |
3 |
EPS power connector (4+4 pin) |
Yes |
SATA power cable length |
455 mm |
Number of PATA power connectors |
1 |
Number of SATA power connectors |
3 |
Motherboard power cable length |
30 cm |
Motherboard power connector |
24-pin ATX |
Performance |
Mean time between failures (MTBF) |
100000 h |
Bearing technology |
FDB |
Silent mode |
Yes |
ATX version |
3.1 |
80 PLUS certification |
80 PLUS Platinum |
Power supply unit (PSU) form factor |
ATX |
Purpose |
PC |
Design |
On/off switch |
Yes |
Fan location |
Top |
Number of fans |
1 fan(s) |
Fan diameter |
9.2 cm |
Cooling type |
Active |
Product colour |
Black |
Packaging content |
Cables included |
AC |
Weight & dimensions |
Weight |
2.3 kg |
Height |
63.5 mm |
Depth |
100 mm |
Width |
125 mm |
Packaging data |
Package type |
Box |
