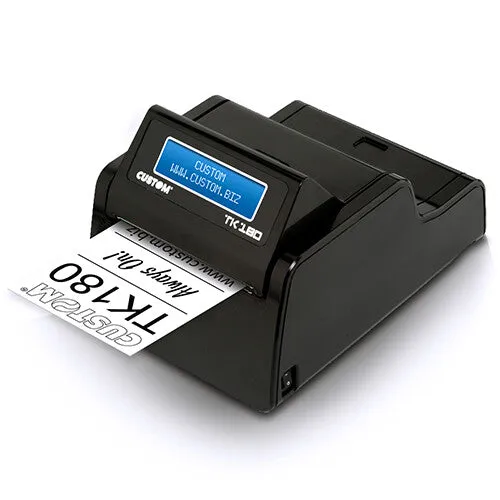

CUSTOM TK180 label printer Thermal transfer 203 x 203 DPI 200 mm/sec Wired Ethernet LAN
- The smallest printer on the market: just 130 x 185.9 x 118.9 H mm (5.1″ x 7.2″ x 4.6″ H)
- Very fast: > 200 mm/sec (8″/sec)
- ETHERNET + RS232 + USB interfaces
- Paper width: from 20mm to 82.5mm
- Paper thickness: 70/255 gr/m2
- High-resolution display with strong ambient light
- Tear off
- 1D and 2D barcode printing (PDF417, DATAMATRIX, AZTEC, QR CODE)
- Automatic sensor calibration, no paper waste
- Embedded cables and wires
The smallest combined printer with high reliability features
TK180 is the smallest and highly reliable printer available. Optional paper roll holder. TK180 is equipped with a powerful internal processor and Hot swap function. Printing > 200 mm/s. The Ethernet, RS232 and USB interfaces assure easy and flexible integration. In addition to the most common sensors, it is also provided with the new mobile sensor, capable of identifying black marks or gaps on any type of paper. TK180 has an automatic sensor calibration feature which is automatically activated every time paper is loaded and prevents any ticket wastage thereby contributing to environmental sustainability and reducing management costs.
| Printing |
| Vertical printing |
Yes |
| Maximum printing width |
8 cm |
| Print speed |
200 mm/sec |
| Maximum resolution |
203 x 203 DPI |
| Colour |
No |
| Print technology |
Thermal transfer |
| Paper handling |
| Media thickness |
70 – 255 mm |
| Supported paper width |
20 – 82.5 mm |
| Maximum roll diameter |
20 cm |
| Core diameter |
2.5 cm |
| Ports & interfaces |
| RS-232 ports |
1 |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Connectivity technology |
Wired |
| Performance |
| Built-in barcodes |
AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, PDF417, QR Code, UPC-A, UPC-E |
| Flash memory |
1 MB |
| Internal memory |
0.128 MB |
| Design |
| Display |
LCD |
| Built-in display |
Yes |
| Product colour |
Black |
| Power |
| AC adapter output current |
1.5 A |
| AC adapter output voltage |
24 V |
| AC input voltage |
110 V |
| System requirements |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Mobile operating systems supported |
Android, iOS |
| Operational conditions |
| Operating temperature (T-T) |
-10 – 60 °C |
| Weight & dimensions |
| Weight |
1.9 kg |
| Height |
118.9 mm |
| Depth |
185.9 mm |
| Width |
130 mm |
| Packaging content |
| Cables included |
AC |
