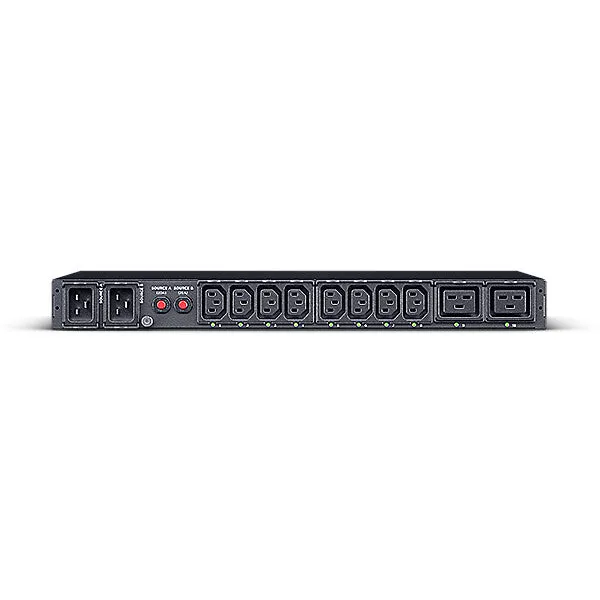

CyberPower PDU44005 power distribution unit (PDU) 10 AC outlet(s) 1U Black
- Single-phase Managed, Monitored, Switched 1U Black
- LCD
- 10 AC outlet(s) C13 coupler, C19 coupler
CyberPower PDU44005 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source to ensure continuous operation. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location.
The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel® Power Management Software and power management web interface for real-time remote monitoring and configuration. The digital LCD display is also color configurable, allowing users to easily maintain and monitor the ATS PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments. Event logging via a web browser or network connection allows users to review the history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port also supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.
| Design | |
|---|---|
| Display | LCD |
| Product colour | Black |
| Housing material | Steel |
| Mounting | Horizontal |
| Rack capacity | 1U |
| Type | Single-phase |
| PDU types | Managed, Monitored, Switched |
| Ports & interfaces | |
|---|---|
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | IEC 60320 |
| AC outlets quantity | 10 AC outlet(s) |
| Features | |
|---|---|
| Cable length | 3.05 m |
| LED indicators | Yes |
| Daisy chain | Yes |
| Management features | |
|---|---|
| Supported network protocols | IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog |
| Firmware upgradeable | Yes |
| Monitoring | Current, Power, Voltage |
| Power | |
|---|---|
| Maximum current | 16 A |
| AC input frequency | 50 – 60 Hz |
| Nominal input voltage | 200 – 240 V |
| Certificates | |
|---|---|
| Certification | CE, FCC Class A, UL62368, EN 55032 Class A, IEC 62368 |
| Compliance certificates | CE, RoHS |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 – 15000 m |
| Operating altitude | 0 – 4000 m |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Storage temperature (T-T) | -15 – 55 °C |
| Operating temperature (T-T) | 0 – 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3.4 kg |
| Height | 44 mm |
| Depth | 215 mm |
| Width | 433 mm |
| Packaging content | |
|---|---|
| Rack mount kit | Yes |
| Manual | Yes |
| Cables included | Serial |
| Packaging data | |
|---|---|
| Package height | 125 mm |
| Package depth | 398 mm |
| Package width | 500 mm |
| Package weight | 6 kg |
| Logistics data | |
|---|---|
| Country of origin | China |
