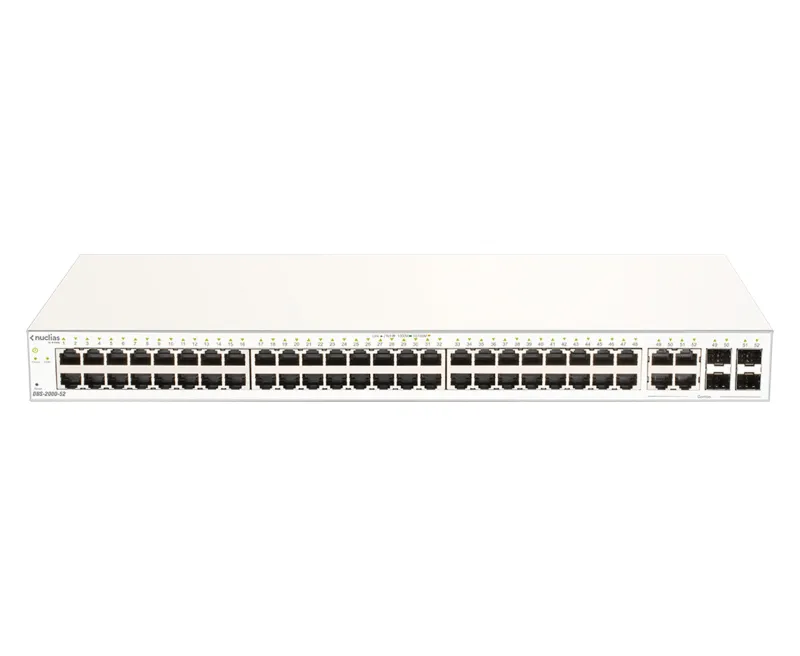

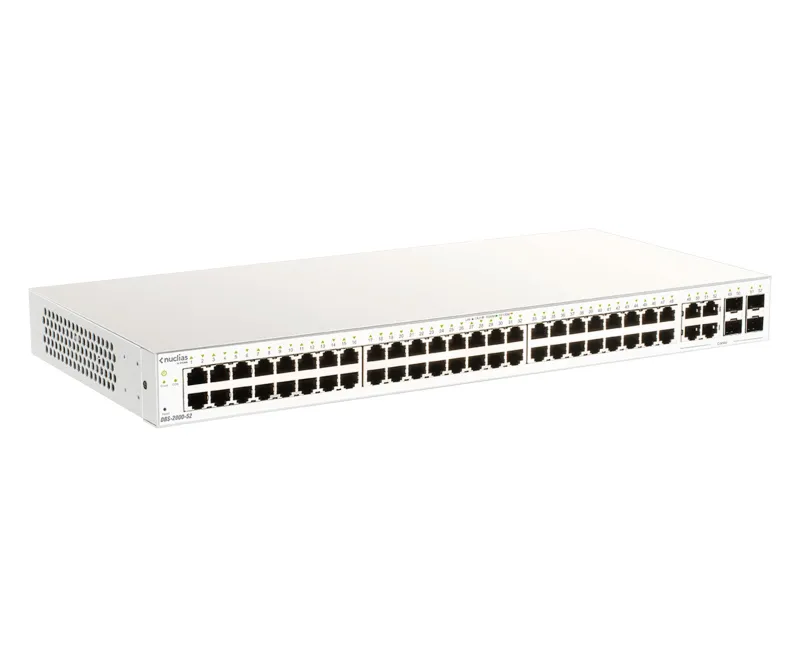

D-Link DBS-2000-52 network switch Managed L2 Gigabit Ethernet (10/100/1000) Grey
- 48 x 10/100/1000BASE-T ports
- 4 x 10/100/1000BASE-T ports
- Zero-Touch Deployment
- Cloud Management w/99.9% SLA
- WPA/WPA2/WPA3 Encryption
- Innovative D-Link Green Energy-saving features
- Intuitive Web Portal for comprehensive switch management
- Multilingual Support
Cloud Networking, Refreshed
The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.
Management Over the Cloud
DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.
Easy Troubleshooting
The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.
Advanced Security Features
The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.
| Management features | |
|---|---|
| Web-based management | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Console port | RJ-45 |
| Combo SFP ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.3ad |
| Data transmission | |
|---|---|
| Packet buffer memory | 12 MB |
| Forwarding rate | 77.4 Mpps |
| Switching capacity | 104 Gbit/s |
| Security | |
|---|---|
| Security algorithms | WPA, WPA2 |
| IGMP snooping | Yes |
| Design | |
|---|---|
| Number of fans | 0 fan(s) |
| LED indicators | Yes |
| Product colour | Grey |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 400667 h |
| Flash memory | 32 MB |
| Internal memory | 256 MB |
| Memory type | DDR3-SDRAM |
| Processor frequency | 700 MHz |
| Built-in processor | Yes |
| Power | |
|---|---|
| Power consumption (max) | 34.85 W |
| AC input voltage | 100 – 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Heat dissipation | 118.92 BTU/h |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating temperature (T-T) | -5 – 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3.46 kg |
| Height | 44.5 mm |
| Depth | 210 mm |
| Width | 440 mm |
| Packaging data | |
|---|---|
| Package weight | 4.6 kg |
| Package height | 98 mm |
| Package depth | 552 mm |
| Package width | 354 mm |
| Technical details | |
|---|---|
| Shipping (inner) case height | 38.3 cm |
| Shipping (inner) case width | 31.4 cm |
| Shipping (inner) case length | 56.2 cm |
| Shipping (inner) case net weight | 13.8 kg |
| Products per shipping (inner) case | 3 pc(s) |
| Pallet gross weight (air) | 284.8 kg |
| Master (outer) cases per pallet (air) | 18 pc(s) |
| Products per pallet (air) | 54 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 128.4 cm |
| Pallet gross weight (sea) | 462.2 kg |
| Master (outer) cases per pallet (sea) | 30 pc(s) |
| Products per pallet (sea) | 90 pc(s) |
| Pallet height (sea) | 2.05 m |
| Shipping (inner) case gross weight | 14.7 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
