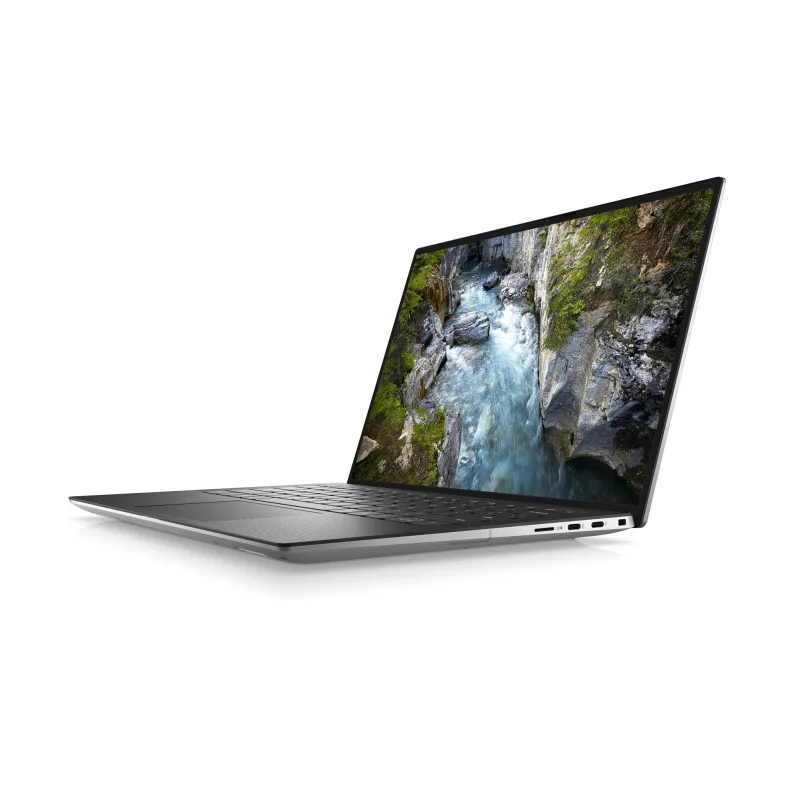

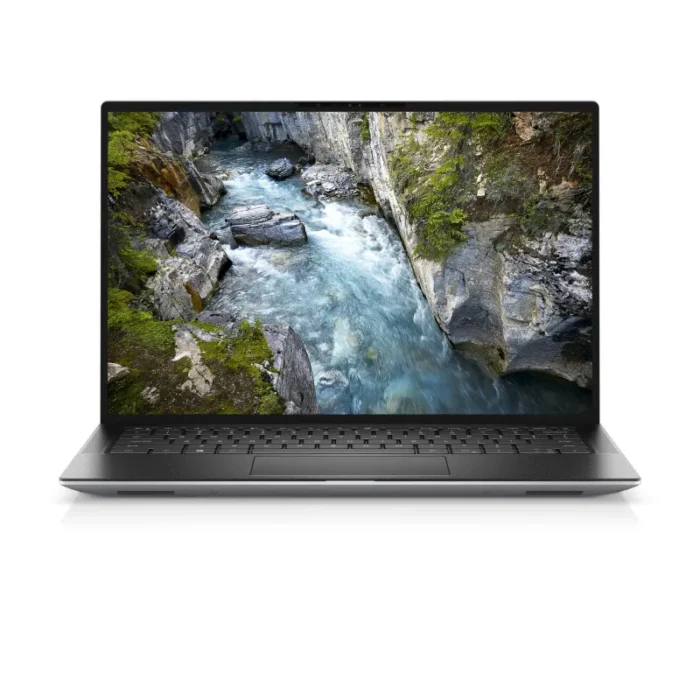

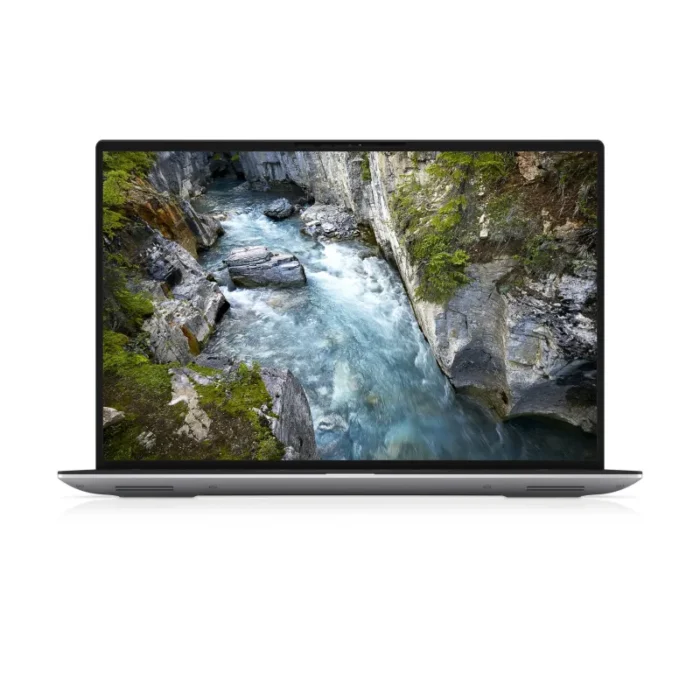

DELL Precision 5470 Intel® Core™ i7 i7-12800H Mobile workstation 35.6 cm (14″) Full HD+ 32 GB LPDDR5-SDRAM 1 TB SSD NVIDIA RTX A1000 Wi-Fi 6E (802.11ax) Windows 10 Pro Grey
- Windows 10 Pro 64-bit
- Intel Core i7-12800H (24MB Cache)
- 35.6 cm (14″) Full HD+ 1920 x 1200 WLED, NVIDIA RTX A1000 (4GB GDDR6)
- 32GB (5200MHz) LPDDR5-SDRAM & 1000GB SSD
Power your creative zone
14″ mobile workstation featuring 4-sided InfinityEdge display, up to 12 Gen Intel® Core™ i9 and professional graphics from Intel or NVIDIA.
| Design |
| Intel® vPro™ Platform Eligibility |
Yes |
| Introduction year |
2022 |
| Market positioning |
Business |
| Form factor |
Clamshell |
| Product colour |
Grey |
| Product type |
Mobile workstation |
| Display |
| Contrast ratio (typical) |
1200:1 |
| Display response rise/fall |
35 ms |
| Maximum refresh rate |
60 Hz |
| RGB colour space |
sRGB |
| Colour gamut |
100% |
| Pixel pitch |
0.1572 x 0.1572 mm |
| Pixel density |
161 ppi |
| Display brightness |
500 cd/m² |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:10 |
| LED backlight |
Yes |
| Panel type |
WLED |
| HD type |
Full HD+ |
| Touchscreen |
No |
| Display resolution |
1920 x 1200 pixels |
| Display diagonal |
35.6 cm (14″) |
| Processor |
| Configurable TDP-down |
35 W |
| Processor cache |
24 MB |
| Processor boost frequency |
4.8 GHz |
| Processor cores |
14 |
| Processor model |
i7-12800H |
| Processor generation |
12th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| Maximum internal memory |
32 GB |
| Memory clock speed |
5200 MHz |
| Memory form factor |
On-board |
| Internal memory type |
LPDDR5-SDRAM |
| Internal memory |
32 GB |
| Storage |
| Compatible memory cards |
SDXC, SD, SDHC |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Total storage capacity |
1 TB |
| Graphics |
| On-board graphics card model |
Intel Iris Xe Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
4 GB |
| Discrete graphics card model |
NVIDIA RTX A1000 |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Built-in subwoofer |
Yes |
| Speaker power |
8 W |
| Number of built-in speakers |
4 |
| Audio chip |
Realtek ALC711-VD |
| Camera |
| Infrared (IR) camera |
Yes |
| Video capturing speed |
30 fps |
| Front camera resolution |
1280 x 720 pixels |
| Front camera HD type |
HD |
| Front camera resolution (numeric) |
0.92 MP |
| Front camera |
Yes |
| Network |
| Bluetooth |
Yes |
| Ethernet LAN |
No |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer |
Intel |
| Antenna type |
2×2 |
| Wi-Fi data rate (max) |
2400 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
4 |
| Performance |
| Ambient light sensor |
Yes |
| Accelerometer |
Yes |
| Keyboard |
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Keyboard language |
UK English |
| Pointing device |
Touchpad |
| Software |
| Trial software |
No Microsoft Office License Included 30 day Trial Offer Only |
| Operating system language |
German, Dutch, English, French, Italian |
| Windows 11 free upgrade |
Yes |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Pro |
| Processor special features |
| CPU configuration (max) |
1 |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel Flex Memory Access |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Execute Disable Bit |
Yes |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Battery |
| Battery weight |
285 g |
| Fast charging |
Yes |
| Battery recharge time |
4 h |
| Battery voltage |
15.4 V |
| Battery capacity |
72 Wh |
| Number of battery cells |
4 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
| USB charging current |
6.5 A |
| USB charging voltage |
20,5 V |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50/60 Hz |
| AC adapter power |
130 W |
| Security |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Cable lock slot |
Yes |
| Operational conditions |
| Non-operating vibration |
1.3 G |
| Operating vibration |
0.66 G |
| Non-operating shock |
160 G |
| Operating shock |
110 G |
| Non-operating altitude |
-15.2 – 10668 m |
| Operating altitude |
-15.2 – 3048 m |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 65 °C |
| Operating temperature (T-T) |
0 – 35 °C |
| Weight & dimensions |
| Height (rear) |
1.11 cm |
| Height (front) |
7.49 mm |
| Depth |
210.3 mm |
| Width |
310.6 mm |
| Weight |
1.48 kg |
| General |
| Product family |
Precision |
| Product series |
5000 |
| Carbon footprint |
| Carbon emissions, end-of-life (kg of CO2e) |
2 |
| Total carbon emissions, standard deviation (kg of CO2e) |
88 |
| Carbon emissions, energy usage (kg of CO2e) |
30 |
| PAIA version |
1.3.1 |
| Total carbon footprint (kg of CO2e) |
395 |
| Carbon emissions, manufacturing (kg of CO2e) |
350 |
| Carbon emissions, logistics (kg of CO2e) |
13 |
| Total carbon emissions, w/o use phase (kg of CO2e) |
365 |
| Logistics data |
| Harmonized System (HS) code |
84713000 |
