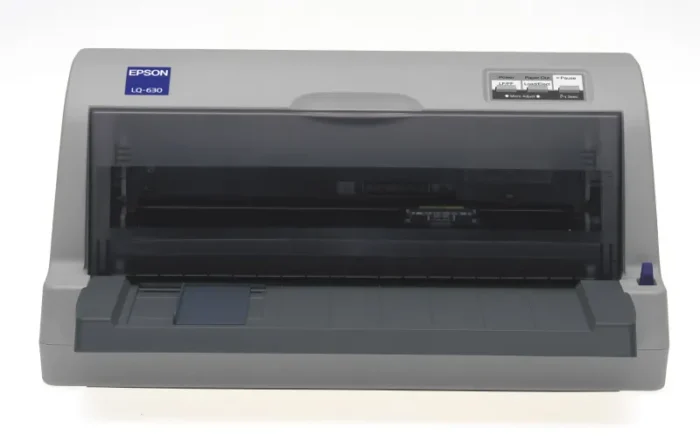

Epson LQ-630 dot matrix printer 360 cps
- 360 cps Grey
- 57 dB
- Buffer size: 32 KB
- Standard interfaces: Parallel, USB 2.0
- Print head: 24-pin 200 million characters
- Mean time between failures (MTBF): 6000 h
- 20 W
LQ-630 is a small and reliable printer especially for counter application. With its small design with 80 columns, LQ-630 fits perfectly in environments where space is rather limited. The ejection of both, continuous paper and cut sheets at front side enables easy handling of the print outs only at the front side of the printer. Due to the printer’s flatbed technology, LQ-630 can print even smallest cut sheet forms and stickers down to 9 cm x 7 cm. LQ-630 can ideally be used with retail stores, banks, post offices, doctors’ surgeries, ticket shops, cinemas, pizza services. Moreover the printer is perfect for label and protocol printing with trade industrial firms.
| Printing | |
|---|---|
| Built-in barcodes | Code 39, POSTNET, UPC-A, UPC-E |
| Maximum number of copies | 5 copies |
| Maximum print speed | 360 cps |
| Maximum printing width (columns) | 80 |
| Colour | No |
| Paper handling | |
|---|---|
| Maximum print size | 254 x 559 mm |
| Features | |
|---|---|
| Country of origin | China |
| Sound pressure level (printing) | 57 dB |
| Buffer size | 32 KB |
| Product colour | Grey |
| Ports & interfaces | |
|---|---|
| Standard interfaces | Parallel, USB 2.0 |
| Endurance | |
|---|---|
| Mean time between failures (MTBF) | 6000 h |
| Ribbon life | 2 million characters |
| Print head life | 200 million characters |
| Print head | 24-pin |
| Power | |
|---|---|
| Power consumption (standby) | 4.8 W |
| AC input voltage | 220 – 240 V |
| Power consumption (typical) | 20 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 80% |
| Operating temperature (T-T) | 5 – 35 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3.5 kg |
| Height | 185 mm |
| Depth | 306 mm |
| Width | 386 mm |
| Packaging data | |
|---|---|
| Package weight | 5.2 kg |
| Package height | 265 mm |
| Package depth | 455 mm |
| Package width | 310 mm |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per pallet | 35 pc(s) |
| Pallet gross width | 120 cm |
| Pallet gross height | 100 cm |
| Products per pallet layer | 5 pc(s) |
| Products per pallet layer (UK) | 7 pc(s) |
| Products per pallet (UK) | 49 pc(s) |
| Pallet length (UK) | 2 m |
