Fractal Design FD-FAN-PRI-AL14-PWM-3P computer cooling system Computer case 14 cm Black, White 1 pc(s)
- Six individually addressable hub-mounted RGB LEDs
- Specially designed fan blades and outer ring produce an exceptionally uniform glow
- LLS (Long Life Sleeve) bearings provide silent operation with a long lifespan
- Integrated vibration-damping corners made from high-quality synthetic rubber
- Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency
- Aerodynamic stator struts with embedded wiring reduce noise and turbulence
- Chainable RGB cables simplify wiring and make the most of available connections
- PWM control with a wide speed range ideal for CPU heatsinks and radiators (PWM versions only)
- Black sleeved power cables offer an extra touch of style
- Asus AURA, Gigabyte Fusion, MSI Mystic Light, and ASRock Polychrome support
- Adjust R1 RGB controller (sold separately) enables physical control of colors and effects
- 3-pin/PWM versions and 120/140mm sizes available individually or in 3-pack sets

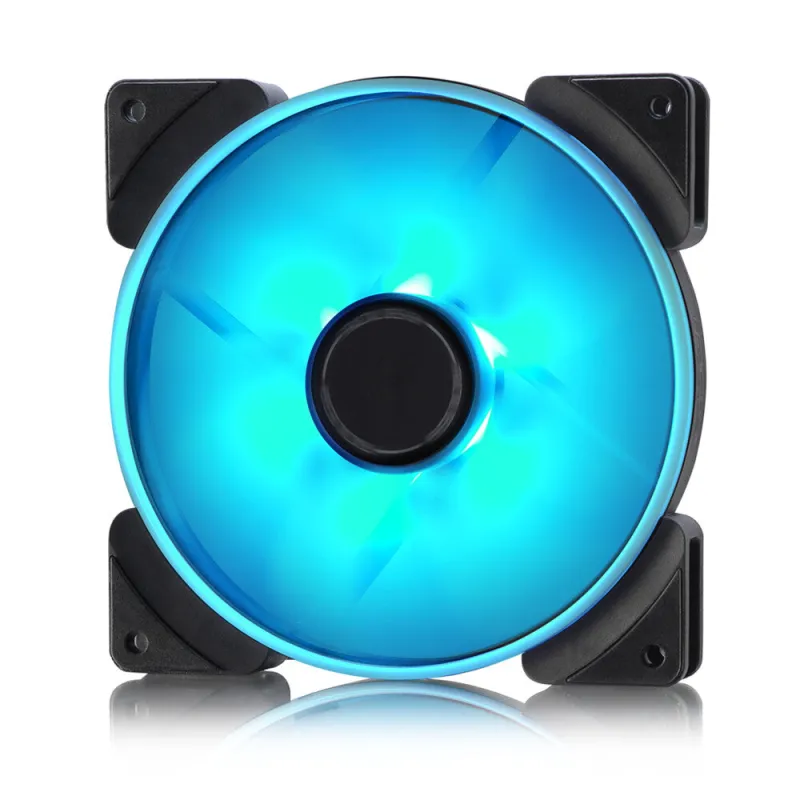

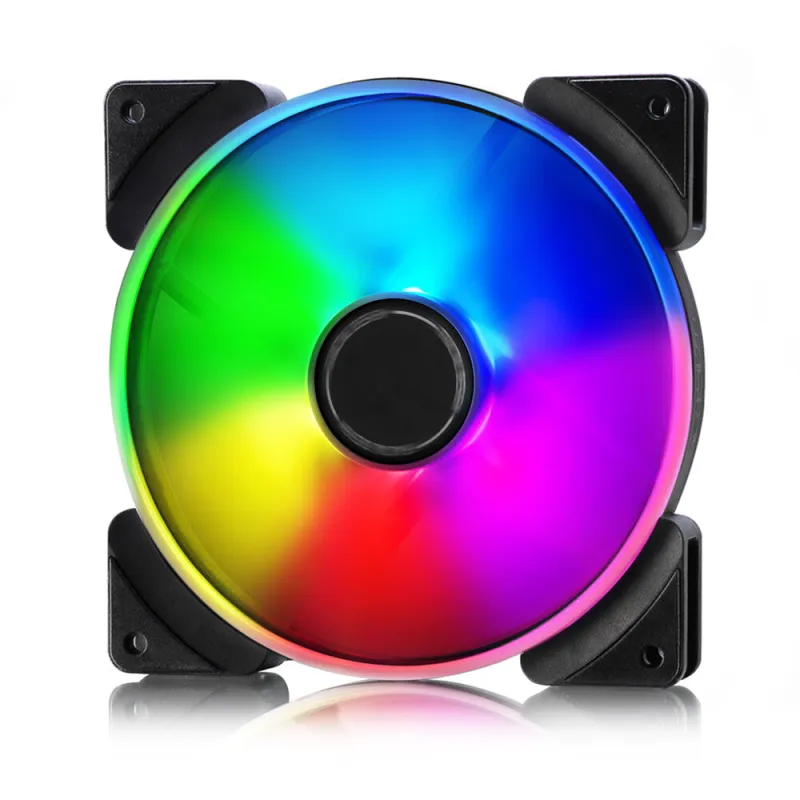

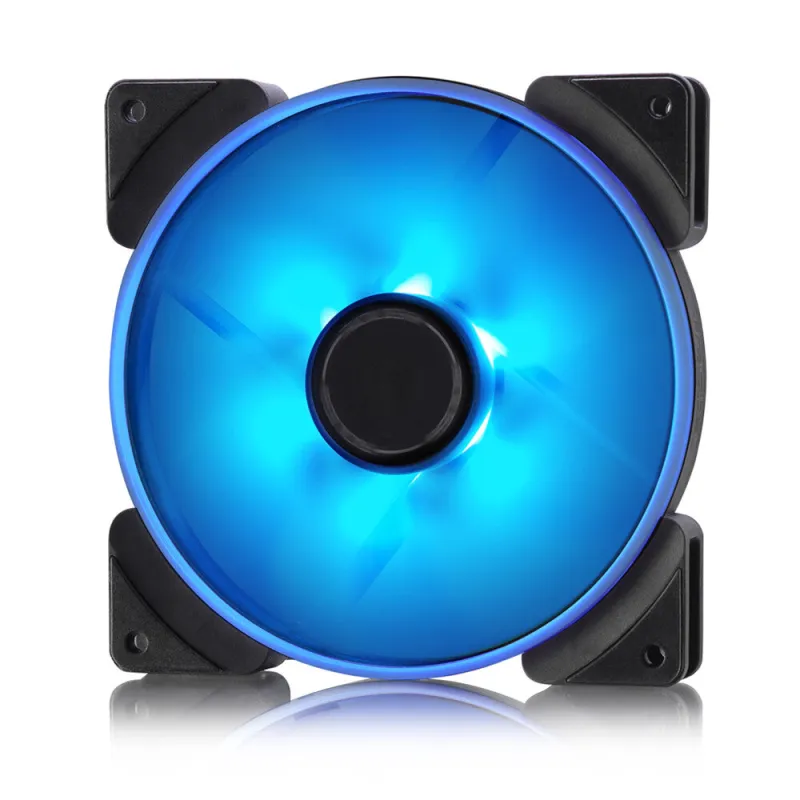

Fractal Design Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.
Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components. Those wanting more physical control can pair Prisma with the newly released Adjust R1 controller to set colors, brightness, and motion effects with the push of a button.
As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.
PWM and 3-pin versions are available in 120mm and 140mm sizes, each with single and 3-pack offerings to make your build shine brilliantly in any situation.
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Quantity per pack | 1 pc(s) |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.38 mmH2O |
| Airflow | 176.44 m³/h |
| Maximum airflow | 103.85 cfm |
| Minimum airflow (imperial) | 31.67 cfm |
| Noise level (high speed) | 34.1 dB |
| Noise level (low speed) | 15.1 dB |
| Rotational speed (max) | 1700 RPM |
| Rotational speed (min) | 500 RPM |
| Fan diameter | 14 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Number of LEDs | 6 |
| Illumination LED | Yes |
| Number of fan blades | 7 |
| Product colour | Black, White |
| Power | |
|---|---|
| LED voltage | 5 V |
| Rated current | 0.3 A |
| Starting voltage | 7 V |
| Voltage | 12 V |
| Power supply | 2.16 W |
| Weight & dimensions | |
|---|---|
| Package weight | 692 g |
| Package height | 30 mm |
| Package depth | 142 mm |
| Package width | 202 mm |
| Cable length | 0.5 m |
| Weight | 200 g |
| Height | 140 mm |
| Depth | 25 mm |
| Width | 140 mm |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
| Other features | |
|---|---|
| Country of origin | China |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
