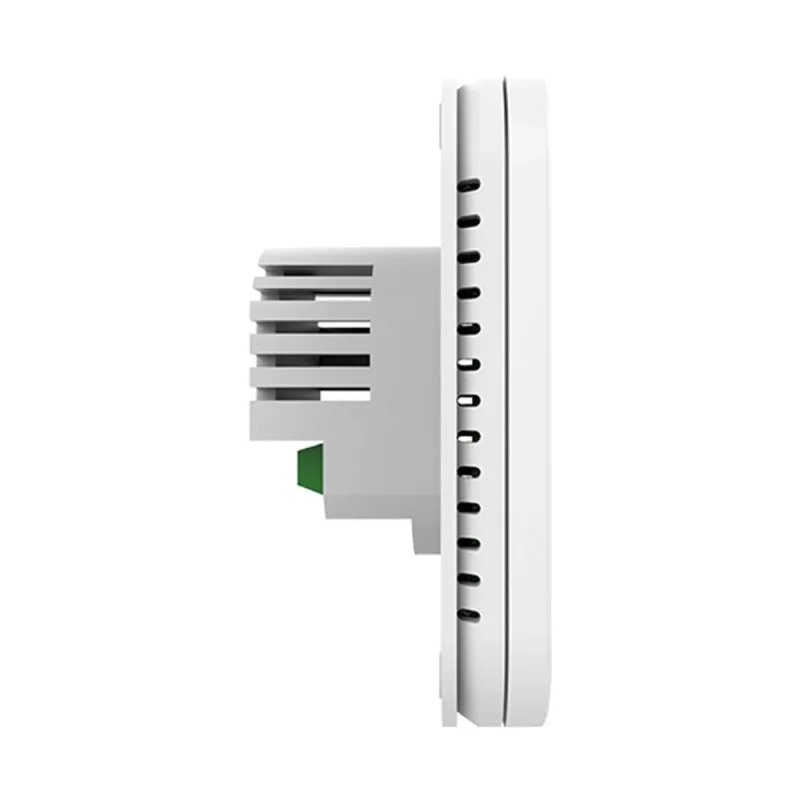

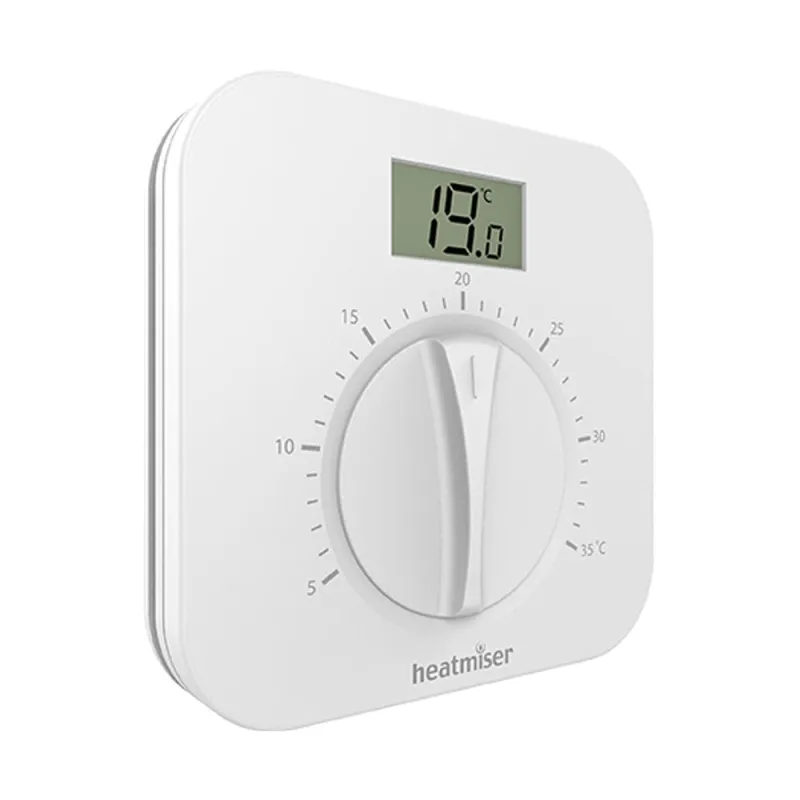

Heatmiser DS1-L V2 Dial Thermostat with Display
The Heatmiser DS1-L v2 Manual Dial Thermostat incorporates a digital display.
The following features are available on the DS1-L Manual Dial Thermostat
Flush Mounting
Remote Air Sensor Function: Probe Optional
LCD Shows Actual and Heat On Indication
Modern Appearance
Easily increase or decrease the required temperature
Variable Switching Differential
Range: 05-35°C
Supply: 230v
Outputs: Volt free 3A Max
Dimensions: 92mm x 92mm x 14mm (Height, Width, Depth, once installed)
This Manual Thermostat offers greater control when compared with standard bi-metallic thermostats.
This room thermostat requires at least 3 wires to operate (Live, Neutral and Switch wire) Please check your wiring and the manual download to ensure your system is compatible.
