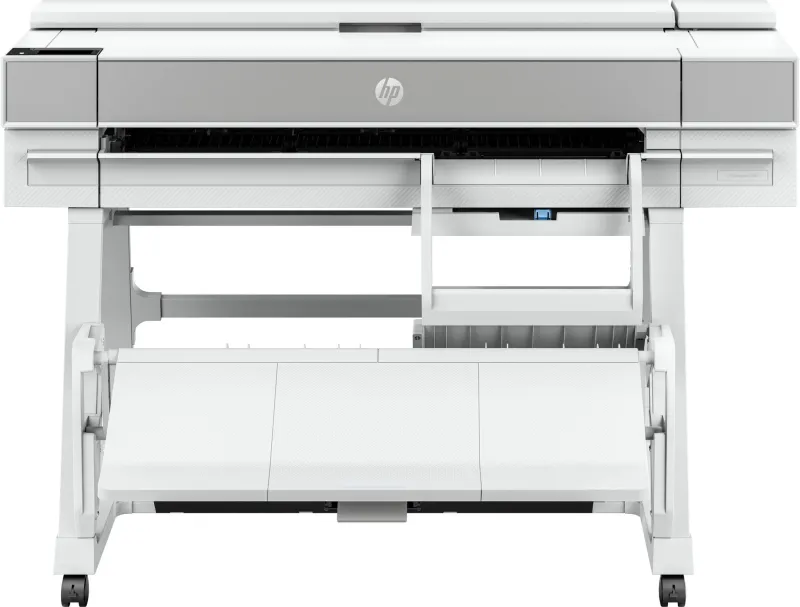

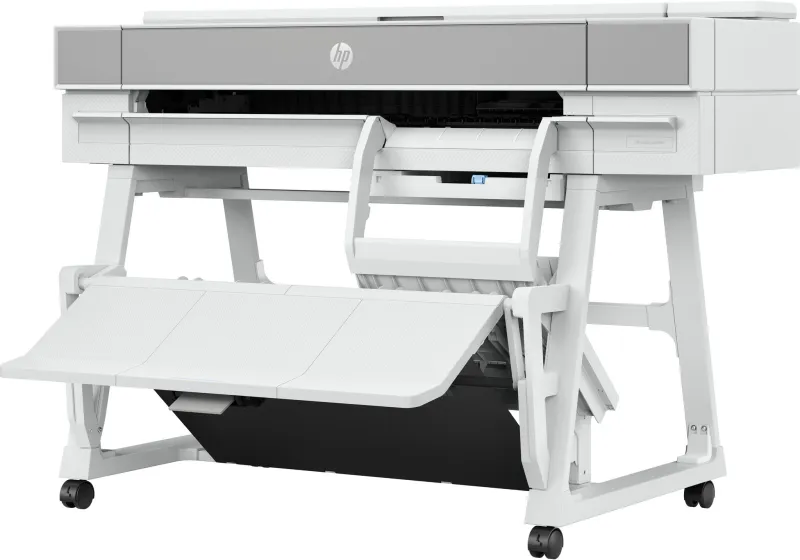

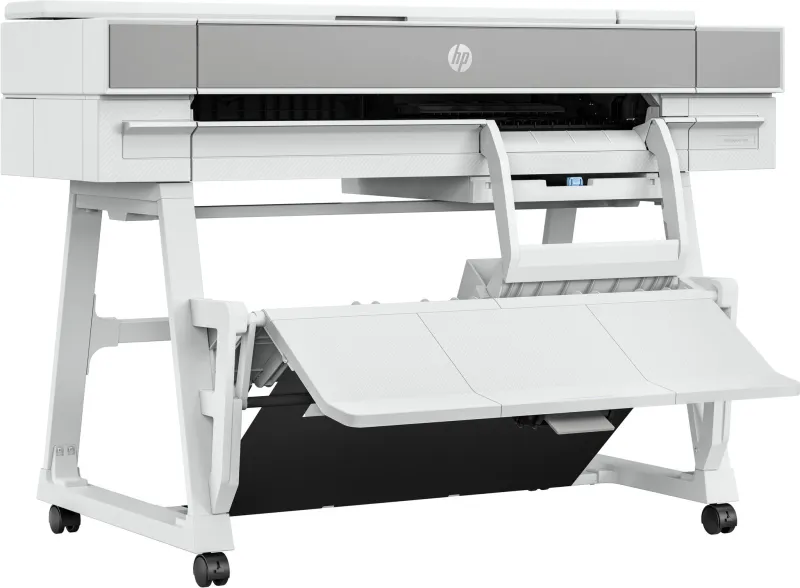

HP DesignJet T950 36-in Printer
Boost productivity with the world’s most efficient A4-A0 experience.[1] Do it all—print multi-size CAD and renders with the integrated input/output tray. Save time with HP Click. And go beyond with this robust and compact plotter.
Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.
| Printing |
| Print speed (normal quality, A1) |
120 pph |
| Printing colours |
Cyan, Magenta, Matte black, Yellow |
| Page description languages |
CALS G4, HP-GL/2, HP-RTL, JPEG, LIDIL, PDF, TIFF, URF |
| Number of print cartridges |
4 |
| Maximum resolution |
2400 x 1200 DPI |
| Colour |
Yes |
| Print technology |
Thermal inkjet |
| Paper handling |
| Roll weight (rear roll) |
13 kg |
| Maximum roll diameter |
14 cm |
| Maximum roll width |
91.4 cm |
| Media thickness |
0.3 mm |
| Stacker |
Yes |
| Cut sheets |
Yes |
| ISO A-series sizes (A0…A9) |
A0, A1, A2, A3, A4 |
| Paper tray media types |
Bond paper, Coated paper, Heavy paper, Plain paper |
| Maximum print size |
A0 (841 x 1189 mm) |
| Ports & interfaces |
| Mobile printing technologies |
HP ePrint |
| Ethernet LAN data rates |
1000 Mbit/s |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Performance |
| HP segment |
Business |
| Internal memory |
1000 MB |
| Product colour |
White |
| Power |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Power consumption (standby) |
0.2 W |
| Power consumption (typical) |
30 W |
| Power consumption (sleep) |
2.5 W |
| Operational conditions |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating altitude |
0 – 3000 m |
| Storage temperature (T-T) |
20 – 80 °C |
| Operating relative humidity (H-H) |
-25 – 55% |
| Operating temperature (T-T) |
5 – 240 °C |
| Sustainability |
| Sustainability certificates |
ENERGY STAR, EPEAT, ErP, UL ECOLOGO |
| Weight & dimensions |
| Weight |
56 kg |
| Height |
967 mm |
| Depth |
720 mm |
| Width |
1407 mm |
| Packaging data |
| Package weight |
84 kg |
| Package height |
780 mm |
| Package depth |
630 mm |
| Package width |
1575 mm |
| Technical details |
| Compliance certificates |
CE, REACH, RoHS |
