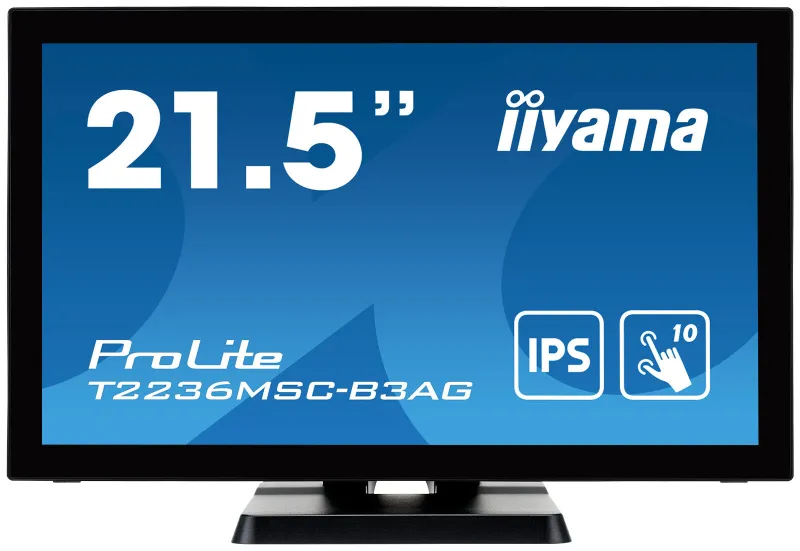

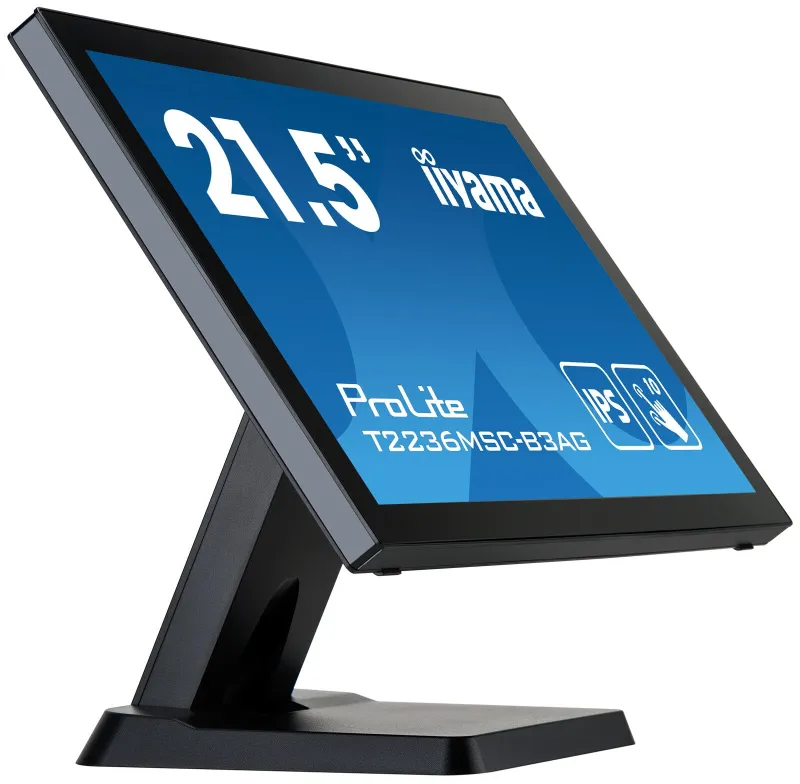

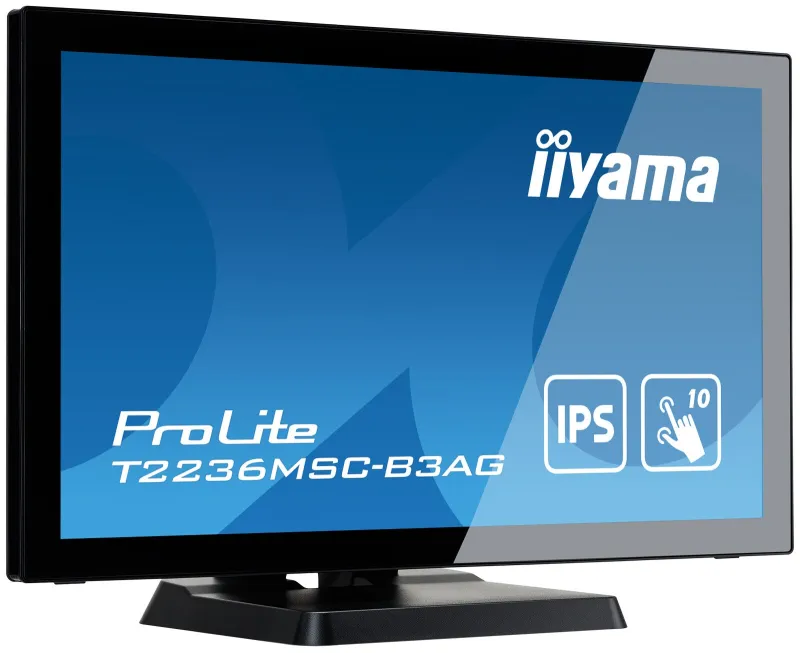

iiyama ProLite computer monitor 54.6 cm (21.5″) 1920 x 1080 pixels Full HD LED Touchscreen Table Black
- TOUCH TECHNOLOGY – CAPACITIVE
- SCRATCH RESISTANCE
- BLUE LIGHT REDUCER
- SPEAKERS
21.5″ 10 point touch monitor with edge-to-edge glass, IPS panel and AG coating
With its Full HD (1920×1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2236MSC-B3AG delivers seamless and accurate touch response. The IPS panel technology guarantees high performance with excellent colour reproduction and high contrast, making it an excellent choice for a vast array of demanding interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. The flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience.
IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
TOUCH TECHNOLOGY – CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
BLUE LIGHT REDUCER
As we all know looking at a monitor screen for several hours per day, especially form a closer distance, causes eye fatigue. This effect is much stronger with computer screens than with TV equipment. One of the factors responsible for this phenomenon is the blue light emitted by the screen. Therefore reducing the amount of blue light ultimately allows our eyes to feel less tired while working long hours with a computer screen. We achieved it by adjusting the monitor’s brightness and color temperature through a new feature called “Blue light reduction” easily accessible through the monitor’s OSD menu.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
Display | |
---|---|
Display diagonal (metric) | 54.7 cm |
Horizontal scan range | 30 – 80 kHz |
Pixel pitch | 0.248 x 0.248 mm |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 0 Hz |
Contrast ratio (dynamic) | 80000000:1 |
Contrast ratio (typical) | 1000:1 |
Aspect ratio | 5:4 |
Screen shape | Flat |
Response time | 5 ms |
Display brightness (typical) | 250 cd/m² |
Number of simultaneous touchpoints | 10 |
Touchscreen technology | Projected capacitive system |
Touchscreen type | Table |
Panel type | IPS |
HD type | Full HD |
Touchscreen | Yes |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 54.6 cm (21.5″) |
Performance | |
---|---|
Low Blue Light technology | Yes |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
Built-in camera | No |
RMS rated power | 2 W |
Number of speakers | 2 |
Built-in speaker(s) | Yes |
Design | |
---|---|
Product colour | Black |
Market positioning | Business |
Ports & interfaces | |
---|---|
HDCP | Yes |
Headphone out | No |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
DVI port | No |
VGA (D-Sub) ports quantity | 1 |
USB Type-A downstream ports quantity | 4 |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
Built-in USB hub | Yes |
Network | |
---|---|
Ethernet LAN | No |
Wi-Fi | No |
Ergonomics | |
---|---|
On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
Tilt angle range | 5 – 90° |
Height adjustment | No |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
European Product Registry for Energy Labelling (EPREL) code | 1140127 |
AC input frequency | 50/60 Hz |
AC input voltage | 100 – 240 V |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 1.5 W |
Power consumption (typical) | 14 W |
Energy consumption (HDR) per 1000 hours | 0 kWh |
Energy consumption (SDR) per 1000 hours | 0 kWh |
Energy efficiency class (HDR) | Not available |
Energy efficiency class (SDR) | E |
Weight & dimensions | |
---|---|
Weight (with stand) | 5.8 kg |
Height (with stand) | 367 mm |
Depth (with stand) | 254 mm |
Width (with stand) | 522.5 mm |
Packaging content | |
---|---|
Quick start guide | Yes |
Cables included | HDMI, Power, USB |
General | |
---|---|
Product family | ProLite |
Other features | |
---|---|
Certification | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA |
International Protection (IP) code | IP54 |
