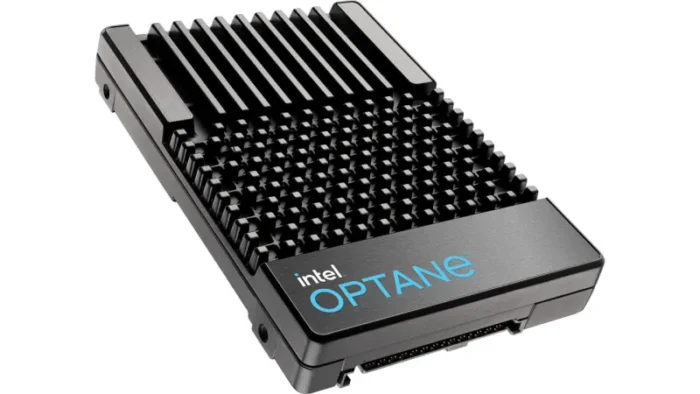

Intel Optane DC P5800X 800 GB 2.5″ PCI Express 4.0 NVMe Intel(R) Optane(TM) Memory Media
- 800 GB 2.5″ PCI Express 4.0
- Intel(R) Optane(TM) Memory Media NVMe
- Hardware encryption 256-bit AES
- Component for: Server/workstation
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
High Endurance Technology (HET)
High Endurance Technology (HET) in SSD’s combines Intel® NAND Flash Memory silicon enhancements and SSD system management techniques to help extend the endurance of the SSD. Endurance is defined as the amount of data that can be written to an SSD during its lifetime.
| Features |
| Mean time between failures (MTBF) |
2000000 h |
| Uncorrectable Bit Error Rate (UBER) |
< 1 per 10^17 bits read |
| SSD temperature monitoring |
Yes |
| Enhanced Power Loss Data Protection technology |
Yes |
| End-to-End Data Protection |
Yes |
| Write latency |
5 µs |
| Read latency |
5 µs |
| Random write (100% span) |
1350000 IOPS |
| Random read (100% span) |
1500000 IOPS |
| Security algorithms |
256-bit AES |
| Hardware encryption |
Yes |
| Component for |
Server/workstation |
| Memory type |
Intel(R) Optane(TM) Memory Media |
| NVMe |
Yes |
| Interface |
PCI Express 4.0 |
| SSD form factor |
2.5″ |
| SSD capacity |
800 GB |
| Power |
| Power consumption (idle) |
4.2 W |
| Brand-specific features |
| Intel High Endurance Technology (HET) |
Yes |
| Intel® Optane™ |
Yes |
| Weight & dimensions |
| Weight |
140 g |
| General |
| Product family |
Optane |
| Operational conditions |
| Non-operating vibration |
3.13 G |
| Operating vibration |
2.17 G |
| Minimum operating temperature |
0 °C |
| Maximum operating temperature |
70 °C |
| Operating temperature (T-T) |
0 – 70 °C |
| Other features |
| Launch date |
Q4’20 |
| SSD shock |
1000G,0.5ms |
| SSD endurance rating |
100 DWPD |
| Sequential reading |
7200 MB/s |
| Sequential writing speed |
6100 MB/s |
| Status |
Launched |
| Target market |
Artificial Intelligence, Cloud Computing, High Performance Computing |
| Internal memory type |
PCIe 4.0 x4, NVMe |
| Processor family |
Intel Optane SSD DC P5800X |
| Logistics data |
| Harmonized System (HS) code |
84717070 |
| Export Control Classification Number (ECCN) |
5A992C |
| Commodity Classification Automated Tracking System (CCATS) |
G162706 |
