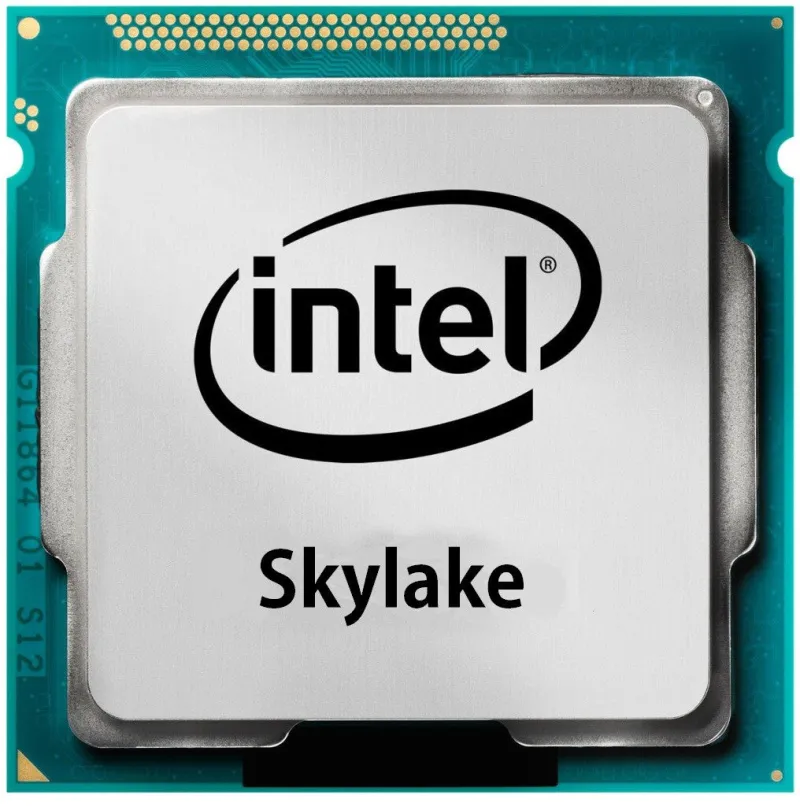

Intel Xeon E3-1280V5 processor 3.7 GHz 8 MB Smart Cache
- Intel® Xeon® E3 v5 E3-1280V5 3.7 GHz
- 8 MB Smart Cache LGA 1151 (Socket H4)
- Processor cores: 4 14 nm 64-bit 80 W
- Maximum internal memory supported by processor: 64 GB DDR4-SDRAM, DDR3L-SDRAM
Intel® Xeon® Processor E3-1200 v5 Product Family―A Versatile Platform to Meet a Range of Business Needs
Businesses of all sizes must keep up with market dynamics, evolving customer expectations, and the multitude of applications and data. They must be creative in how they support their customers and ultimately grow. Meet the latest Intel® Xeon® processor E3-1200 v5 product family-based platforms—a smart investment for a wide range of business needs and sizes.
Powerful Delivery
Support greater HD and UHD video transcode performance with up to 18 AVC video transcodes per processor and up to 2 HEVC transcodes per processor.
Brilliant Remote Applications
Deliver appealing, vivid applications to your remote users with the advanced graphics performance of Intel® Iris™ Pro Graphics P580.
Lower Costs
Unlock larger amounts of video content to more consumers and businesses with highly dense, multi-processor servers and appliances that can deliver HD and UHD video without the need for add-in graphics cards.
High Image Quality
Improve visual experiences with Intel® Media Server Studio, providing state-of-the-art encoding features and flexible selection of media encode speed and image quality combinations.
| Processor |
| Processor ARK ID |
88171 |
| Processor code |
SR2LC |
| Processor codename |
Skylake |
| Memory bandwidth supported by processor (max) |
34.1 GB/s |
| Bus type |
DMI3 |
| Stepping |
R0 |
| VID Voltage Range |
0.55 – 1.52 V |
| Thermal Design Power (TDP) |
80 W |
| Processor cache type |
Smart Cache |
| Processor cache |
8 MB |
| Processor boost frequency |
4 GHz |
| Processor operating modes |
64-bit |
| System bus rate |
8 GT/s |
| Processor threads |
8 |
| Processor series |
Intel Xeon E3-1200 v5 |
| Component for |
Server/workstation |
| Cooler included |
No |
| Box |
No |
| Processor lithography |
14 nm |
| Processor socket |
LGA 1151 (Socket H4) |
| Processor cores |
4 |
| Processor base frequency |
3.7 GHz |
| Processor model |
E3-1280V5 |
| Processor family |
Intel® Xeon® E3 v5 |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
Yes |
| Memory channels |
Dual-channel |
| Memory voltage supported by processor |
1.35 V |
| Memory clock speeds supported by processor |
1333,1600,1866,2133 MHz |
| Memory types supported by processor |
DDR4-SDRAM, DDR3L-SDRAM |
| Maximum internal memory supported by processor |
64 GB |
| Graphics |
| On-board graphics card 4K support |
No |
| Features |
| Commodity Classification Automated Tracking System (CCATS) |
G077159 |
| Export Control Classification Number (ECCN) |
5A992C |
| Scalability |
1S |
| Embedded options available |
No |
| PCI Express CEM revision |
3.0 |
| Graphics & IMC lithography |
14 nm |
| CPU configuration (max) |
1 |
| Supported instruction sets |
SSE4.1, SSE4.2, AVX 2.0 |
| PCI Express configurations |
1×16, 2×8, 1×8+2×4 |
| PCI Express slots version |
3.0 |
| Maximum number of PCI Express lanes |
16 |
| Market segment |
Server |
| Execute Disable Bit |
Yes |
| Idle States |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Processor special features |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) |
No |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Intel Secure Key Technology version |
1.00 |
| Intel 64 |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel® Secure Key |
Yes |
| Intel Clear Video Technology |
No |
| Intel TSX-NI |
Yes |
| Intel® OS Guard |
Yes |
| Intel Enhanced Halt State |
Yes |
| Intel® vPro™ Platform Eligibility |
Yes |
| Intel® Boot Guard |
Yes |
| Intel TSX-NI version |
1.00 |
| Conflict-Free processor |
Yes |
| Intel® Transactional Synchronization Extensions |
Yes |
| Intel® Turbo Boost Technology 2.0 frequency |
4 GHz |
| Intel® Wireless Display (Intel® WiDi) |
No |
| Intel® Insider™ |
No |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel® Quick Sync Video Technology |
No |
| Intel® InTru™ 3D Technology |
No |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
No |
| Intel® Memory Protection Extensions (Intel® MPX) |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| General |
| Product family |
Xeon |
| Logistics data |
| Harmonized System (HS) code |
8542310001 |
| Technical details |
| Maximum resolution & refresh rate (VGA) |
N/A |
| Maximum resolution (WiDi) |
N/A |
| Bus bandwidth |
8 |
| Bus type units |
GT/s |
| Maximum resolution & refresh rate (HDMI) |
N/A |
| Maximum resolution & refresh rate (Integrated Flat Panel) |
N/A |
| Processor brand name |
Intel Xeon |
| Last change |
63903513 |
| Product family |
Intel Xeon Processor E3 v5 Family |
| Launch date |
Q4’15 |
| Status |
Discontinued |
| Maximum resolution & refresh rate (DisplayPort) |
N/A |
| Maximum memory |
64 GB |
| Bus speed |
8 GT/s |
| Processor cache |
8192 KB |
| Supported memory types |
DDR4-SDRAM, DDR3L-SDRAM |
| Product type |
Processor |
| Weight & dimensions |
| Processor package size |
37.5 x 37.5 mm |
| Other features |
| Graphics output |
N/A |
| Maximum internal memory |
64 GB |
| Compatibility |
Intel Server System R1304SPOSHBNIntel Server System R1304SPOSHORIntel Server System R1208SPOSHORIntel Server Board S1200SPLIntel Server Board S1200SPSIntel Server Board S1200SPO |
