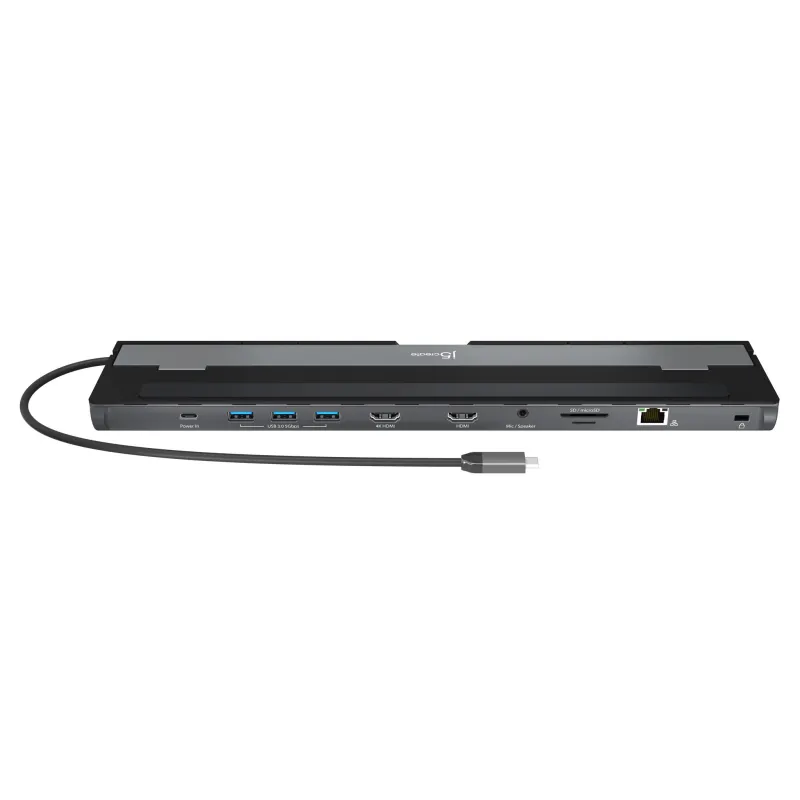

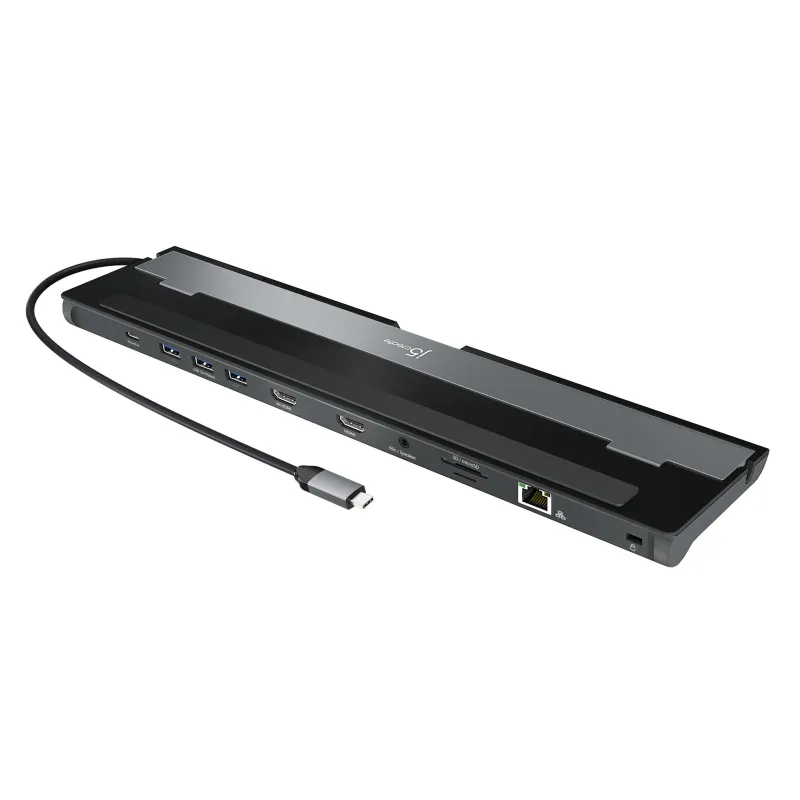

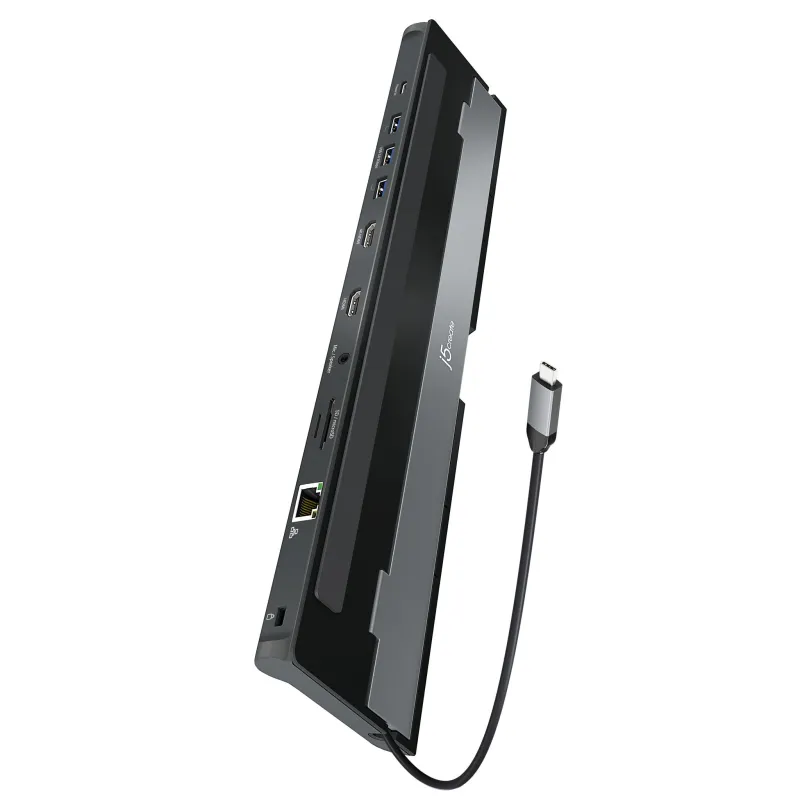

j5create JCD542-N USB-C® Dual HDMI™ Docking Station, includes 2x HDMI ports and 4x USB ports, Grey & Black
- Dual displays via HDMI™ outputs
- Up to 100W power pass-through to charge your laptop and power the connected peripherals when used with a USB-C® power adapter
- Connect and charge your USB™ devices with 3 x USB™ ports
- Reliable network connectivity via the Gigabit Ethernet port
- Direct access to SD™ & microSD™ memory cards for data storage and transfer
- 3.5mm audio jack to connect microphone/headphone
- Security lock slot for anti-theft protection
- Convenience setup with double-sided cable storage compartment
- Heat-eliminating design
This dual display docking station adds dual HDMI™ monitors, with resolution support up to 4K (3840 x 2160) on one display and up to 2K (2048 x1152) or 1080p on the other display. You can also use your laptop screen for three displays in total, making it easy to access multiple applications at once.
This USB™ 3.0 docking station comes equipped with all the connections you need including three USB™ 3.0 ports, a RJ45 Gigabit Ethernet port, memory card reader/writer, combo audio jack, and a USB-C® port supporting up to 100W Power Delivery. It also includes a security lock slot to protect against theft, making it perfect for use in business organizations. With its slim and heat-dissipating design along with the double-sided cable storage compartment, this USB-C® dock ensures an easy connection regardless of your USB-C® port’s location and can easily fit into any workspace environment.
| Ports & interfaces | |
|---|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 2 |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| USB Power Delivery (USB PD) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
|---|---|
| Country of origin | Taiwan |
| Housing material | Aluminium |
| Hub interfaces | 3.5mm, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Number of displays supported | 2 |
| Maximum refresh rate | 30 Hz |
| HD type | 4K Ultra HD |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Card reader integrated | Yes |
| Product colour | Black, Grey |
| Power | |
|---|---|
| Power consumption (typical) | 4.5 W |
| Output voltage | 20 V |
| Output current | 0.9 A |
| Power supply type | USB |
| Software | |
|---|---|
| Mac operating systems supported | Mac OS X 10.11 El Capitan |
| Windows operating systems supported | Windows 10 |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -10 – 65 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 307 g |
| Height | 22 mm |
| Depth | 350.2 mm |
| Width | 82.5 mm |
| Packaging data | |
|---|---|
| Package weight | 405 g |
| Package height | 28 mm |
| Package depth | 358 mm |
| Package width | 88.3 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Cables included | USB Type-C |
| Manual | Yes |
| Quick start guide | Yes |
| Packaging content | 1 x JCD542 USB-C® Dual HDMI™ Docking Station, 1 x Quick Installation Guide (QIG) |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Other features | |
|---|---|
| Maximum operating temperature | 40 °C |
| Cable length | 0.45 m |
