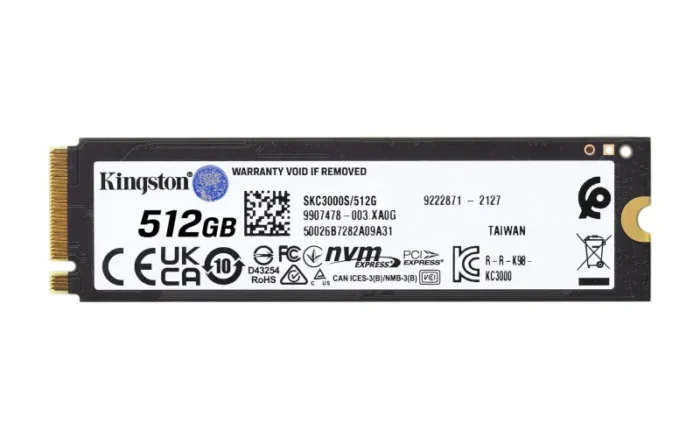

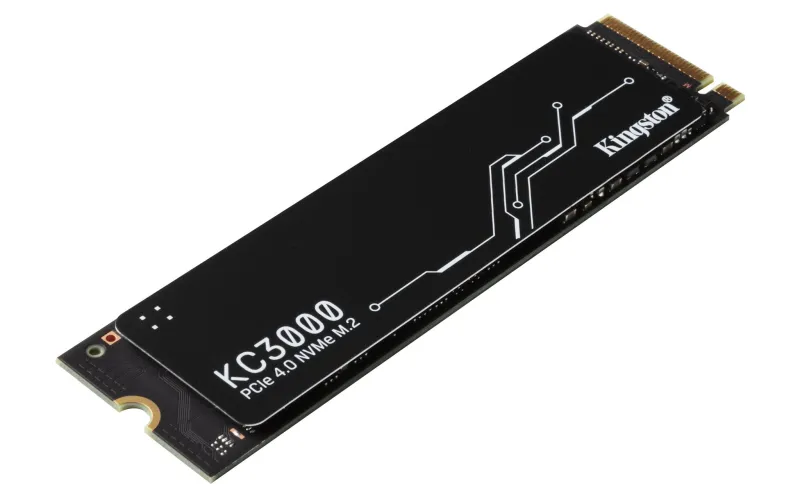

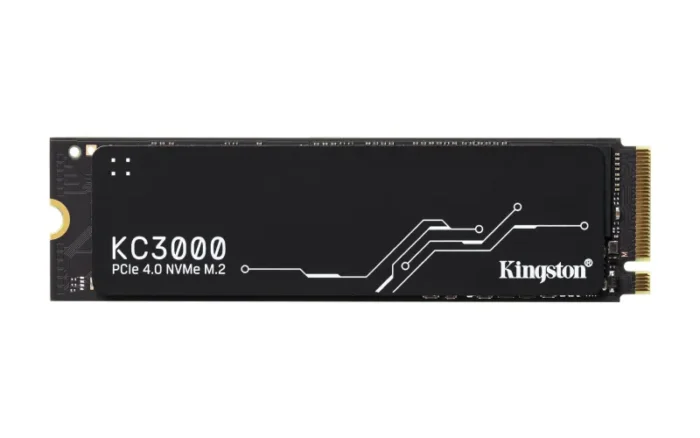

Kingston Technology 512G KC3000 M.2 2280 NVMe SSD
- PCIe 4.0 NVMe high-performance
- Upgrade with full capacities up to 4096GB**
- Compact M.2 2280 form factor
- Low profile graphene aluminium heat spreader
Kingston KC3000 PCIe 4.0 NVMe M.2 SSD delivers next-level performance using the latest Gen 4×4 NVMe controller and 3D TLC NAND. Upgrade the storage and reliability of your system to keep up with demanding workloads and experience better performance with software applications such as 3D rendering and 4K+ content creation. With formidable speeds up to 7,000MB/s* read/write, it ensures improved workflow in high-performance desktop and laptop PCs making it ideal for power users who require the fastest speeds on the market.
The compact M.2 2280 design fits seamlessly into motherboards and gives greater flexibility where high-power users appreciate responsiveness and superior loading times.
Full capacities available from 512GB–4096GB** to meet your data storage requirements.
PCIe 4.0 NVMe technology
Master intensive applications with speeds of up to 7,000/7,000MB/s* read/write.
Store more
Upgrade and manage storage with full capacities of up to 4096GB**.
Greater flexibility
Compact M.2 design fits easily into small-form-factor (SFF) systems, desktops and laptop PCs.
Low-profile graphene aluminium heat spreader
Exceptional thermal dissipation keeps your drive cool with maximum performance.
| Features | |
|---|---|
| TBW rating | 400 |
| Mean time between failures (MTBF) | 1800000 h |
| Controller type | Phison E18 |
| Random write (4KB) | 900000 IOPS |
| Random read (4KB) | 450000 IOPS |
| Write speed | 3900 MB/s |
| Read speed | 7000 MB/s |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Component for | PC/Laptop |
| Memory type | 3D TLC |
| NVMe | Yes |
| Interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| SSD capacity | 512 GB |
| Power | |
|---|---|
| Power consumption (idle) | 0.005 W |
| Power consumption (average) | 0.34 W |
| Power consumption (write) | 4.1 W |
| Power consumption (read) | 2.7 W |
| Weight & dimensions | |
|---|---|
| Weight | 7 g |
| Height | 2.21 mm |
| Depth | 22 mm |
| Width | 80 mm |
| Packaging data | |
|---|---|
| Package weight | 31.33 g |
| Package height | 184.2 mm |
| Package depth | 8.38 mm |
| Package width | 129.5 mm |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 – 85 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Other features | |
|---|---|
| Cooling type | Heatsink |
| Logistics data | |
|---|---|
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case gross weight | 391.29 g |
| Master (outer) case height | 69.8 mm |
| Master (outer) case length | 203.2 mm |
| Harmonized System (HS) code | 84717070 |
| Master (outer) case width | 135.9 mm |
| Country of origin | China, Taiwan |
