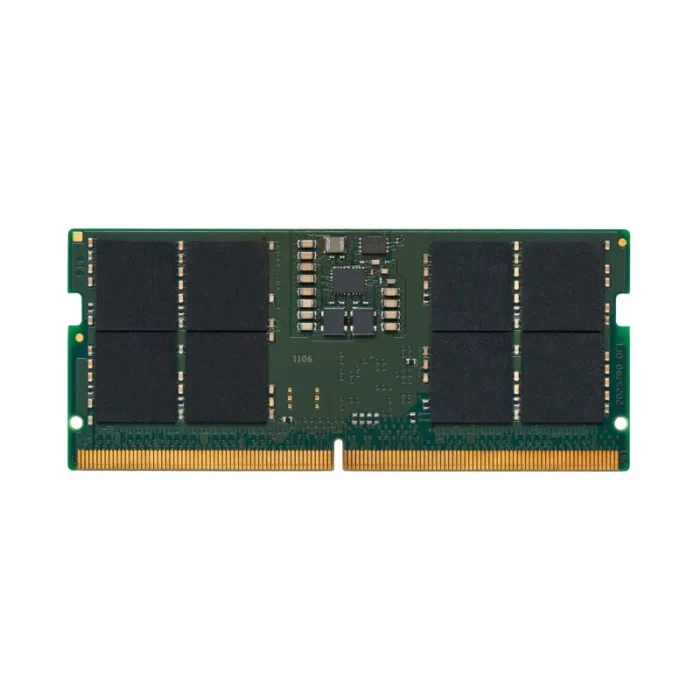

Kingston Technology ValueRAM KVR56S46BS8-16 memory module 16 GB 1 x 16 GB DDR5 5600 MHz
- Laptop 16 GB DDR5 5600 MHz
- 262-pin SO-DIMM 1 x 16 GB
- CAS latency: 46
- 1.1 V
ValueRAM’s KVR56S46BS8-16 is a 2G x 64-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers.
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- PCB: Height 1.18” (30.00mm)
- RoHS Compliant and Halogen-Free
| Features |
| Lead plating |
Gold |
| SPD profile |
Yes |
| Module configuration |
2048M x 64 |
| Memory voltage |
1.1 V |
| Memory ranking |
1 |
| CAS latency |
46 |
| On-Die ECC |
Yes |
| ECC |
No |
| Memory form factor |
262-pin SO-DIMM |
| Component for |
Laptop |
| Memory clock speed |
5600 MHz |
| Internal memory type |
DDR5 |
| Memory layout (modules x size) |
1 x 16 GB |
| Internal memory |
16 GB |
| Buffered memory type |
Unregistered (unbuffered) |
| Operational conditions |
| Storage temperature (T-T) |
-55 – 100 °C |
| Operating temperature (T-T) |
0 – 85 °C |
| General |
| Product family |
ValueRAM |
| Technical details |
| Compliance certificates |
RoHS |
| Sustainability |
| Doesn’t contain |
Halogen |
| Weight & dimensions |
| Height |
30 mm |
| Width |
69.6 mm |
