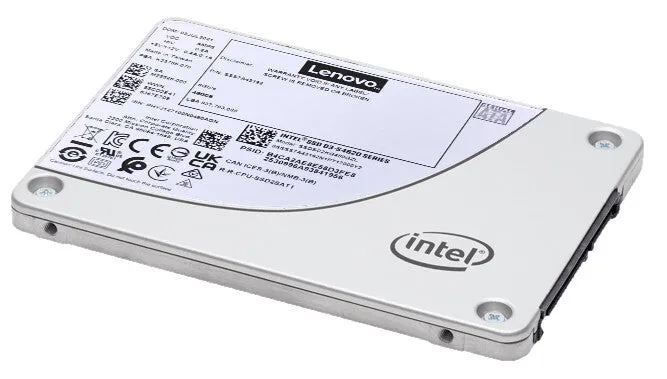

Lenovo 4XB7A17125 internal solid state drive 480 GB 2.5″ Serial ATA III 3D TLC NAND
- 480 GB 2.5″ Serial ATA III
- Read speed: 550 MB/s 82000 IOPS
- Write speed: 500 MB/s 50000 IOPS
- 3D TLC NAND
- Hardware encryption 256-bit AES
- S.M.A.R.T. support
- Component for: Server/workstation
By combining the latest Intel 3D NAND TLC Flash Memory technology with Intel’s latest controller technology, the design of the S4620 SSDs delivers consistent performance, reduced power consumption, and end-to-end data protection, as well as being optimized for IOPS/watt and cost/IOPS.
Rigorous testing of S4620 SSDs by Lenovo through the ServerProven program assures a high degree of storage subsystem compatibility and reliability.
| Features | |
|---|---|
| Certification | FCC Title 47, Part 15B, Class BEN-55035:2017EN-55022:2006EN-55032:2012Low Voltage Directive (LVD) 2014/35/EUEMC Directive 2014/30/EURoHS Directive 2011/65/EUWEEE Directive 2012/19/EUUL 60950-1, 2nd Edition, 2014-10-14CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-010UL/CSA 62368-1, 2nd EditionAS/NZ CISPR 32:2015AS/NZ CISPR 22:2009 +A1:2010Taiwan BSMI EMC standard CNS 13438Korea KCC Article 11.1Morocco Decree # 2574-14 (EMC)Canada ICES-003Japan VCCIChina EFUP |
| Mean time between failures (MTBF) | 2000000 h |
| Hot-swap | Yes |
| S.M.A.R.T. support | Yes |
| Write latency | 36 µs |
| Read latency | 36 µs |
| Random write (4KB) | 50000 IOPS |
| Random read (4KB) | 82000 IOPS |
| Write speed | 500 MB/s |
| Read speed | 550 MB/s |
| Data transfer rate | 6 Gbit/s |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Component for | Server/workstation |
| Memory type | 3D TLC NAND |
| Interface | Serial ATA III |
| SSD form factor | 2.5″ |
| SSD capacity | 480 GB |
| Power | |
|---|---|
| Power consumption (write) | 3 W |
| Weight & dimensions | |
|---|---|
| Weight | 70 g |
| Height | 7 mm |
| Depth | 100 mm |
| Width | 70 mm |
| Packaging data | |
|---|---|
| Package weight | 434 g |
| Package height | 63 mm |
| Package depth | 133 mm |
| Package width | 174 mm |
| Operational conditions | |
|---|---|
| Maximum operating altitude | 3050 m |
| Non-operating shock | 1000 G |
| Operating shock | 1000 G |
| Non-operating vibration | 3.13 G |
| Operating vibration | 2.17 G |
| Operating relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | 0 – 70 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
