Lenovo 4XC1Q24436 network card Internal WWAN 1000 Mbit/s
- LTE-A CAT16 module with M.2 form factor
- Supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou and Galileo)
- Worldwide LTE-A and UMTS/HSPA+ coverage
- Supports PCIe standard interface for PC/Laptop application and multi-constellation GNSS
- Dimension: 30 mm x 42 mm x 2.3 mm

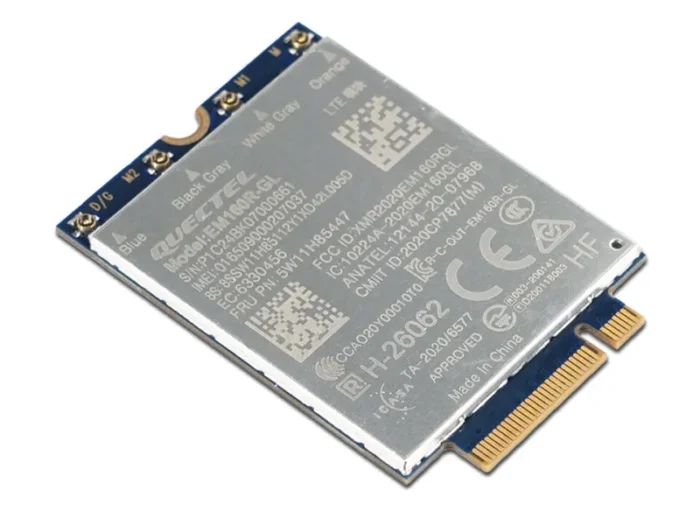

ThinkPad Quectel EM160R-GL 4G LTE-A Cat 16 M.2 WWAN Module for X1 Carbon Gen 12/P16v Gen 2 is an LTE advanced category 16 module. Adopting the 3GPP Release 14 technology, it delivers speed of 1.0 Gbps downlink and 150 Mbps uplink peak data rates, and is designed in M.2 form factor.
| Ports & interfaces | |
|---|---|
| Interface | WWAN |
| Host interface | M.2 |
| Connectivity technology | Wireless |
| Network | |
|---|---|
| Mobile network generation | 4G |
| Maximum data transfer rate | 1000 Mbit/s |
| Design | |
|---|---|
| Compatible products | ThinkPad P14 Series-P14s AMD G5ThinkPad P16 Series-P16v G2ThinkPad X1 series-X1 Carbon G12 |
| Certification | NCC/ANATEL/SRRC/NAL/CCC/CE/FCC/IC/RCM/PTCRB/GCF/KC/JATE/TELEC/NBTC/IMDA/ICASA |
| Antenna design | Internal |
| Component for | Laptop |
| Internal | Yes |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -40 – 90 °C |
| Operating temperature (T-T) | -40 – 75 °C |
| Weight & dimensions | |
|---|---|
| Weight | 6.8 g |
| Height | 2.3 mm |
| Depth | 30 mm |
| Width | 42 mm |
| Packaging data | |
|---|---|
| Package weight | 30 g |
| Package height | 177 mm |
| Package depth | 144 mm |
| Package width | 53 mm |
