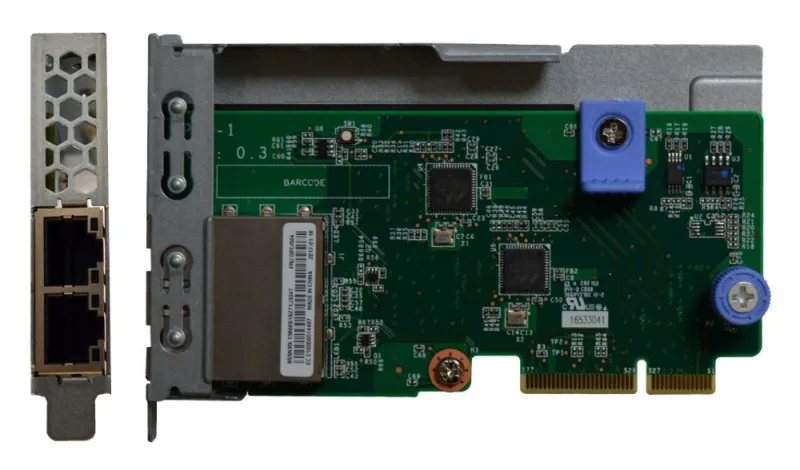

Lenovo 7ZT7A00544 network card Internal Ethernet 1000 Mbit/s

• Wired
• PCI Express Ethernet
• Gigabit Ethernet 1000 Mbit/s 10/100/1000BaseT(X)
• Internal Chipset: Intel® C624

Abstract

The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 “Lewisburg” PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LOM adapter cards and onboard connectors to provide a comprehensive 1 GbE / 10 GbE networking solution for ThinkSystem customers.

This product guide provides essential presales information to understand the X722 controller and ThinkSystem LOM adapter offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ThinkSystem Ethernet solution and consider its use in IT solutions.

Introduction

The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 “Lewisburg” PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LAN-on-motherboard (LOM) adapter cards and onboard connectors to provide a comprehensive 1 GbE / 10 GbE networking solution for ThinkSystem customers.

ThinkSystem servers support either 10 Gb Ethernet copper or optical connections, or Gigabit Ethernet connections depending on the server model.

The following figure shows the ThinkSystem 10Gb 4-port SFP+ LOM adapter which provides four SFP+ cages for optical or direct-attach copper (DAC) connectivity.
