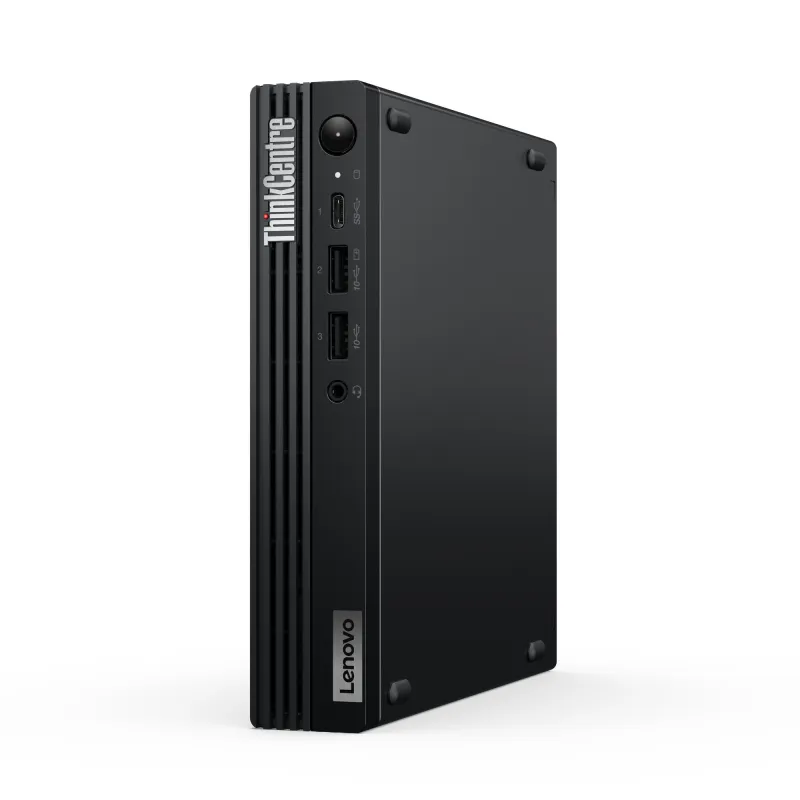

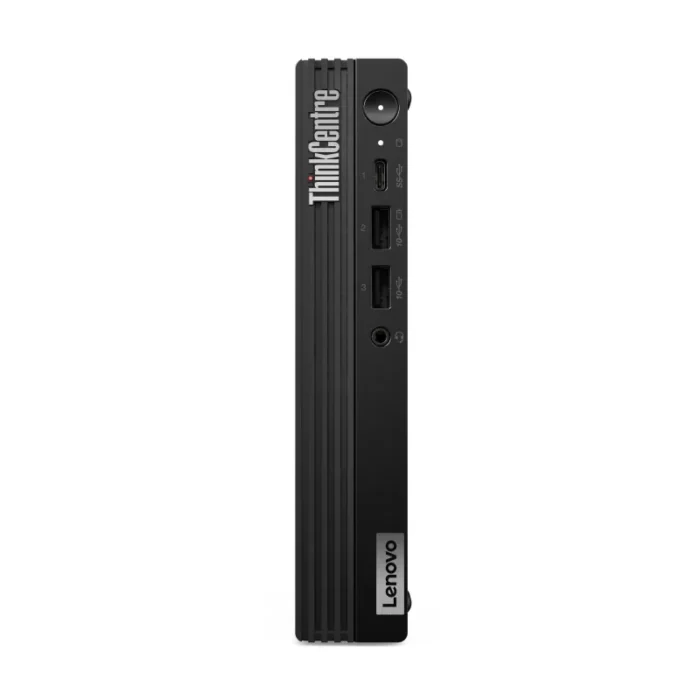

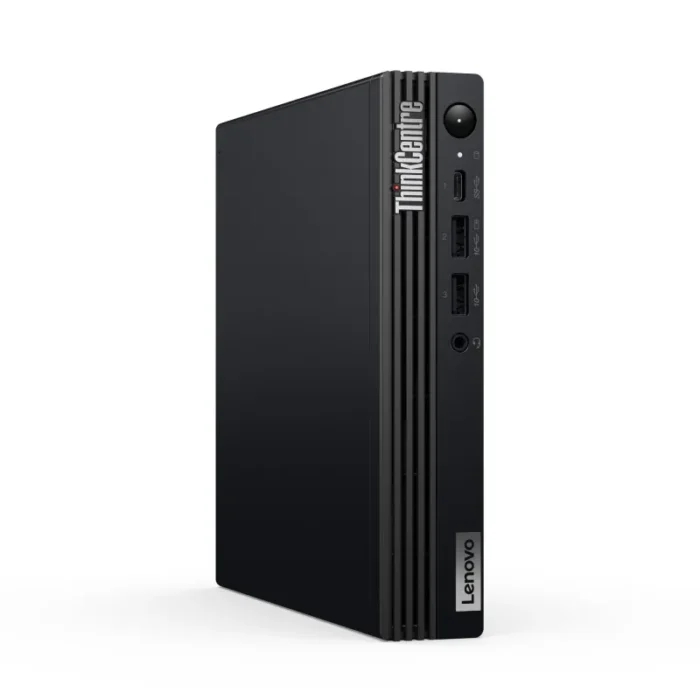

Lenovo ThinkCentre M70q Gen 5 Intel® Core™ i5 i5-14400T 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
- Intel Core i5-14400T, 10C (6P + 4E)/16T, P-core 1.5/4.5GHz, E-core 1.1/3.2GHz, 20MB
- 1x 16GB SO-DIMM DDR5-4800
- 512GB SSD M.2 2280 PCIe 4.0×4 NVMe Opal
- Intel UHD Graphics 730
- Windows 11 Pro
Big Performance in a Compact PC
– High-performing business desktop that fits anywhere, even horizontally positioned
– Optimized workloads with up to Intel® Core™ performance
– Fast data processing with dual-channel memory
– Enhanced privacy & enterprise-grade security
| Processor |
| Processor base power |
35 W |
| Maximum turbo power |
82 W |
| Number of processors installed |
1 |
| Processor cache type |
Smart Cache |
| Processor cache |
20 MB |
| Efficient-core base frequency |
1.1 GHz |
| Performance-core base frequency |
1.5 GHz |
| Efficient-core Max Turbo Frequency |
3.2 GHz |
| Performance-core Max Turbo Frequency |
4.5 GHz |
| Efficient cores |
4 |
| Performance cores |
6 |
| Processor boost frequency |
4.5 GHz |
| Processor threads |
16 |
| Processor cores |
10 |
| Processor model |
i5-14400T |
| Processor generation |
Intel® Core™ i5 (14th gen) |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
| Memory channels |
Dual-channel |
| ECC |
No |
| Non-ECC |
Yes |
| Memory clock speed |
4800 MHz |
| Memory slots |
2x DIMM |
| Memory layout (slots x size) |
1 x 16 GB |
| Internal memory type |
DDR5-SDRAM |
| Maximum internal memory |
64 GB |
| Internal memory |
16 GB |
| Storage |
| Card reader integrated |
No |
| M.2 SSD size |
2280 (22 x 80 mm) |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
Intel UHD Graphics 730 |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Antenna type |
2×2 |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer |
Intel |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Number of front audio ports |
1 |
| M.2 card slot (wireless) |
1 |
| M.2 card slot (storage) |
2 |
| Number of rear USB ports |
4 |
| Number of front USB ports |
3 |
| Combo headphone/mic port |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPort version |
1.4a |
| DisplayPorts quantity |
1 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 2.0 ports quantity |
1 |
| Design |
| Product colour |
Black |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| VESA mounting |
Yes |
| Volume |
1 L |
| Colour name |
Black |
| Chassis type |
Mini PC |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Password protection type |
BIOS, HDD, Power on, Supervisor |
| Password protection |
Yes |
| Number of speakers |
1 |
| Built-in speaker(s) |
Yes |
| Audio system |
High Definition Audio |
| Audio chip |
Realtek ALC233VB |
| Motherboard chipset |
Intel Q670 |
| Product type |
Mini PC |
| Software |
| Operating system language |
English |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Power |
| Power supply input frequency |
50/60 Hz |
| Power supply input voltage |
100 – 240 V |
| Power supply |
90 W |
| Operational conditions |
| Non-operating altitude |
0 – 12192 m |
| Operating altitude |
0 – 3048 m |
| Storage relative humidity (H-H) |
10 – 90% |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-40 – 60 °C |
| Operating temperature (T-T) |
5 – 35 °C |
| Certificates |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
ENERGY STAR, EPEAT Silver, ErP, GREENGUARD, TCO |
| Weight & dimensions |
| Package weight |
3.2 kg |
| Package height |
250 mm |
| Package depth |
128 mm |
| Package width |
490 mm |
| Weight |
1.25 kg |
| Height |
36.5 mm |
| Depth |
182.9 mm |
| Width |
179 mm |
| Packaging content |
| Keyboard included |
Yes |
| Keyboard connectivity |
Wired |
| Mouse included |
Yes |
| Mouse connectivity |
Wired |
| Display included |
No |
| General |
| Product family |
ThinkCentre |
| Product series |
M |
