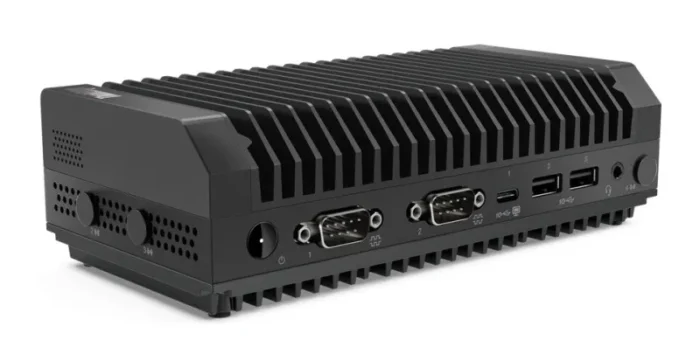

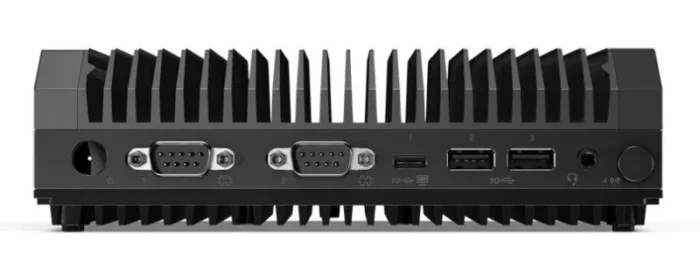

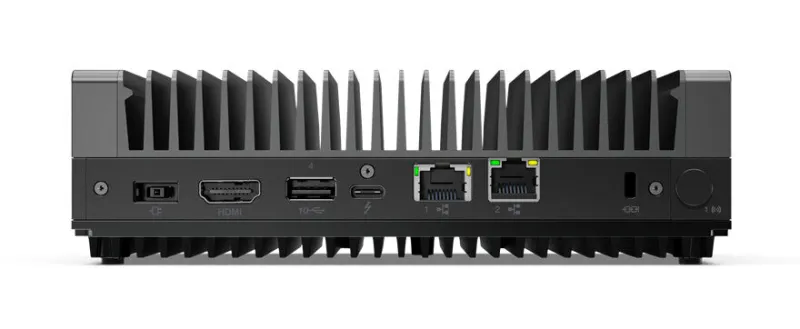

Lenovo ThinkEdge SE30 Intel® Core™ i3 i3-1115GRE 8 GB DDR4-SDRAM 256 GB SSD Windows 10 IoT Enterprise Mini PC Black
- Intel Core i3-1115GRE (2C/4T, 2.2/3.9GHz, 6MB)
- 8GB DDR4-3200
- 256GB SSD M.2 2230 PCIe 3.0 NVMe
- Intel UHD Graphics
- Windows 10 IoT Enterprise
An IoT game changer
Tackling demanding tasks in demanding environments is what the ThinkEdge SE30 was designed for. Powered by the latest 11th Gen Intel® Core™ i5 vPro® processors for industrial computing and high-speed DDR4 memory, the SE30 is ready-built for challenging edge applications.
| Processor |
| Number of processors installed |
1 |
| Configurable TDP-down |
12 W |
| Configurable TDP-down frequency |
1.7 GHz |
| Configurable TDP-up frequency |
3 GHz |
| Configurable TDP-up |
28 W |
| Processor cache |
6 MB |
| Processor frequency |
2.2 GHz |
| Processor boost frequency |
3.9 GHz |
| Processor threads |
4 |
| Processor cores |
2 |
| Processor model |
i3-1115GRE |
| Processor generation |
11th gen Intel® Core™ i3 |
| Processor family |
Intel® Core™ i3 |
| Processor manufacturer |
Intel |
| Memory |
| Memory clock speed |
3200 MHz |
| Internal memory type |
DDR4-SDRAM |
| Maximum internal memory |
8 GB |
| Internal memory |
8 GB |
| Storage |
| SSD form factor |
M.2 |
| SSD interface |
NVMe, PCI Express 3.0 |
| NVMe |
Yes |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
256 GB |
| Graphics |
| On-board graphics card model |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
| Wake-on-LAN ready |
Yes |
| Bluetooth version |
5.1 |
| Bluetooth |
Yes |
| Antenna type |
2×2 |
| WLAN controller model |
Intel Dual Band Wireless-AC 9260 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN controller manufacturer |
Intel |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
100,1000,2500 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Serial ports quantity |
2 |
| DC-in jack |
Yes |
| Combo headphone/mic port |
Yes |
| Ethernet LAN (RJ-45) ports |
2 |
| HDMI version |
1.4b |
| Thunderbolt 4 ports quantity |
1 |
| Intel® Thunderbolt 4 |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| Design |
| Viewing window |
No |
| Product colour |
Black |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Volume |
0.81 L |
| Colour name |
Black |
| Chassis type |
Mini PC |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Motherboard chipset |
Intel SoC |
| Product type |
Mini PC |
| Software |
| Operating system installed |
Windows 10 IoT Enterprise |
| Processor special features |
| Embedded options available |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Idle States |
Yes |
| Intel Trusted Execution Technology |
No |
| CPU configuration (max) |
1 |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
No |
| Operational conditions |
| Operating shock |
30 G |
| Operating vibration |
3 G |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-40 – 60 °C |
| Operating temperature (T-T) |
-20 – 60 °C |
| Certificates |
| Certification |
ErP Lot 6, Low Halogen, PCF |
| Compliance certificates |
RoHS, WEEE |
| Weight & dimensions |
| Weight |
1.02 kg |
| Height |
51.5 mm |
| Depth |
88 mm |
| Width |
179 mm |
| Packaging content |
| Keyboard included |
Yes |
| Mouse included |
Yes |
| Display included |
No |
