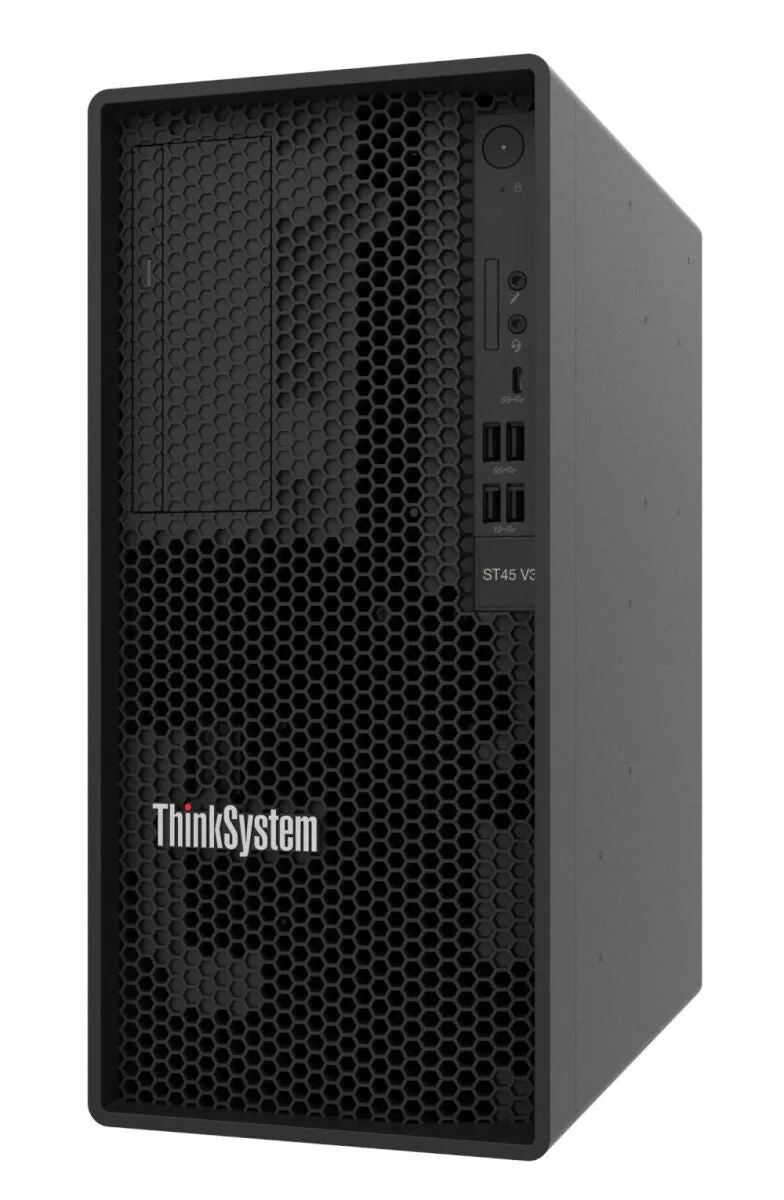

Lenovo ThinkSystem ST45 V3 server 1.92 TB Tower AMD EPYC 3.7 GHz 32 GB DDR5-SDRAM 500 W
- No OS
- AMD EPYC 4464P (64MB Cache, 3.7GHz)
- 32GB (5200MHz) DDR5-SDRAM (1 x 32) & 1920GB SSD
The Lenovo ThinkSystem ST45 V3 single-socket tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server is based on the AMD EPYC 4004 Series processor (formerly codenamed “Raphael”).
This product guide provides essential presales information to understand the ThinkSystem ST45 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST45 V3 and consider its use in IT solutions.
| Processor | |
|---|---|
| Processor threads | 24 |
| Memory types supported by processor | DDR5-SDRAM |
| Thermal Design Power (TDP) | 65 W |
| Number of processors installed | 1 |
| Processor cache | 64 MB |
| Processor cores | 12 |
| Processor boost frequency | 5.4 GHz |
| Processor frequency | 3.7 GHz |
| Processor family | AMD EPYC |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Maximum internal memory | 64 GB |
| Memory slots | 2x DIMM |
| ECC | Yes |
| Memory clock speed | 5200 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Internal drive bays | 2 |
| Optical drive type | No |
| RAID support | Yes |
| SSD size | 3.5″ |
| SSD interface | SATA |
| SSD capacity | 960 GB |
| Number of SSDs installed | 2 |
| Total storage capacity | 1.92 TB |
| Network | |
|---|---|
| LAN controller | Realtek RTL8111FP |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| Power cables quantity | 1 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Design | |
|---|---|
| Product colour | Black |
| Chassis type | Tower |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
|---|---|
| Operating system installed | No |
| Power | |
|---|---|
| Power supply input voltage | 115 – 230 V |
| Power supply | 500 W |
| Redundant power supply (RPS) support | No |
| Operational conditions | |
|---|---|
| Operating altitude | 0 – 3050 m |
| Storage relative humidity (H-H) | 8 – 90% |
| Operating relative humidity (H-H) | 8 – 80% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 10 – 35 °C |
| General | |
|---|---|
| Product family | ThinkSystem |
| Weight & dimensions | |
|---|---|
| Weight | 8.56 kg |
| Depth | 316 mm |
| Height | 376 mm |
| Width | 170 mm |
| Technical details | |
|---|---|
| Supported storage drives form factor (internal) | 3.5″ |
