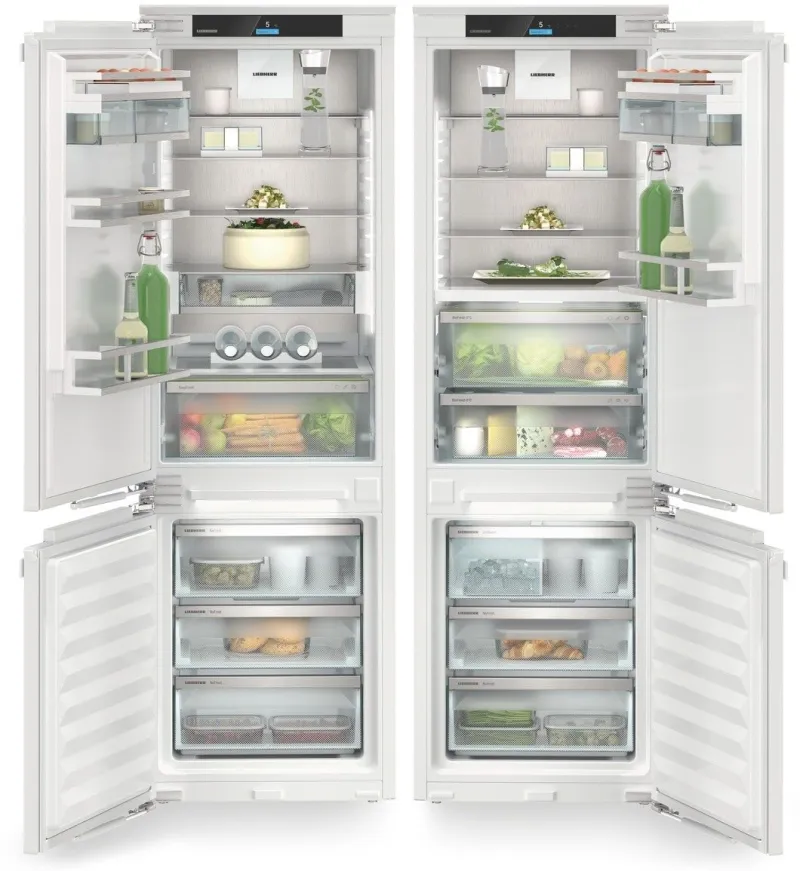

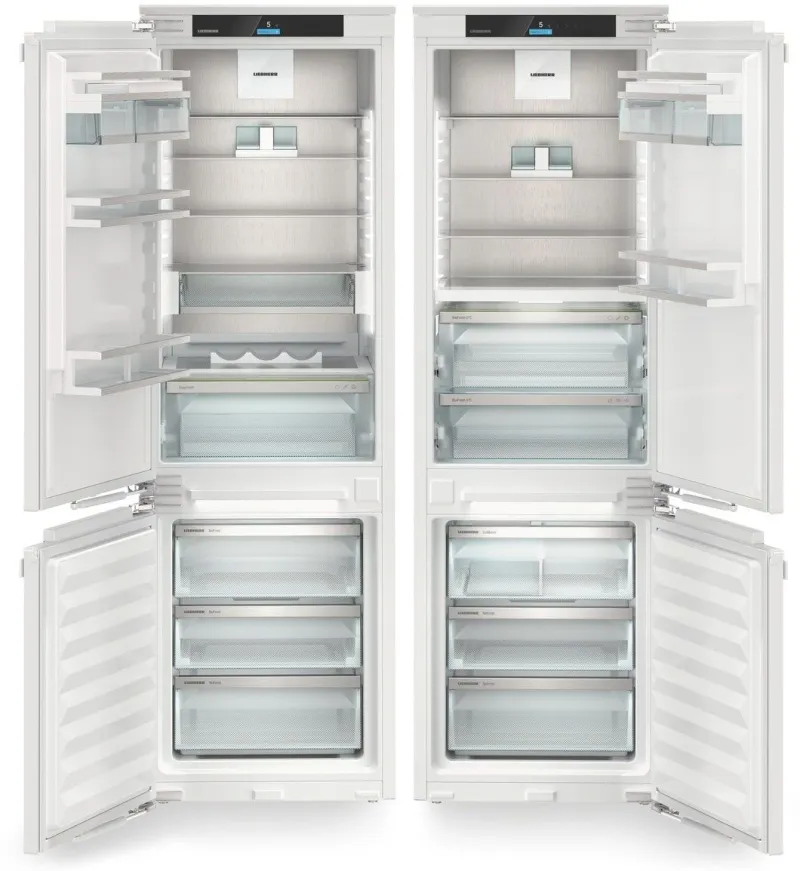

Liebherr Built In Fridge Freezer Frost Free IXCC5165 – Fully Integrated
Liebherr Prime IXCC5165 Fully Integrated Fridge Freezer Frost Free with Fixed Hinge
General Product Information
- Model Type: Integrated Fridge-Freezer with EasyFresh and NoFrost
- GTIN: 4016803117773 (Integrated Fridge-Freezer) / 4016803115137 (Combined Refrigerator-Freezer)
- Series: Prime
Output and Consumption
- Energy Efficiency Class: D
- Energy Consumption per Year: 181 kWh/a (Integrated Fridge-Freezer) / 208 kWh/a (Combined Refrigerator-Freezer)
- Climate Class: SN-T
- Noise Level: 34 dB
- Refrigerant: R 600a
Voltage: 220-240 V ~
Control and Functions
- Control: 2.4“ TFT Colour Display, Touch & Swipe display
- Control unit: Touch & Swipe
- Number of Temperature Zones: 2 (Integrated Fridge-Freezer) / 3 (Combined Refrigerator-Freezer)
- Number of Regulated Refrigeration Circuits: 2
- Temperature Display: Fridge & Freezing Compartment (Integrated Fridge-Freezer) / Fridge, Freezing Compartment & BioFresh Safe (Combined Refrigerator-Freezer)
- SuperCool: Adjustable on appliance and via app
- SuperFrost: Adjustable on appliance and via app
- Door alarm, cooling: Adjustable on appliance and via app
- Door alarm, freezing: Adjustable on appliance and via app
- BottleTimer: Adjustable on app
- Connectivity Solution: Integrated, fixed
- IceCubeTimer: Not applicable
- NightMode: Adjustable on app
- Display lock: Adjustable on appliance
Refrigerator Compartment
- Adjustable Temperature Range: +2 °C to +9 °C (Integrated Fridge-Freezer) / +3 °C to +9 °C (Combined Refrigerator-Freezer)
- Moisture Regulation: DuoCooling
- Refrigerator Compartment Climate Zones: EasyFresh (Integrated Fridge-Freezer) / Fruit & Vegetable Safe, Meat & Dairy Safe (Combined Refrigerator-Freezer)
- Defrosting Method: Automatic
- Forced Air Cooling: Yes
- FreshAir Filter: In valve
- Pull-out System Drawer: Partially-extendible telescopic rails (Integrated Fridge-Freezer) / Fully-extendible telescopic rails with self-closing mechanism and soft stop mechanism (Combined Refrigerator-Freezer)
- SoftSystem: SoftSystem
- Illumination Cooling Compartment: Light panel, both sides
- Number of Storage Shelves: 6 (Integrated Fridge-Freezer) / 4 (Combined Refrigerator-Freezer)
- VarioSafe: Yes (Integrated Fridge-Freezer)
- Bottle storage: 3-bottle shelf
- Bottle rack: 1
- Number of can racks: 2 (Integrated Fridge-Freezer) / 1 (Combined Refrigerator-Freezer)
- VarioBox: Pull-out
- VarioBoxes: 2
- Butter dish: Yes
- Egg tray: Variable
- Storage rack: Bottle and can rack
- Height-adjustable inner door shelf: Gradual adjustment
Freezer Compartment
- Temperature Range: -15 °C to -26 °C
- Cooling Technology: NoFrost
- Freezer Compartment Position: Bottom
- Defrosting Method: Automatic
- Storage Time in Case of Fault: 9 h
- Freezing Capacity in 24 Hours: 6.00 kg / 24h
- Number of Drawers: 3
- FrostSafe: Drawers closed on all sides with transparent front
- Drawer pull-out system: Drawer on safety glass
- Interior light: LED light
- VarioSpace: Yes
- IceMaker: Yes
- IceMaker Safe Lighting: Not applicable
- Ice Cube Tray: Ice cube tray with lid
- Star-Rating: 4
Design and Materials
- Dry Rear Panel: Yes
- Material Dry Back Wall: Stainless steel with SmartSteel
- Inner Door Décor: Not specified
- Design of Inner Door Rack: Premium GlassLine
- Material Door Shelves: Glass with stainless steel trim
- Storage Shelf Material, Refrigerator Compartment: Glass
- Material of Adjustable Shelves in the Freezer Compartment: Glass
- Door Material: Steel
Set-up and Installation
- Type of Installation: Designed for integrated use
- Door Assembly: Fixed door
- Max. Kitchen Unit Door Weight: 18/12
- Door Hinges: Left reversible (Integrated Fridge-Freezer) / Right reversible (Combined Refrigerator-Freezer)
- Door Hinge Replacement: Possible for customer
- Door Opening Angle: 115°
- Door Seal: Replaceable
- Height-adjustable feet: 2
- Levelling bars: Yes
- Ventilation: Ventilation grates
- Connector Cable (Length): 2,200 mm
Specifications

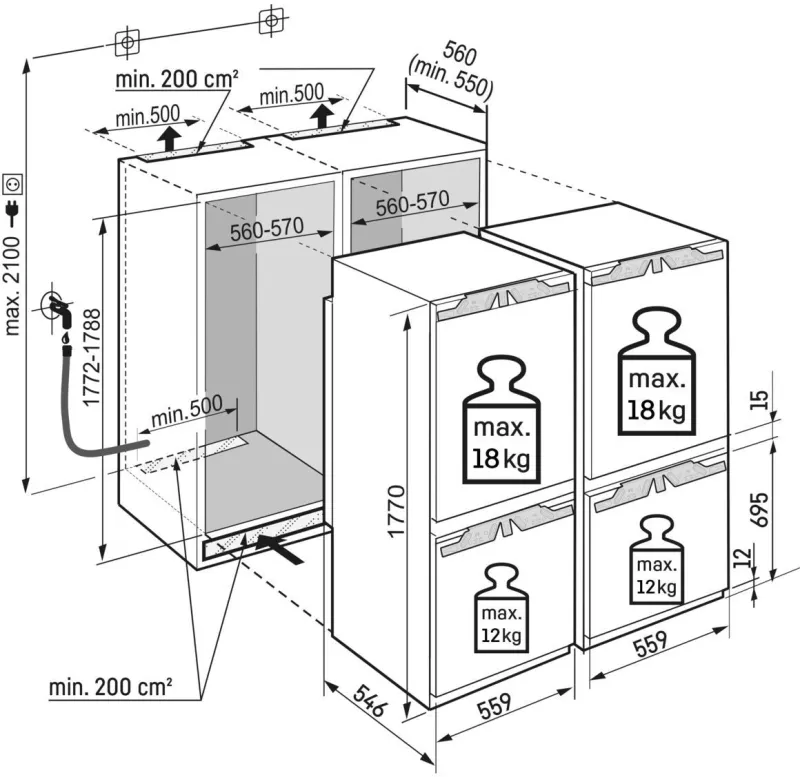

- Aperture Dimensions Height/Width/Depth: 177.2 – 178.8 / 56 – 57 / 55.0 cm
- Height / Width / Depth (with Packaging): 1,829.0 / 572.0 / 622.0 mm
- Dimensions H/W/D: 177 / 55.9 / 54.6 cm
- Weight (Without Packaging): 70.1 kg (Integrated Fridge-Freezer) / 71.5 kg (Combined Refrigerator-Freezer)
- Weight (With Packaging): 74 kg (Integrated Fridge-Freezer) / 75.1 kg (Combined Refrigerator-Freezer)
- Total Volume: 254 l (Integrated Fridge-Freezer) / 246 l (Combined Refrigerator-Freezer)
- Volume, Refrigerator Compartments: 184 l (Integrated Fridge-Freezer) / 175 l (Combined Refrigerator-Freezer)
- of which BioFresh: 71.2 l
- Volume, Freezer Compartments: 70 l (Integrated Fridge-Freezer) / 71 l (Combined Refrigerator-Freezer)
- Of Which 4-star Compartment: 69.9 l
