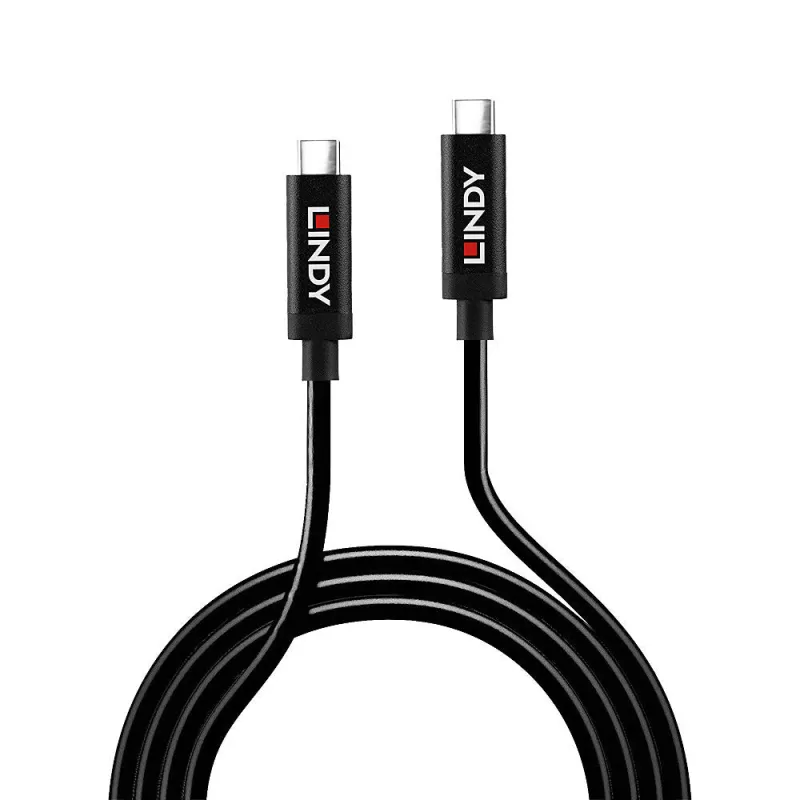

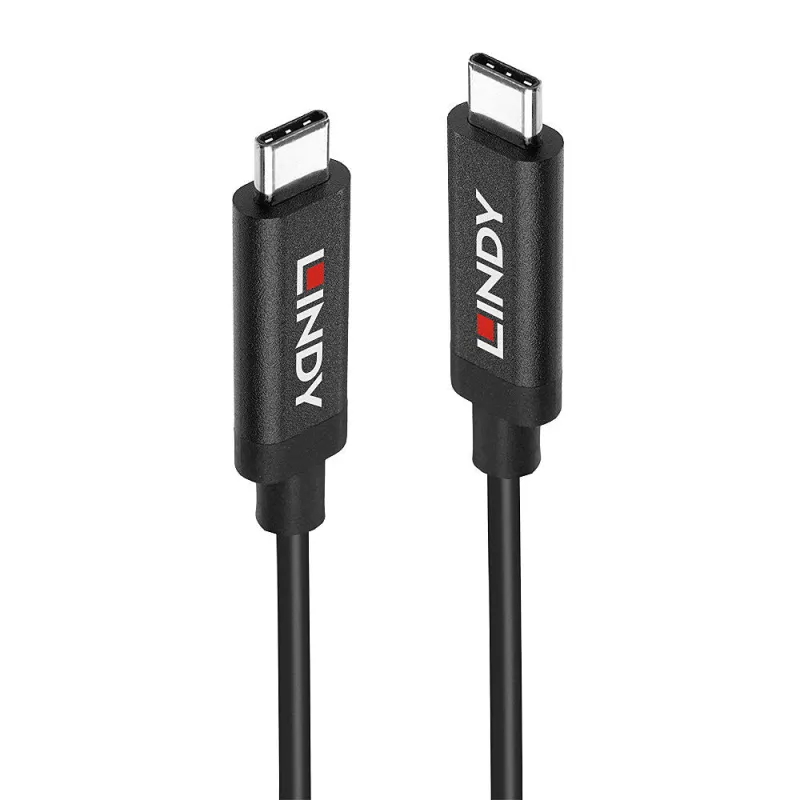

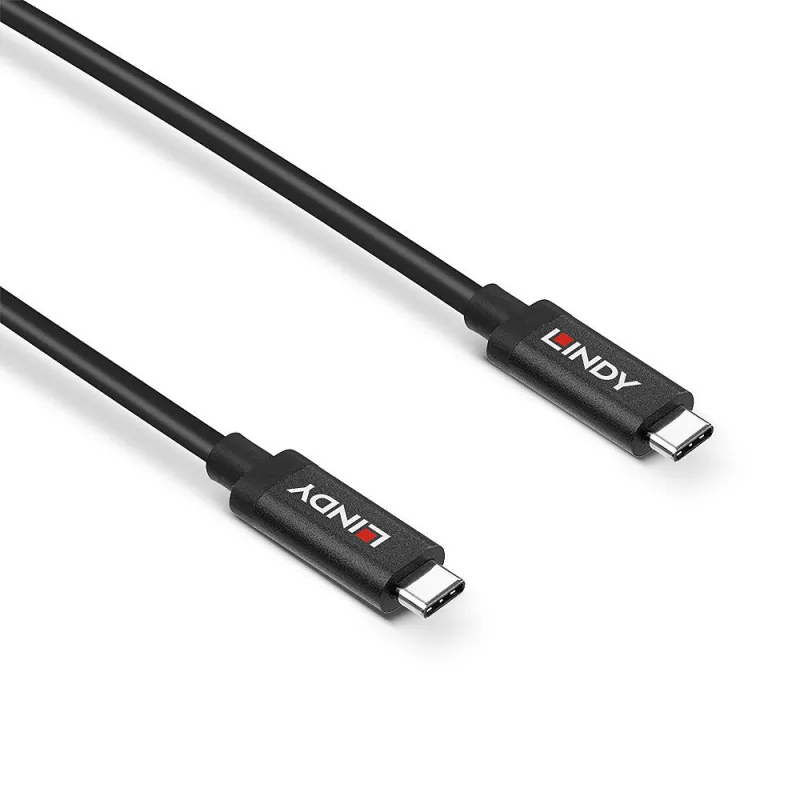

Lindy 5m Active USB 3.2 Gen 2 C/C Cable
- 5 metre USB 3.2 Gen 2 Active Cable for data and video extension
- Data transfer rates up to 10Gbps
- Supports DisplayPort 1.4 Alternate Mode
- Supports video resolutions up to UHD 8K 7680×4320@60Hz including 4K 4096×2160@120Hz
- 2 year warranty
USB active cables allow users to extend the connection distance between two USB devices. These cables feature integrated active electronics to boost the signal for high speed data transfer.
The Lindy USB 3.2 Gen 2 Active Cable uses built-in active electronics to extend the cable length of a USB device by an additional 5m whilst continuing to support fast and efficient data transfer rates of up to 10Gbps as well as Displayport 1.4 Alternate Mode. It combines data, video and USB Power Delivery into one cable which makes it a great solution for use in modern meeting rooms and classrooms when connecting LFDs and touchpanels.
When sending DP 1.4 signals, only USB 2.0 up to 480Mbps can be supported. USB 3.2 Gen 2 with data rates up to 10Gbps can be achieved when sending DP 1.2 signals with resolutions up to 4K 60Hz. The cable also supports Power Delivery up to 60W (20V / 3A). Compatible with USB 3.2 Type C and Thunderbolt 3/4 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.
Information about USB 3.0, 3.1 and 3.2 USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
| Features | |
|---|---|
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 60 W |
| Product colour | Black |
| Maximum data transfer rate | 10 Gbit/s |
| Cable jacket material | Polyvinyl chloride (PVC), Thermoplastic elastomer (TPE) |
| Connector contacts plating | Nickel/Gold |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | USB C |
| Connector 1 | USB C |
| USB version | USB 3.2 Gen 2 (3.1 Gen 2) |
| Weight & dimensions | |
|---|---|
| Cable diameter | 5.3 mm |
| Cable length | 5 m |
| Packaging data | |
|---|---|
| Package weight | 200 g |
| Package height | 255 mm |
| Package width | 236 mm |
| Package type | Bag |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -10 – 60 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Certificates | |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
- CE Declaration of Conformity
