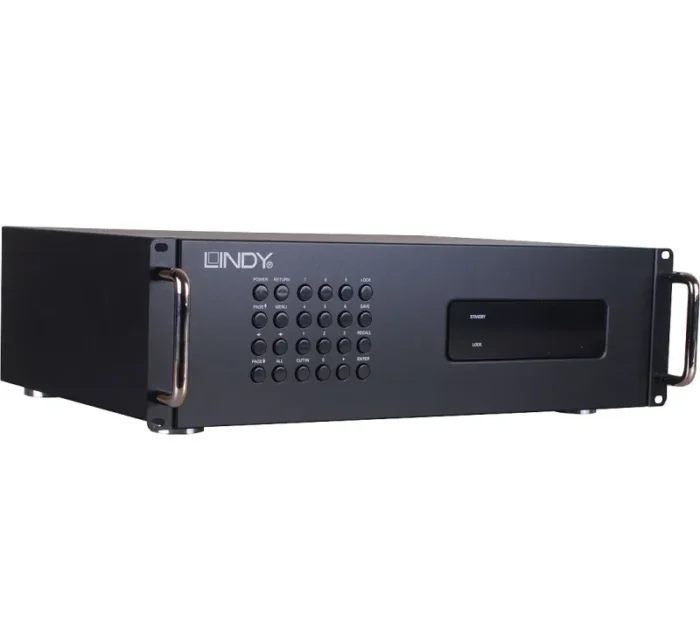

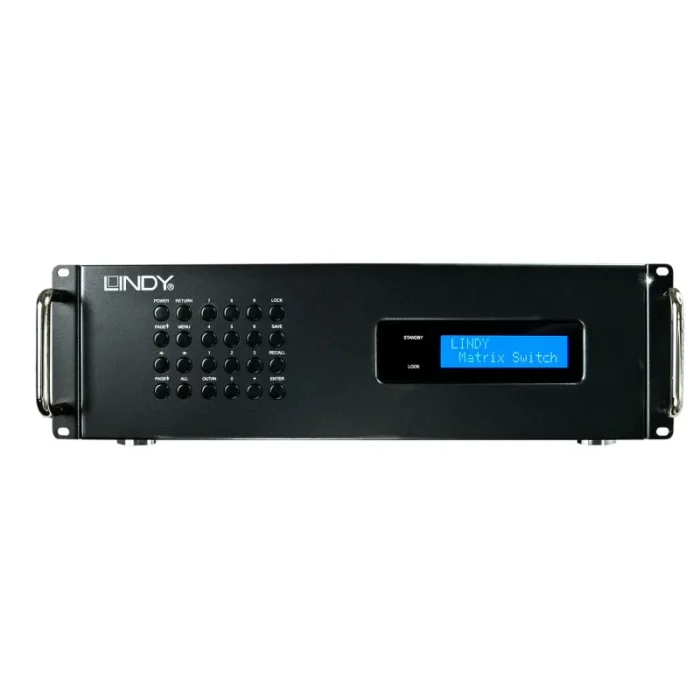

Lindy Modular AV Matrix 16 x 16 Ports Enclosure

8 Port input and output modules can be mixed and added in multiple combinations
Supports video resolutions up to 4kx2k@60Hz 8 bit 4:2:0 (depending on the boards installed)
Supports multiple audio signals from Stereo audio to LPCM 7.1Ch & DTS-HD Master Audio Transmission
RS232, Telnet & Web GUI system control
2 Year Warranty

NOTE: The chassis does not come with any input or output boards. Pictures are for illustration purposes only.

8×8 & 32×32 versions are also available.

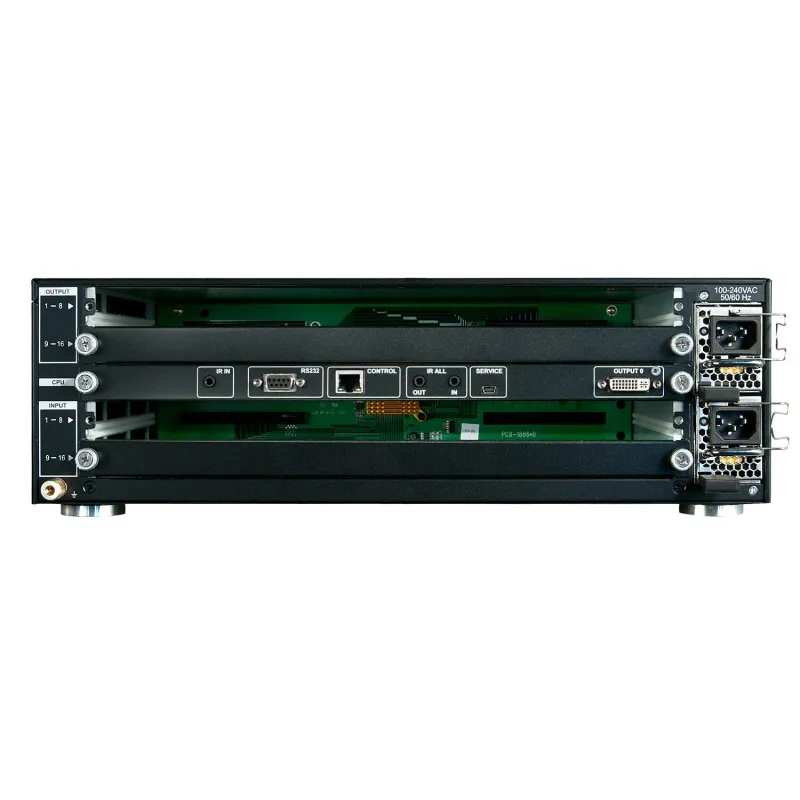

The LINDY 16×16 Modular Matrix is designed to allow you to create a matrix with up to 16 input and 16 output ports. The input ports can be a choice of HDMI, DVI or VGA while the output ports can be HDMI, DVI or C6 HDBaseT.

Any of the inputs can be combined with any of the outputs to create a UHD 4kx2k@60Hz 8 bit 4:2:0 display over distances of up to 100m. The modular design provides the ultimate in flexibility for audio and video distribution as a matrix, convertor or an extender in retail product demonstration, training and public display application in schools, pubs etc.

This product is intended to be used with the following modules –

8 Port 4K HDMI Input Module – 38253

Video Bandwidth: 300Mhz / 10.2Gbps
Input Ports: HDMI Type A Female
Video Resolutions: PC: VGA-WUXGA / HD: 480i-1080p & 4kx2k@60Hz 8 bit 4:2:0
Audio Transmission: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio (32-192KHz Fs sample rate)
Cable Lengths: Maximum distance, 15m using LINDY CROMO cable
Power Consumption: 22W

8 Port 4K HDMI Output Module – 38254

Video Bandwidth: 300Mhz / 10.2Gbps
Output Ports: HDMI Type A Female
Video Resolutions: PC: VGA-WUXGA / HD: 480i-1080p & 4kx2k@60Hz 8 bit 4:2:0
Audio Transmission: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio (32-192KHz Fs sample rate)
Cable Lengths: Maximum distance, 15m using LINDY CROMO cable
Power Consumption: 22W

8 Port DVI-D Input Module – 38255

Video Bandwidth: 225Mhz / 6.75Gbps
Input Ports: DVI Female
Video Resolutions: PC: VGA-WUXGA@60Hz / HD: 480i-1080p
Audio Transmission: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio (32-192KHz Fs sample rate)
Cable Lengths: Maximum distance, 15m using LINDY Premium SLD cable
Power Consumption: 20W

8 Port DVI-D Output Module – 38256

Video Bandwidth: 225Mhz / 6.75Gbps
Output Ports: DVI Female
Video Resolutions: PC: VGA-WUXGA@60Hz / HD: 480i-1080p
Audio Transmission: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio (32-192KHz Fs sample rate)
Cable Lengths: Maximum distance, 15m using LINDY Premium SLD cable
Power Consumption: 20W

8 Port VGA Input Module – 38257

Input Ports: VGA Female & 2.5mm jack (includes 8 x 2.5mm to 3.5mm adapters)
Video Resolutions: PC: VGA-WUXGA@60Hz
Audio Transmission: Stereo
Cable Lengths: Maximum distance, 15m using LINDY Premium VGA cable
Power Consumption: 22W

8 Port C6 HDBaseT Output Module – 38259

Video Bandwidth: 300Mhz / 10.2Gbps
Features: Audio, Video, POE, IR, RS232 & Ethernet
Output Ports: 8 x RJ45 Shielded Female C6 ports & 1 x RJ45 Network port
Ethernet Speed: 100Mbps
Video Resolutions: PC: VGA-WUXGA / HD: 480i-1080p & 4kx2k@60Hz 8 bit 4:2:0
Audio Transmission: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio (32-192KHz Fs sample rate)
Cable Lengths: Up to 100m 1080p / 70m 4kx2k@60Hz 8 bit 4:2:0 using CAT5e/6/7 solid core cable
Power Consumption: 45W+POE / Module (10W/port)

Package Contents:

Modular Matrix

IR Blaster

IR Extender

Power Cord

Remote control inc battery

User manual
