Linksys AC1300CE White Power over Ethernet (PoE)
- Deploy anywhere with PoE/PoE+ support for data and power
- Save costs using cloud management without recurring license fees
- Reduce time on-site with Zero Touch Provisioning
- Dedicated business support from CCNA certified technicians
- TAA Compliant for GSA Schedule contracts and federal use
Remotely manage your access points through the cloud

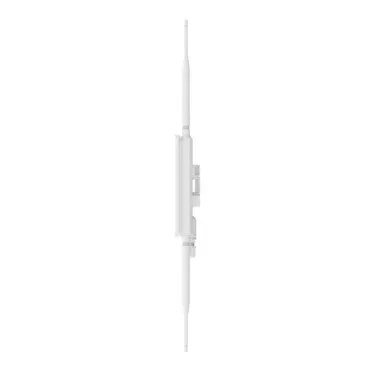

The Linksys LAPAC1300CE AC1300 WiFi 5 MU-MIMO Cloud Managed IP67 Outdoor Wireless Access Point is an 802.11AC Wave 2 Dual-Band WiFi Access Point (2.4GHz + 5GHz) designed with 2×2 removable antennas for 1300Mbps* total WiFi speed. Perfect for outdoor deployments, every cloud access point comes with free cloud management so you can have access to an enterprise-class cloud-native management solution without the recurring fees. Zero Touch Provisioning reduces the need for on-site installation and configuration, saving you time and travel costs. With Linksys Cloud Manager 2.0, you get instant scalability with no limit to the number of networks and devices you can manage.
Cloud-native centralized management
All of our cloud managed access points can be configured remotely or with Zero Touch Provisioning using our Cloud-Native management portal. Powered by AWS Microservices, our cloud communication is secure, lightweight and extremely fast compared to outdated server or controller architectures. With Linksys Cloud Manager 2.0, you get instant scalability with no limit to the number of networks and devices you can manage.
Cloud hosted captive portal for secure guest wifi access
Traditional captive portals are hosted in the local device with extremely limited space for graphics, logos and text. Linksys Cloud Manager 2.0 does it better with a built-in captive portal editor that allows you to upload logos and graphics of any size, so the only limit is your imagination. Easily create a terms of service agreement or lock WiFi access with an extra passcode, at no additional cost.
Poe+ IP67 for streamlined installation
Thanks to Power over Ethernet support (802.3af PoE or 802.3at PoE+), the LAPAC1300CE can draw both power and data from a single Ethernet cable. Combined with IP67, this allows you to easily mount on a wall or pole anywhere outdoors without having to source an AC outlet. This also eliminates a separate power adapter, reducing waste and saving the environment.
| Features | |
|---|---|
| Transmitting power (CE) | 5.17 – 5.09 dBm |
| Transmitting power (FCC) | 5.17 – 5.17 dBm |
| Wireless isolation | Yes |
| STA isolation (same VLAN) | Yes |
| Number of VLAN IDs | 8 |
| Virtual LAN features | SSID-based VLAN assignment |
| VLAN support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Channels quantity | 20 channels |
| Number of users | 60 user(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3at, IEEE 802.3u |
| Frequency band | 2.412 – 5.825 GHz |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 400 Mbit/s |
| 5 GHz | Yes |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| DHCP snooping | Yes |
| Device type identification | DHCP options |
| Number of SSID supported | 8 |
| Service Set Identifier (SSID) features | Hidden SSID, Multiple SSIDs, SSID broadcast |
| MAC address filtering | Yes |
| Security algorithms | SSID, WPA, WPA2 |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| Power consumption (max) | 8.64 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| LED indicators | LAN, Power, System |
| Reset button | Yes |
| International Protection (IP) code | IP67 |
| Product colour | White |
| Placement | Ceiling, Pole, Wall |
| Antenna | |
|---|---|
| Antenna connector type | SMA |
| Antennas quantity | 4 |
| Antenna type | External |
| Certificates | |
|---|---|
| Certification | FCC Class B, CE Class B, UKCA Class B |
| Compliance certificates | CE |
| Weight & dimensions | |
|---|---|
| Weight | 440 g |
| Height | 42.9 mm |
| Depth | 266.4 mm |
| Width | 110 mm |
| Packaging data | |
|---|---|
| Package weight | 620 g |
| Package height | 115.1 mm |
| Package depth | 150.1 mm |
| Package width | 244.1 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 – 90% |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Operating relative humidity (H-H) | 0 – 90% |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
