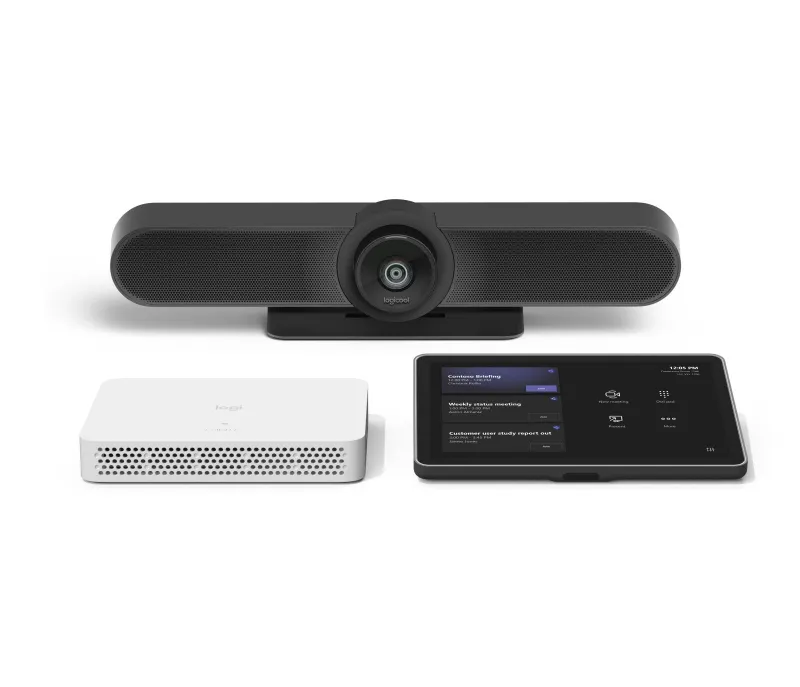

Logitech RoomMate
- Group video conferencing system
- Bluetooth
- 4K Ultra HD 3840 x 2160 pixels
- Built-in speaker(s)
- Ethernet LAN 10,100,1000 Mbit/s Wi-Fi
- 8x
- Power source type: AC Lithium 220 mAh
- Graphite, White
| Performance | |
|---|---|
| PTZ control | Yes |
| Tilt angle range | -15 – 15° |
| Pan range | -25 – 25° |
| Wall mountable | Yes |
| Product colour | Graphite, White |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Product type | Group video conferencing system |
| Video | |
|---|---|
| Supported video modes | 720p, 1080p, 2160p |
| Maximum video resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Audio | |
|---|---|
| Sample rates | 0 – 32 kHz |
| Microphone pick-up range | 4 m |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Audio beamforming | Yes |
| Output level | 86.5/95 dB |
| Built-in speaker(s) | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB connector type | USB Type-A |
| HDMI output ports quantity | 2 |
| HDMI input ports quantity | 1 |
| HDMI ports quantity | 3 |
| Interface module | |
|---|---|
| Interface module RJ-45 ports quantity | 1 |
| Network | |
|---|---|
| Security algorithms | 128-bit AES |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Camera | |
|---|---|
| Remote control interface | RF Wireless |
| Number of camera presets | 3 |
| Diagonal field of view | 120° |
| Vertical field of view | 80.7° |
| Horizontal field of view | 113° |
| Digital zoom | 8x |
| Zoom capability | Yes |
| Display | |
|---|---|
| Oleophobic coating | Yes |
| Viewing angle, horizontal | 85° |
| Viewing angle, vertical | 85° |
| Display brightness | 400 cd/m² |
| Touchscreen type | Capacitive |
| Touchscreen | Yes |
| Contrast ratio (typical) | 1000:1 |
| Display resolution | 1280 x 800 pixels |
| Display diagonal | 25.6 cm (10.1″) |
| Display | IPS |
| Microphone | |
|---|---|
| Microphone frequency | 90 – 16000 Hz |
| Microphone sensitivity | -27 dB |
| Computer system | |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 |
| Operating system installed | CollabOS |
| VESA mounting | Yes |
| Battery | |
|---|---|
| Battery capacity | 0.675 Wh |
| Logistics data | |
|---|---|
| Master (outer) case gross weight | 8.82 kg |
| Master (outer) case length | 529 mm |
| Master (outer) case width | 463 mm |
| Master (outer) case height | 203 mm |
| Features | |
|---|---|
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Motion sensor | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 10 – 95% |
| Storage temperature (T-T) | -40 – 70 °C |
| Power | |
|---|---|
| Power plug type | Type J |
| Battery technology | Lithium |
| Battery capacity | 220 mAh |
| Number of batteries supported | 2 |
| DC input voltage | 19 V |
| Current | 4.74 A |
| AC input voltage | 100 – 240 V |
| Power source type | AC |
| Weight & dimensions | |
|---|---|
| Package weight | 8.82 kg |
| Package height | 189 mm |
| Package depth | 522 mm |
| Package width | 456 mm |
| Weight | 1.04 kg |
| Height | 34.5 mm |
| Depth | 211 mm |
| Width | 161 mm |
| Camera weight | 1.04 kg |
| Camera dimensions (WxDxH) | 400 x 85 x 104 mm |
| Remote control dimensions (W x H x D) | 83 x 83 x 10 mm |
| Interface module weight | 1 kg |
| Interface module dimensions (W x D x H) | 246.2 x 171.3 x 56.1 mm |
| Packaging content | |
|---|---|
| Camera included | Yes |

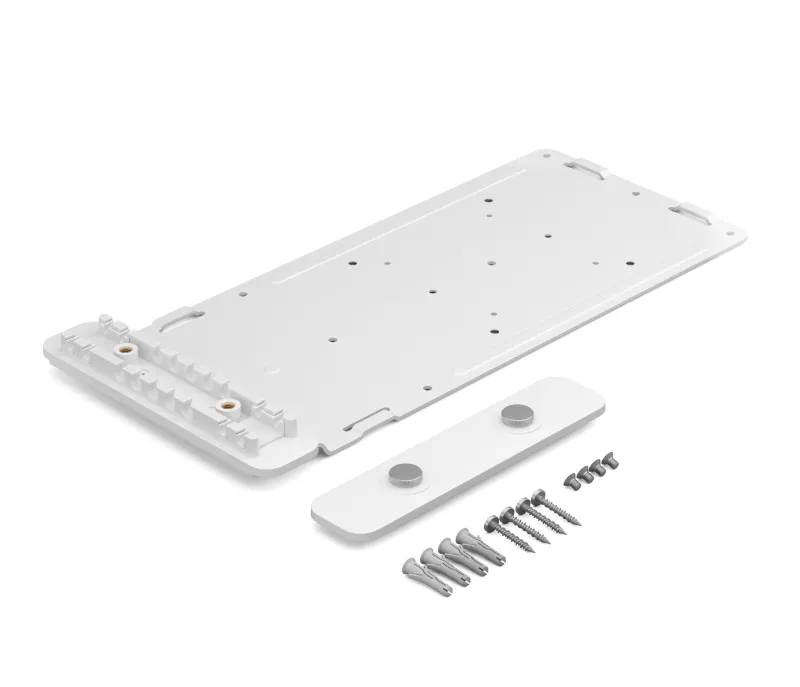

| Mounting kit | Yes |
| AC adapter included | Yes |
| Power cable length | 1.5 m |
| Cables included | AC, DC, USB |
