Mercusys 5-Port Gigabit Desktop Switch
- Full Gigabit Ports: 5× 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Multiple Installation Operation: Steel housing, desktop or wall-mounting design
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
- Plug and Play: Simple to use and saves time and effort
- Power Saving: Green Ethernet technology saves power
More Efficient Transmission
Longer Usage Life

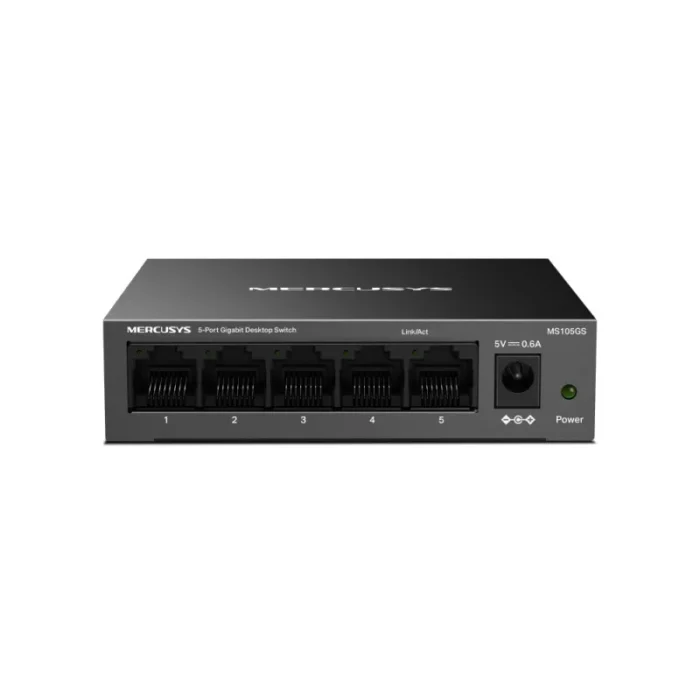

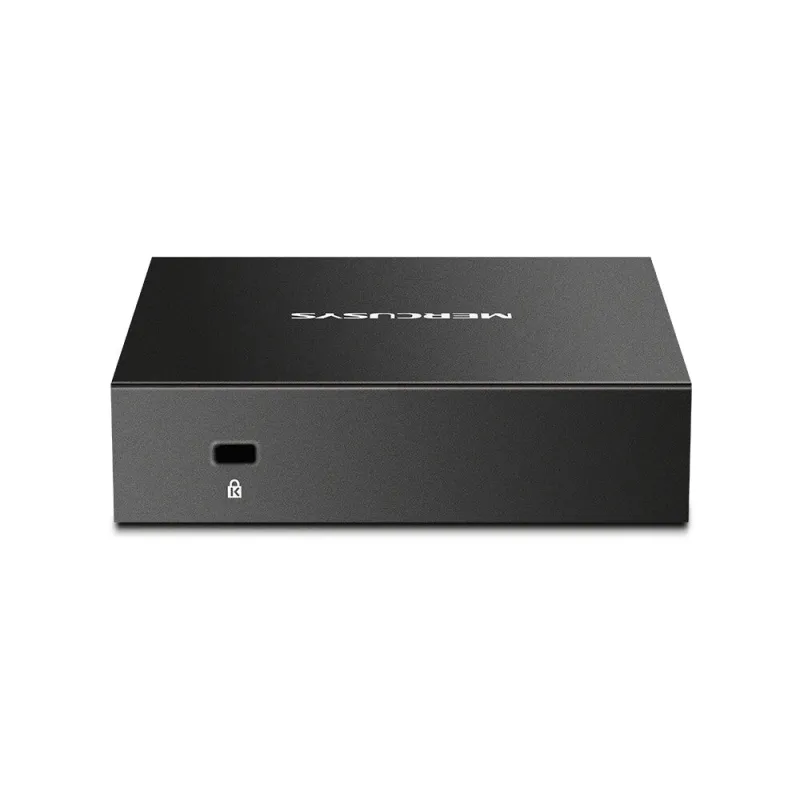

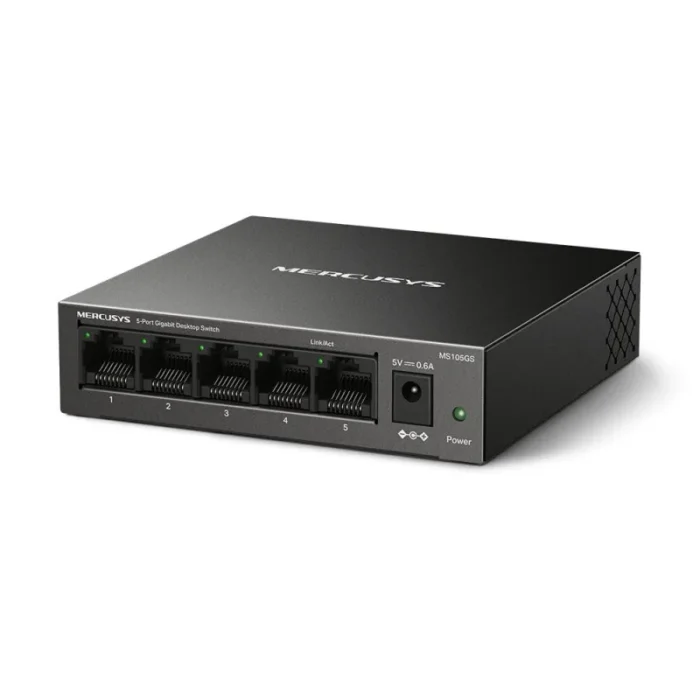

5-Port Gigabit Desktop Switch
Expand Ethernet Network with Gigabit Ports
Quickly expand your wired network with five 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS105GS is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.
Durable, Silent, and Flexible
MS105GS‘s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life. And you can put the switch on desk or wall mount to meet your demand.
Plug and Play
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.
Reliable Performance
With Half/Full Duplex and MAC Address Learning Technology, MS105GS provides up to 10 Gbps of stable switching bandwidth. Every unit undergoes extensive testing prior to shipment to ensure it will provide reliable, uninterrupted connections for years to come.
Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! MS105GS features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Network | |
|---|---|
| MAC address auto-aging supported | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| Half duplex | Yes |
| Full duplex | Yes |
| 10G support | No |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x |
| Optical fiber | |
|---|---|
| Transmission distance (max) | 0.1 km |
| Data transmission | |
|---|---|
| Packet buffer memory | 0.125 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Switching capacity | 10 Gbit/s |
| MAC address table | 2000 entries |
| Design | |
|---|---|
| Wall mountable | Yes |
| LED indicators | Yes |
| Housing material | Metal |
| Product colour | Black |
| Stackable | No |
| Rack mounting | No |
| Performance | |
|---|---|
| Fanless | Yes |
| Power | |
|---|---|
| Power consumption (max) | 3.614 W |
| Input current | 0.6 A |
| DC input voltage | 5 V |
| AC input frequency | 50/60 Hz |
| AC input voltage | 220 V |
| Power supply included | Yes |
| Power source | DC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Heat dissipation | 12.331 BTU/h |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 25.1 mm |
| Depth | 98 mm |
| Width | 99.8 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC |
| Certificates | |
|---|---|
| Certification | CE, RoHS |
