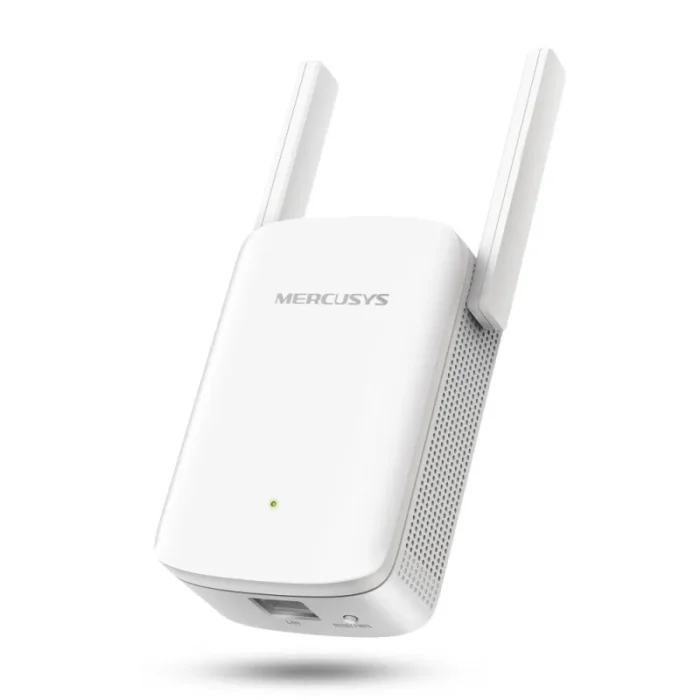

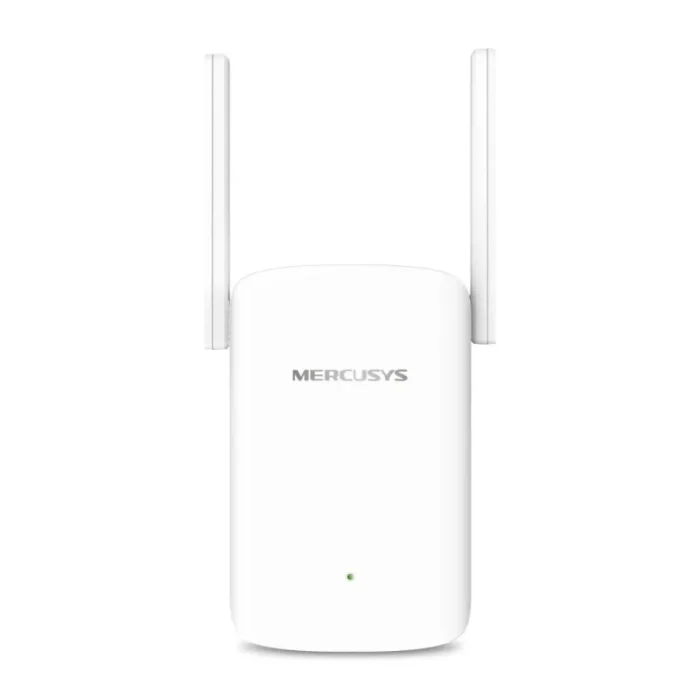

Mercusys AX1500 Wi-Fi 6 Range Extender
- Dual Band Speeds up to 1500 Mbps – 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz
- Armed with WiFi 6 – Improves virtually every aspect of your network: speed, efficiency, and capacity
- Gigabit Wired Connection – Provides speedy wired connections for PCS, IPTVS.and game consoles
- Works with Any Routers – To Extend WiFi to Where You Need It Most
- Easy One-Touch Setup – Press the WPS button to expand your Wi-Fi coverage in seconds
- Built-In Access Point Mode – Works as RE mode and AP mode
- Manage Your Network with App – Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android devices
AX1500
MERCUSYS Wi-Fi 6 Range
Wi-Fi 6 Brings Your Network to a Next Level
Armed with Wi-Fi 6 , ME60X improves virtually every aspect of your network: speed, efficiency, and capacity.
Extend WiFi to Where You Need It Most
Expand coverage of your Existing Router. The two adjustable high-gain antennas extends WiFi signals to where your router WiFi cannot reach. This AX1500 Range Extender is backward compatible with previous WiFi generations (11b/g/n/a/ac) and will work with all your existing internet-connected devices.
Cover Your Whole Home with EasyMesh
ME60X is compatible with EasyMesh, enabling you to set up a whole home mesh network with one WiFi name and password with any other APs that support EasyMesh from multiple vendors. Enjoy flexible, scalable, and seamless mesh WiFi throughout your home!
Advanced Features Made for Speed
Adaptive Path Selection
Keeps your network running at top speed by automatically choosing the fastest connection path to the router.
High Speed Mode
Use both WiFi bands to enjoy super-fast connections—ideal for HD streaming and gaming.
Effortless One-Touch Setup
Press the WPS button on your router and extender to expand your Wi-Fi coverage in seconds.
Built-In Access Point Mode
ME60X is more than just a WiFi range extender. Connect your wired internet connection to the ME60X via Ethernet cable to turn it into a dual band WiFi access point.
Control at Your Fingertips
Set up and manage your Wi-Fi through the MERCUSYS app from your smartphone (Android, iOS).
| Performance | |
|---|---|
| WPS push button | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Data transfer rate | 1000 Mbit/s |
| Type | Network repeater |
| Antenna | |
|---|---|
| Antennas quantity | 2 |
| Network | |
|---|---|
| Security algorithms | WPA, WPA2, WPA3-PSK |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
|---|---|
| Reset button | Yes |
| LED indicators | Yes |
| Product colour | White |
| Power | |
|---|---|
| Power consumption (typical) | 10 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 112 mm |
| Depth | 39 mm |
| Width | 84.7 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Packaging data | |
|---|---|
| Package type | Box |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
