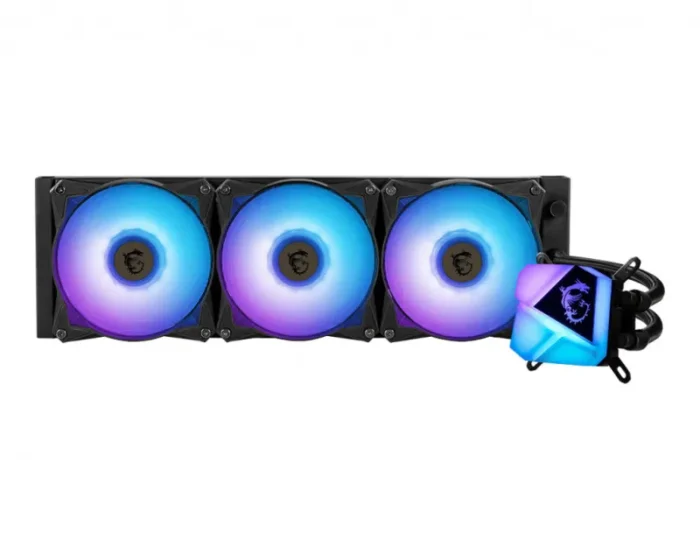

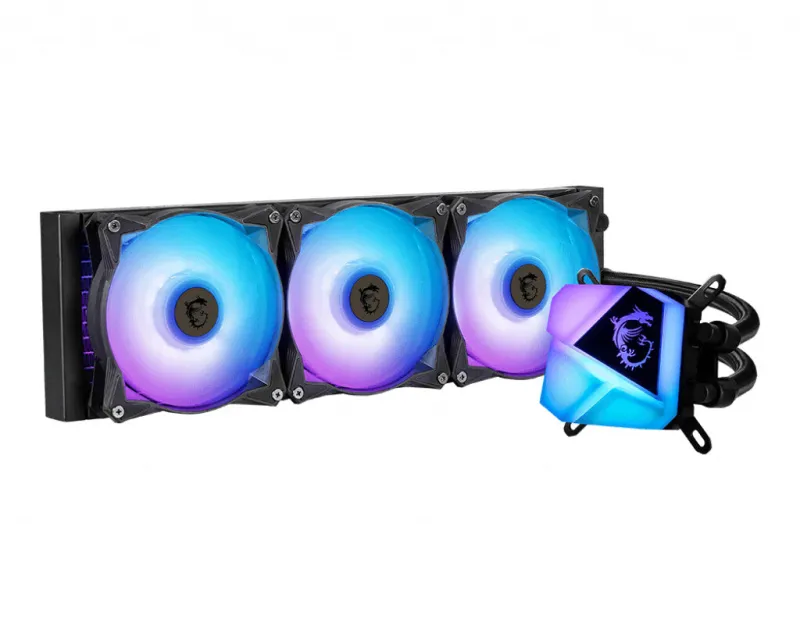

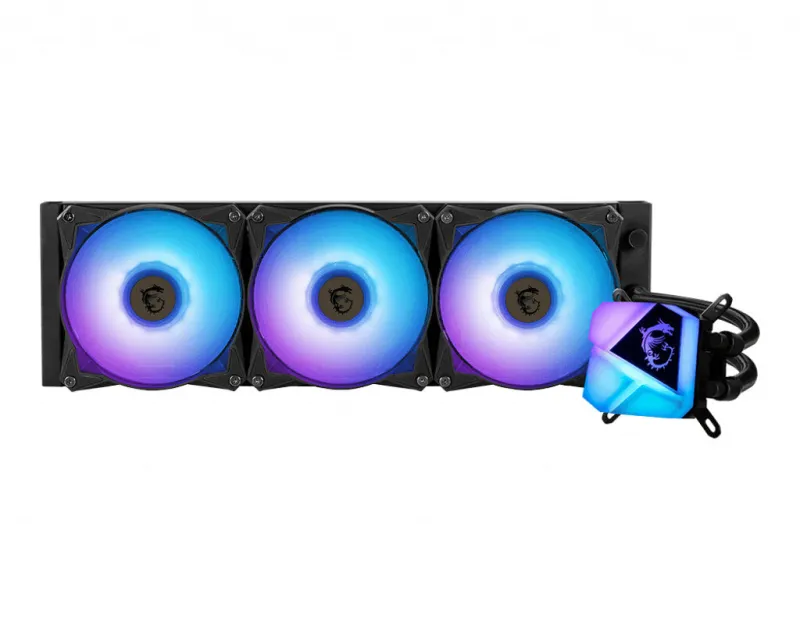

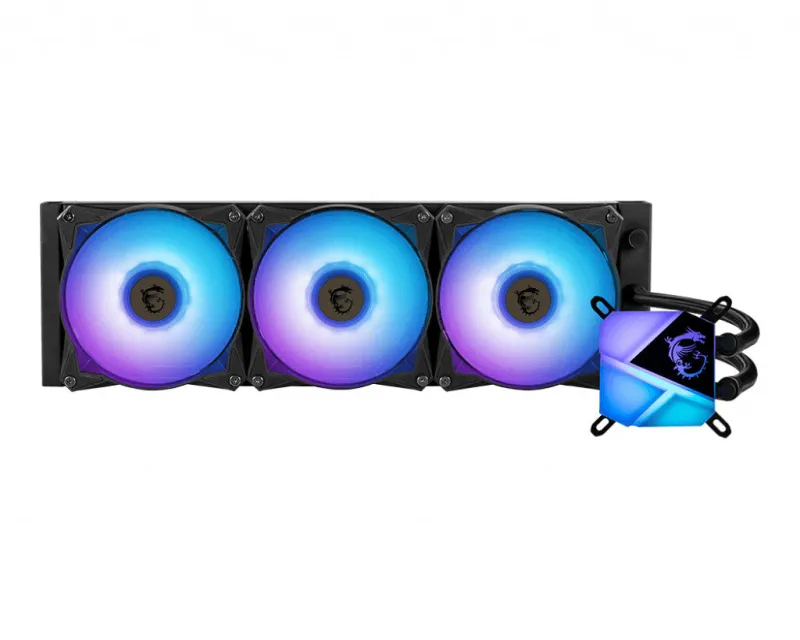

MSI MAGCORELIQUID C360 Processor All-in-one liquid cooler Black
- REBELLIOUS AND DISTINCT
- The MAG CORELIQUID C Series liquid cooler provides out of box support for LGA 1700
- The pump has been integrated into the radiator for sound dampening and noise reduction
- A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop
- A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation
- Constructed with three layers of netted plastic tubing and a reinforced mesh exterior
REBELLIOUS AND DISTINCT
The MAG CORELIQUID C Series liquid coolers’ water block features a large surfaced ARGB lighting that is sure to dazzle your build. It is split into four pieces of unique diamond-cut areas, with three capable of lighting up and the last one featuring our proud MSI logo emblem.
LGA 1700 COMPATIBLE
The MAG CORELIQUID C Series liquid cooler provides out of box support for LGA 1700.
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump’s life expectancy by moving it away from the heat source.
HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
EXTENSIVE COMPATIBILITY
Stylish yet built for flexibility, the MAG CORELIQUID C Series has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
| Performance | |
|---|---|
| Fan’s mean time to failure (MTTF) | 70000 h |
| Pump’s mean time to failure (MTTF) | 100000 h |
| Pump motor speed | 4200 RPM |
| Fan speed (max) | 2000 RPM |
| Fan static pressure | 2.39 mmH2O |
| Fan speed (min) | 500 RPM |
| Fan bearing technology | Double ball bearing |
| Fan noise level (max) | 34.3 dB |
| Fan noise level (min) | 14.3 dB |
| Pulse-width modulation (PWM) support | Yes |
| Maximum airflow | 78.73 cfm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Number of fans | 3 fan(s) |
| Material | Aluminium |
| Product colour | Black |
| Power | |
|---|---|
| Pump voltage | 12 V |
| Fan voltage | 12 V |
| Fan current | 0.15 A |
| Pump current | 0.34 mA |
| Pump power consumption | 4.08 W |
| Fan power consumption | 1.8 W |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Waterblock height | 7.05 cm |
| Waterblock depth | 5.2 cm |
| Waterblock width | 7.05 cm |
| Tube length | 40 cm |
| Radiator height | 12 cm |
| Radiator depth | 2.7 cm |
| Radiator width | 39.6 cm |
| Other features | |
|---|---|
| Noise level | 14.3 dB |
| Country of origin | China |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
