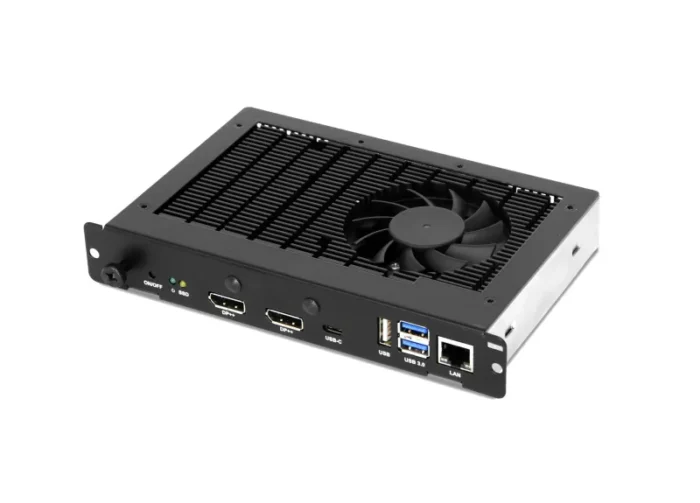

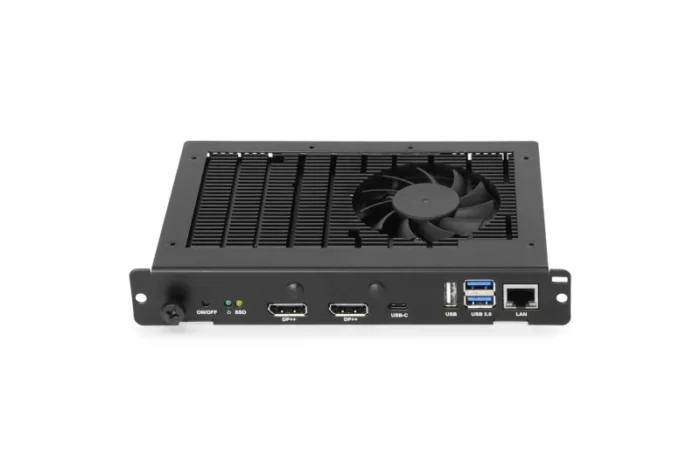

NEC OPS-Kbl-i5v-s4-64-W10IoT B 2.9 GHz Intel® Core™ i5 64 GB SSD 4 GB
- Lighten your heaviest workloads – The 7th generation Intel® processors deliver faster data processing and increased capability to run multiple operations and applications at the same time; powering the next generation of embedded computing
- Smooth graphics performance – Intel® HD Graphics provides Ultra HD resolution, intense detail and faster frame rates, delivering a remarkable visual experience and video playback of up to 4K/60Hz resolution
- High usage flexibility – thanks to wide connectivity such as 4 x USB, 2 x DisplayPort out, Gigabit Ethernet, Audio and optional WiFi or 4G/ LTE; there’s no need to add additional adapters or signal splitters
- Versatility and investment security – Easily upgrade storage to greater capacity or keep sensitive data within the company with removable and upgradable SSD data storage
- Seamless and fully embedded – The OPS concept provides a compact and fully embedded solution ensuring that all connectors are integrated including Power, Video & Audio Signals and RS232
- Untethered wireless data transfer – Smoothly update screen content with optional cable-free Wi-Fi or 4G/LTE connectivity, independently to wired network environments
- Upgrade the power of your displays at any time – Savings are possible by upgrading just the OPS device or just the display without having to change the entire hardware setup
- High reliability – Ideally suited for 24/7 operation due to the use of industrial grade components
The full line-up of OPS Slot-in PCs supports a wide variety of applications starting from static content playback and ranging to the most demanding interactive, high resolution or resource hungry applications. The 7th generation Intel® Core™ i processors deliver crisp 4K UHD playback through a new class of computing power available on our next generation
of OPS Slot-in computing. Configuring the Slot-in PCs to meet customers’ demands with a tailor-made solution is easy through a wide choice of processors, solid-state drives, RAM and operating systems as well as Wi-Fi, TPM and 4G connectivity. The majority of NEC Large Format displays plus PX and PH Installation projectors feature the OPS option slot for seamless integration.
| Processor |
| Conflict-Free processor |
Yes |
| Configurable TDP-down |
35 W |
| Bus type |
DMI3 |
| Processor operating modes |
64-bit |
| Processor lithography |
14 nm |
| Processor threads |
4 |
| System bus rate |
8 GT/s |
| Processor cache type |
Smart Cache |
| Processor cache |
6 MB |
| Processor socket |
BGA 1440 |
| Processor boost frequency |
3.6 GHz |
| Processor cores |
4 |
| Processor model |
i5-7440EQ |
| Processor generation |
7th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor frequency |
2.9 GHz |
| Memory |
| Maximum internal memory |
32 GB |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
4 GB |
| Storage |
| SSD capacity |
64 GB |
| SSD interface |
Serial ATA |
| Number of storage drives supported |
2 |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Total storage capacity |
64 GB |
| Graphics |
| Discrete graphics card |
No |
| On-board graphics card family |
Intel® HD Graphics |
| On-board graphics card model |
Intel® HD Graphics 630 |
| On-board graphics card |
Yes |
| Network |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Wi-Fi |
No |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPorts quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
1 |
| Performance |
| Number of antenna connectors |
2 |
| Product colour |
Black |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 IoT LTSB |
| Processor special features |
| Intel® vPro™ Platform Eligibility |
No |
| Intel TSX-NI version |
1.00 |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Identity Protection Technology version |
1.00 |
| Intel HD Graphics |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Intel Clear Video Technology |
Yes |
| Intel Secure Boot |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel 64 |
Yes |
| Intel TSX-NI |
Yes |
| Embedded options available |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel Enhanced Halt State |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Idle States |
Yes |
| Execute Disable Bit |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Power |
| Power consumption (standby) |
8 W |
| Power consumption (typical) |
64.5 W |
| Operational conditions |
| Operating temperature (T-T) |
5 – 35 °C |
| Weight & dimensions |
| Package weight |
900 g |
| Package height |
70 mm |
| Package depth |
190 mm |
| Package width |
260 mm |
| Weight |
800 g |
| Height |
30 mm |
| Depth |
120 mm |
| Width |
190 mm |
