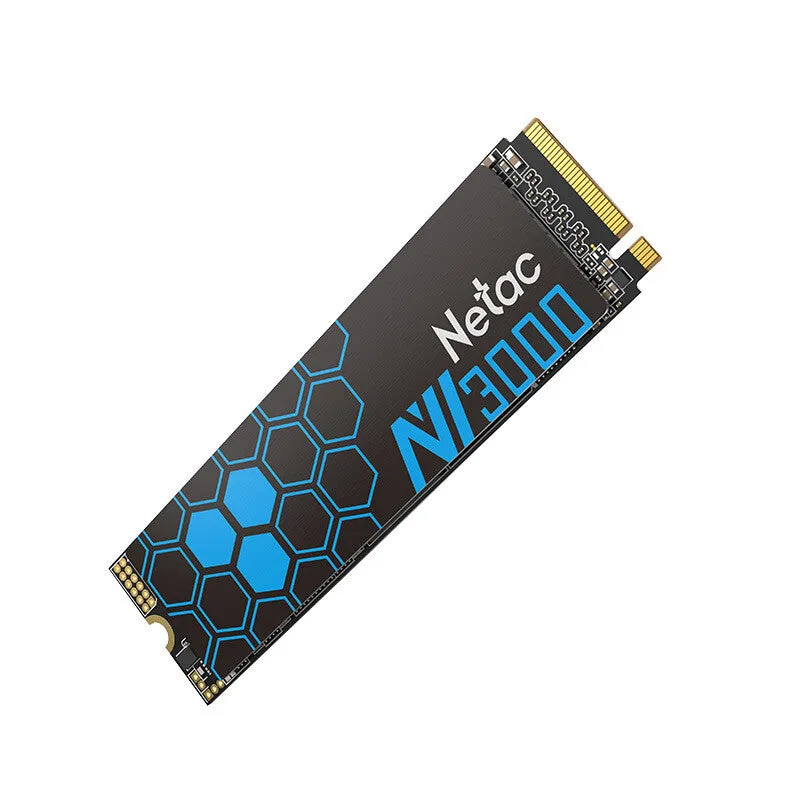

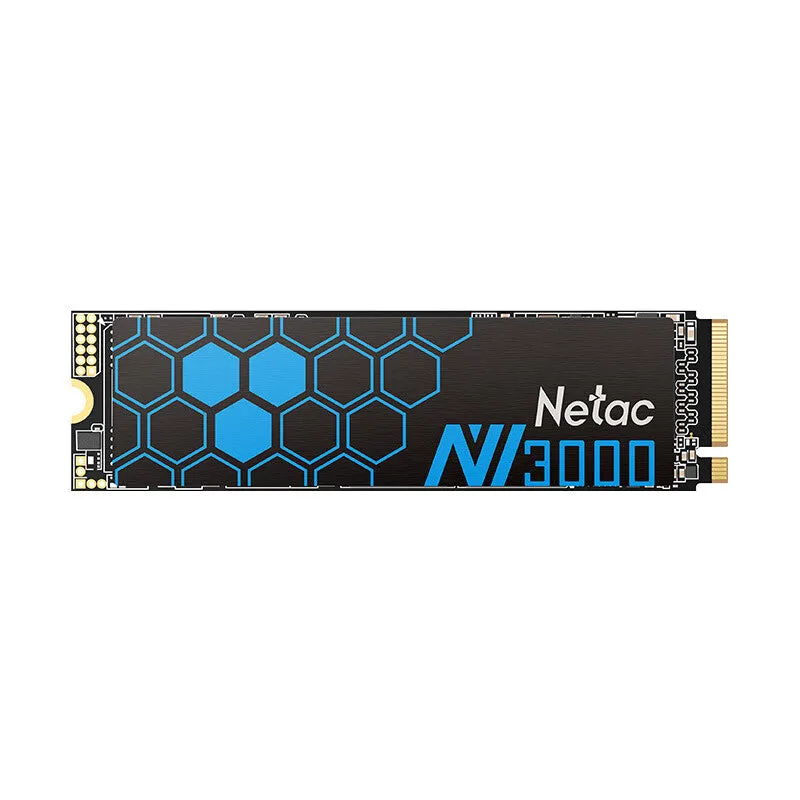

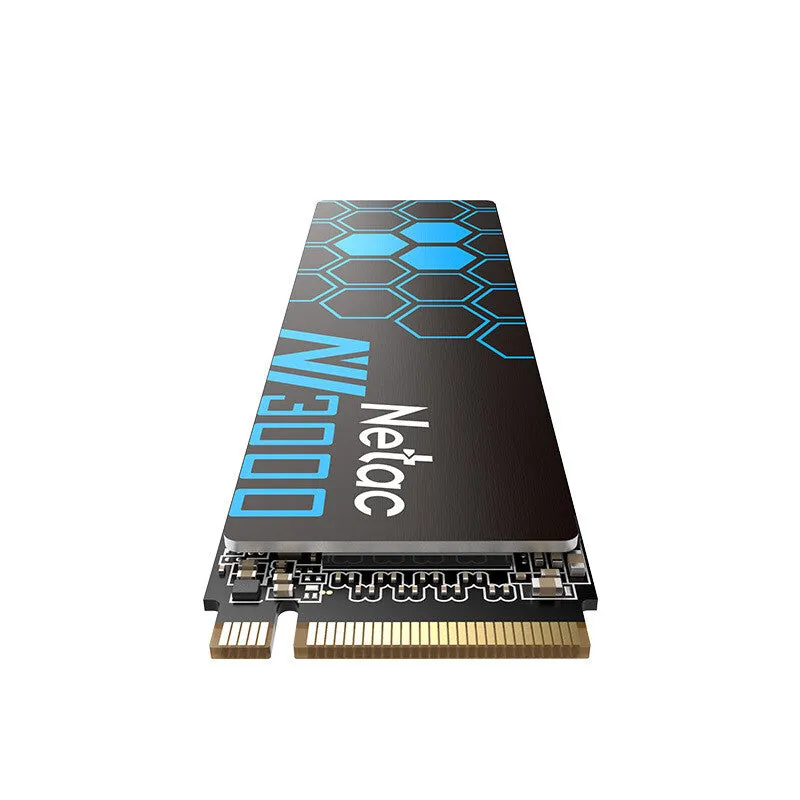

Netac NV3000 1 TB M.2 PCI Express 3.0 NVMe 3D NAND
- NVMe M.2 PCIe Gen3 *4 interface
- Read/write speed up to 3400/2900MB/s
- Supports S.M.A.R.T./TRIM Command/NCQ
- Compact M.2 2280 form factor
Netac NV3000
Extraordinary speed, Better and Faster
Super high-speed with 3300MB/s
Selected chips, Stable operation
Adopt new generation of 3D NAND Flash adopts vertical stacking unit structure, which also supports LDPC intelligent error correction at the same time
Two features boost performance
Equipped with HMB (host memory buffering technology) and SLC Cache technology, intelligently optimize cache space and greatly improve storage operation efficiency
Slimmer and powerful
Slimmer, compatible with desktop, all-in-one, and notebook devices, and easy to upgrade and speed up
| Features | |
|---|---|
| TBW rating | 600 |
| Protection features | Shock resistant |
| Mean time between failures (MTBF) | 2000000 h |
| ECC | Yes |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| PCI Express CEM revision | 3.0 |
| PCI Express interface data lanes | x4 |
| M.2 key ID | M |
| Sequential write speed (ATTO) | 2900 MB/s |
| Sequential read speed (ATTO) | 3400 MB/s |
| Random write (4KB) | 160000 IOPS |
| Random read (4KB) | 220000 IOPS |
| Target workload | Mixed Use (MU) |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Component for | PC/Laptop |
| Memory type | 3D NAND |
| NVMe version | 1.4 |
| NVMe | Yes |
| Interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| SSD capacity | 1 TB |
| Power | |
|---|---|
| Operating voltage | 5 V |
| Weight & dimensions | |
|---|---|
| Weight | 8 g |
| Height | 2.9 mm |
| Depth | 80 mm |
| Width | 22 mm |
| Operational conditions | |
|---|---|
| Operating shock | 1500 G |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating temperature (T-T) | 0 – 70 °C |
