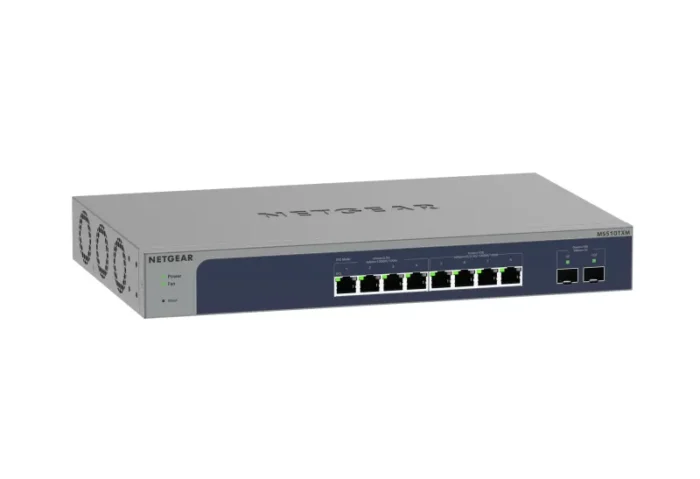

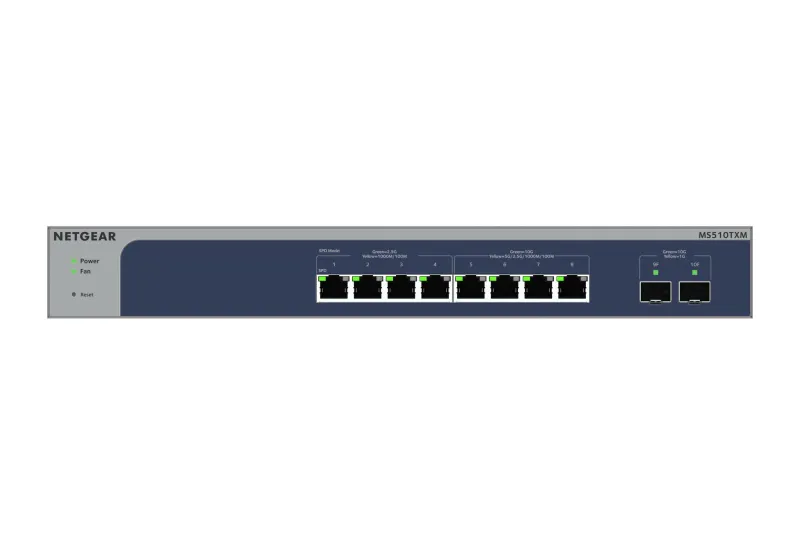

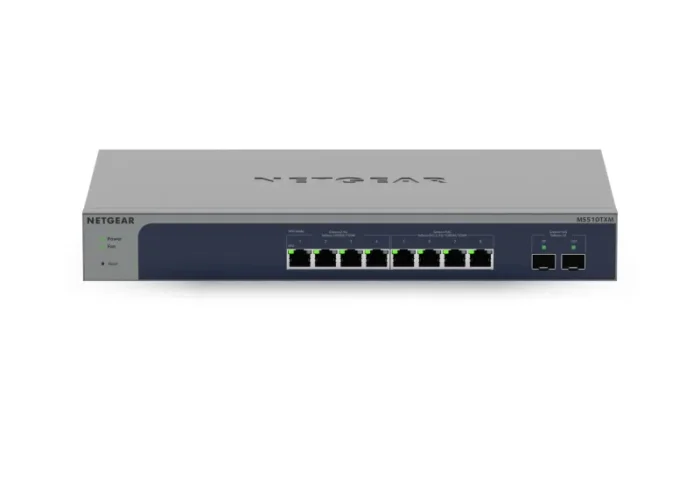

NETGEAR 8-Port Multi-Gigabit/10g Ethernet Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXM)
- Provides 4 ports 1G/2.5G and 4 ports multi-gig/10G with 2 dedicated 10 Gigabit fiber ports for WiFi 6 Access Point connectivity, IP surveillance and mobility
- Easy-to-use web browser-based management GUI with configurable L2/L2+ network features like VLANs and QoS
- 10G speed on regular ports and uplink connectivity to core network
- Includes 1-year of Insight Premium or Pro subscription
- Managed by NETGEAR Insight – ideal with other NETGEAR Insight managed devices
- Provides an industry-leading Limited Lifetime warranty at no extra cost with product registration
NETGEAR Smart Managed Pro Switches with Optional Remote/Cloud Management
The NETGEAR® MS510TXM 8-Port Multi-Gigabit/10G Smart Managed Pro Switch offers 4 ports 1G/2.5G and 4 ports multi-gig/10G with 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. MS510TXM can be managed remotely by NETGEAR Insight and includes 1-year of Insight Premium or Pro subscription with purchase.
– Multi-speed Ethernet ports for flexible and auto-adaptive wired connectivity of multi-Gigabit devices.
– 2-port 10G SFP+ Fiber uplinks (1G/10GBASE-X fiber SFP+).
– Quiet desktop operation or rack mounting.
– Layer 3 static routing with 32 routes (IPv4 and IPv6).
– Easy-to-use Web browser-based management GUI.
– NETGEAR Insight Cloud management activation (1-Year Insight subscription is included).
– Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings.
| Management features |
| System event log |
Yes |
| Web-based management |
Yes |
| Cloud-managed |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2+ |
| Switch type |
Managed |
| Ports & interfaces |
| SFP+ module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
| Number of VLANs |
256 |
| VLAN support |
Yes |
| Broadcast storm control |
Yes |
| Port mirroring |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
| Data transmission |
| Packet buffer memory |
2 MB |
| Jumbo frames |
10000 |
| Jumbo frames support |
Yes |
| Number of queues |
8 |
| Switching capacity |
140 Gbit/s |
| MAC address table |
32000 entries |
| Security |
| Queue scheduling algorithms |
WRR+SP |
| Password protection |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCPv6 snooping |
| Multicast features |
| Number of multicast groups filtered |
256 |
| Multicast support |
Yes |
| Design |
| Number of fans |
2 fan(s) |
| LED indicators |
Activity, Fan fail, Link, Power, Speed |
| Product colour |
Grey |
| Rack mounting |
Yes |
| Performance |
| Mean time between failures (MTBF) |
1059519 h |
| Firmware upgradeable |
Yes |
| Noise level |
25 dB |
| Flash memory |
64 MB |
| Internal memory |
256 MB |
| Processor frequency |
1000 MHz |
| Built-in processor |
Yes |
| Power |
| Power consumption (max) |
47 W |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Heat dissipation |
160.458 BTU/h |
| Non-operating altitude |
0 – 3000 m |
| Operating altitude |
0 – 3000 m |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
0 – 95% |
| Storage temperature (T-T) |
-20 – 70 °C |
| Operating temperature (T-T) |
0 – 50 °C |
| Weight & dimensions |
| Weight |
2.08 kg |
| Height |
43 mm |
| Depth |
206 mm |
| Width |
330 mm |
| Packaging content |
| User guide |
Yes |
| Cables included |
AC |
| Packaging data |
| Rack rails |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
