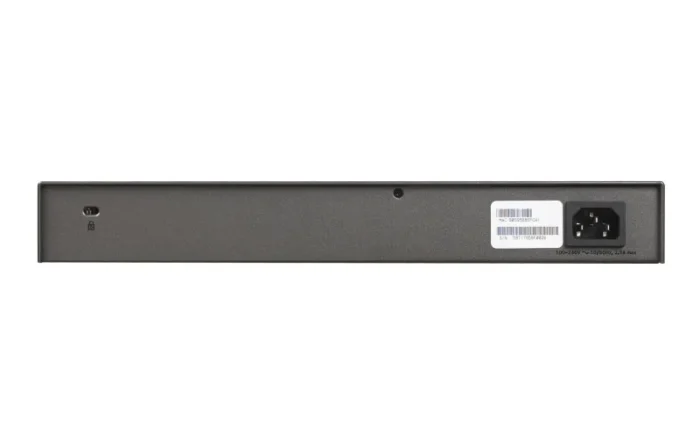

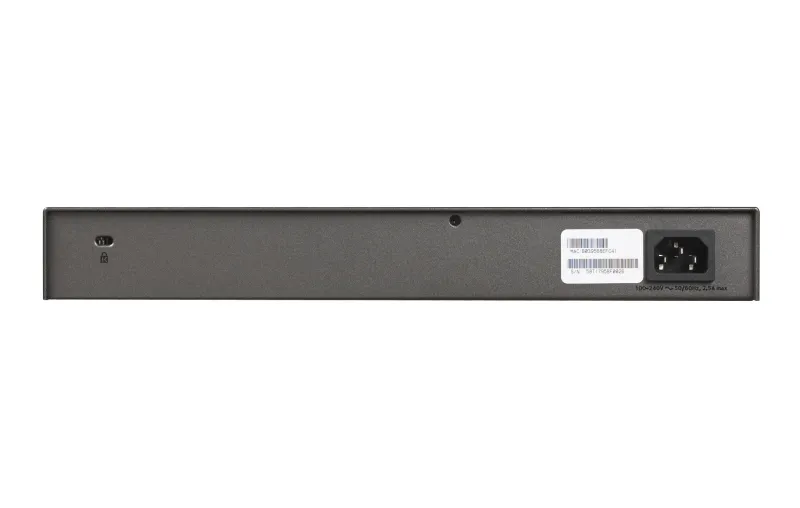

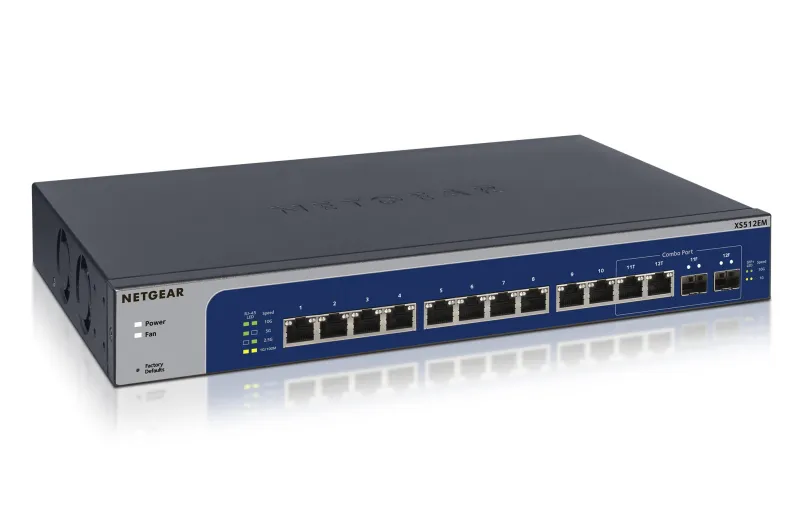

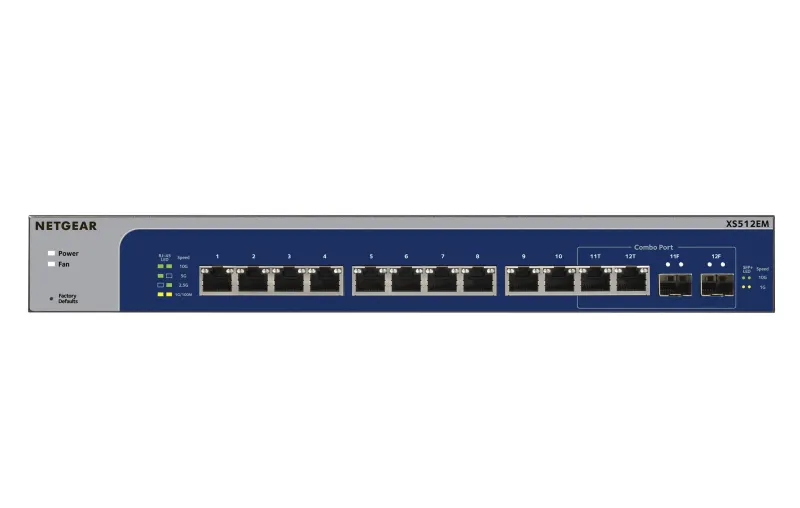

NETGEAR XS512EM Managed L2 10G Ethernet (100/1000/10000) 1U Blue, Grey
- Managed L2
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 12
- 10G support
- MAC address table: 32000 entries Switching capacity: 240 Gbit/s
- 1U Rack mounting
Unlock your Network Potential with 10-Gigabit/Multi-Gigabit 5-Speed Networking Switches
Revolutionary 5-speed 10-Gigabit/Multi-Gigabit technology built in the NETGEAR multi-speed switches allows your devices to speed past the Gigabit barrier.
With the growth of virtualization, flash Storage, 4K videos , video streaming and IP surveillance, SMB networks need to extend beyond 1 Gigabit barrier. The 10-Gigabit/Multi-Gigabit Smart Managed Plus series from NETGEAR presents the right solution for this requirement; delivering unprecedented 10-Gigabit/Multi-Gigabit bandwith at an affordable cost.
Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that require less than 10-Gigabit, the XS512EM and XS724EM gives the exact speed required, no downgrade. Also, the new NETGEAR Multi-speed switch ports can be connected with regular Cat5E Ethernet cables, without the need to upgrade to Cat6/Cat6A wiring, therefore reducing wiring costs and hassle
| Management features |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
| Power connector |
DC-in jack |
| SFP+ module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity |
12 |
| Network |
| Number of VLANs |
64 |
| Virtual LAN features |
Port-based VLAN |
| VLAN support |
Yes |
| Broadcast storm control |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission |
| Packet buffer memory |
3 MB |
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Switching capacity |
240 Gbit/s |
| MAC address table |
32000 entries |
| Security |
| MAC address filtering |
Yes |
| IGMP snooping |
Yes |
| DHCP features |
DHCP client |
| Design |
| Number of fans |
2 fan(s) |
| LED indicators |
Yes |
| Product colour |
Blue, Grey |
| Form factor |
1U |
| Rack mounting |
Yes |
| Performance |
| Mean time between failures (MTBF) |
1113477 h |
| Power |
| Input current |
2 A |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Heat dissipation |
261.38 BTU/h |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
0 – 90% |
| Storage temperature (T-T) |
-20 – 70 °C |
| Operating temperature (T-T) |
0 – 50 °C |
| Weight & dimensions |
| Weight |
2.51 kg |
| Height |
43 mm |
| Depth |
204 mm |
| Width |
328 mm |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Certificates |
| Certification |
47 CFR FCC, ICES-003:2016, ANSI C63.4:2014, EN55032:2012+AC:2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2013, VCCI-CISPR32:2016, CNS 13438, IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013, UL 60950-1, EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, AS/NZS 60950.1:2015 CNS14336-1 |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
