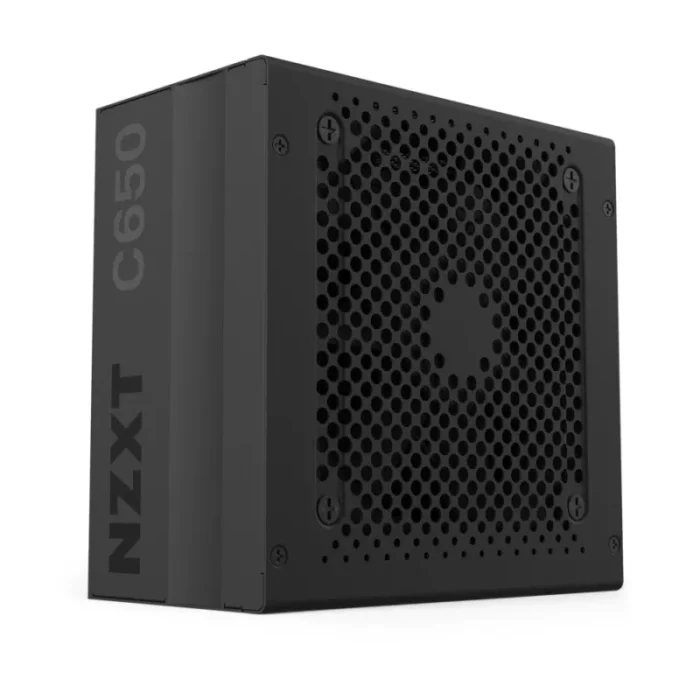

NZXT NP-C650M-UK power supply unit 650 W 24-pin ATX ATX Black
- 650 W 100 – 240 V 50 – 60 Hz
- Motherboard power connector: 24-pin ATX
- PC ATX 80 PLUS Gold
- Active 12 cm 0 – 420 RPM
- Black
The new C Series power supply from NZXT features safe, reliable power while ensuring optimal efficiency and quieter performance. Manufactured with high-quality components and backed by a 10-year warranty, the C Series power supplies deliver both peace of mind and clean, reliable power to your PC gaming system.

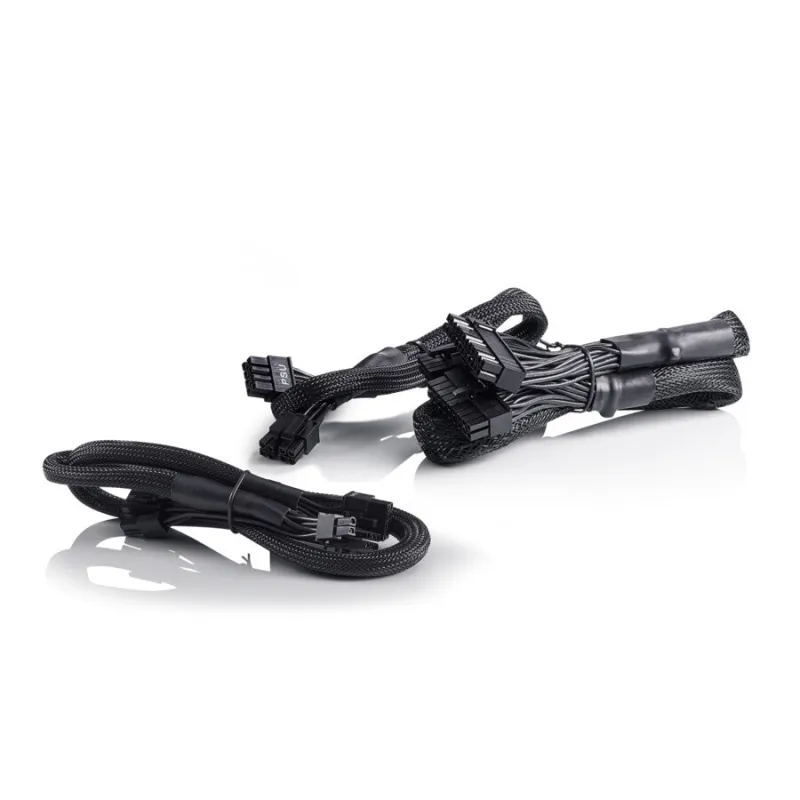

– The modular design lets you use only the cables you need, ensuring easier installation, and less clutter. The sleeved main cables look great and resist heat damage as well as fraying, delivering greater durability and longevity.

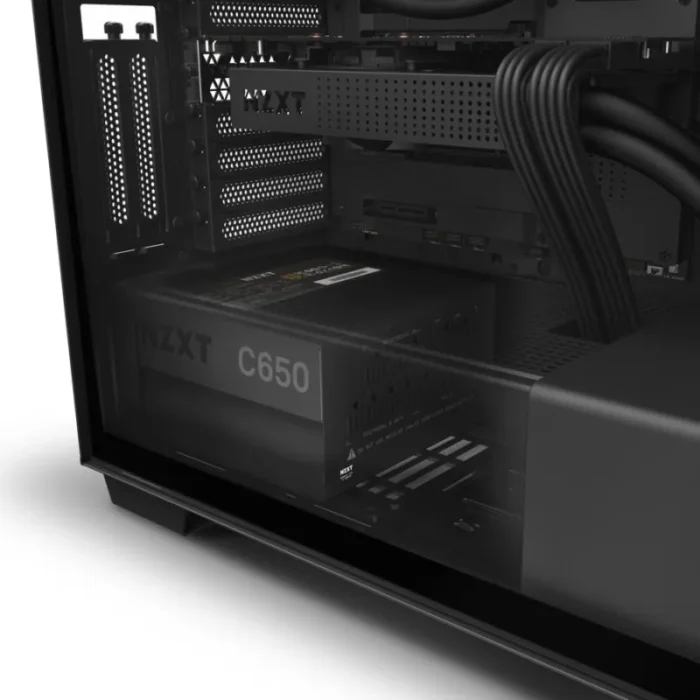

– The C series fits any case conforming to the ATX standard with the C650 supporting NVIDIA GPUs up to 3060 and AMD GPUs up to Vega 64.
– A push of a button enables Zero RPM Fan mode, silencing the fan under low-load conditions. When needed, the 120mm fluid-dynamic bearing fan spins up to efficiently cool the PSU, keeping your system stable and running through even the most intense gaming session.
– In addition to world-class service and support, NZXT provides a 10-year warranty for the C Series PSU, so you can enjoy a worry-free gaming experience.
| Power | |
|---|---|
| Efficiency | 87% |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 100 W |
| Combined power (+3.3V) | 100 W |
| Power Factor Correction (PFC) type | Active |
| Input current | 9 A |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Total power | 650 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| CPU power cable length | 65 cm |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power cable length | 75 cm |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power cable length | 500 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| SATA power cable length | 500 mm |
| Motherboard power connector | 24-pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Noise level | 32.3 dB |
| EPS version | 2.91 |
| ATX version | 2.4 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Fan speed | 0 – 420 RPM |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 50 °C |
| Certificates | |
|---|---|
| Certification | CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI / Australia RCM / EAC |
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Height | 86 mm |
| Depth | 150 mm |
| Width | 150 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
