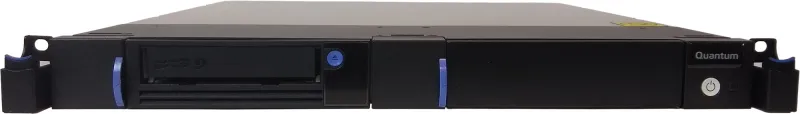

Quantum TC-L93CN-AR backup storage device Storage drive Tape Cartridge LTO
- Storage drive Tape Cartridge Black
- Serial Attached SCSI (SAS)
- Data storage type: LTO 2.5:1 1U
- Compressed capacity: 45 TB
- Mean time between failures (MTBF): 100000 h
- 33 W
As data continues to grow, and cyber threats continue to escalate, organizations need a simple and dependable way to keep data protected. Quantum’s LTO tape drives are an ideal solution for backing up small data sets to tape and are available in a variety of form factors to help you store, manage, and protect your data. Quantum LTO Tape Drives deliver fast, reliable data protection at an affordable price. They offer backup speeds up to 750 MB/sec** and when paired with an LTO-9 cartridge, you can store up to 45 TB** (compressed) of data on a single cartridge gaining more than 50% storage capacity in the same footprint. Quantum’s LTO cartridges or any LTO media, provide easily transportable backup storage for DR protection, and their AES 256-bit encryption makes sure that no one else can access, delete, or encrypt your data. The WORM-cartridge option provides an even higher level of security.
| Performance |
| Certification |
cNEMKOus (US and Canada), FCC (US), ICES (Canada) CE (Europe), UKCA (United Kingdom), Bauart (Germany), Morocco (C-Mark), VCCI (Japan), KC (Korea), BSMI (Taiwan), RCM (AUSTRALIA/NEW ZEALAND) |
| Bundled software |
DATASTOR Shield Single-Server Backup |
| Compatible operating systems |
Windows only |
| Mean time between failures (MTBF) |
100000 h |
| Security algorithms |
256-bit AES |
| Product colour |
Black |
| Storage media types supported |
LTO-9 |
| Standard interfaces |
Serial Attached SCSI (SAS) |
| Form factor |
1U |
| Compression ratio |
2.5:1 |
| Data storage type |
LTO |
| Internal |
Yes |
| Interface |
Serial Attached SCSI (SAS) |
| Media type |
Tape Cartridge |
| Product type |
Storage drive |
| Storage |
| Compressed capacity |
45 TB |
| Data transmission |
| Sustained data transfer rate (native) |
300 MB/s |
| Data transfer rate |
12 Gbit/s |
| Power |
| Power consumption (typical) |
33 W |
| Weight & dimensions |
| Weight |
6.4 kg |
| Height |
43 mm |
| Depth |
438 mm |
| Width |
480 mm |
| Packaging data |
| Package weight |
20 kg |
| Package height |
284 mm |
| Package depth |
599 mm |
| Package width |
876 mm |
| Operational conditions |
| Storage relative humidity (H-H) |
20 – 80% |
| Operating relative humidity (H-H) |
20 – 50% |
| Storage temperature (T-T) |
15 – 35 °C |
| Operating temperature (T-T) |
15 – 25 °C |
| Other features |
| Cartridge load/Unload cycles |
80000 |
